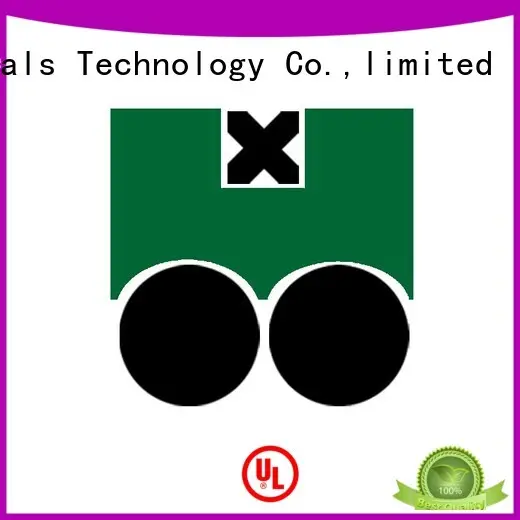

piston ptfe piston seals oring DMS Seal Manufacturer 1

piston ptfe piston seals oring DMS Seal Manufacturer 2

piston ptfe piston seals oring DMS Seal Manufacturer

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-30℃+200℃

Speed:

3m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. We can support OEM and ODM. pneumatic piston seals hydraulic piston seals sizes offered by DMS Seal Manufacturer are used for hydraulic piston seals.
2. The fame of DMS Seal Manufacturer is widely increasing for its high quality piston seals. Seal we produced has applications in a wide range of fields
3. hydraulic piston seals wins the market with its advantaged predominance of hydraulic cylinder piston seals. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals

Installation Recommendation

undefined

Installation Sizes

Groove Diameter DN H9		Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross Section	X-Ring Seal Cross Section
Standard Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	30MPa	d2	W
40 - 79.9	25 - 140	DN - 10.0	6.3	0.6	0.3	0.2	0.15	2.62	1.78
80 - 132.9	50 - 250	DN - 13.0	8.3	1.0	0.4	0.3	0.15	3.53	2.62
133 - 252.9	100 - 480	DN - 18.0	12.3	1.3	0.4	0.3	0.20	5.33	3.53
463 - 700	425 - 700	DN - 31.0	16.3	1.8	0.5	0.4	0.30	7.00	5.33

Application and properties

Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Available for piston accumulator, clamping cylinder and positioning cylinder, especially recommended for heavy duty and large diameter applications. Double safety with low friction and high elasticity, Low gas permeability, excellent sliding performance in high pressure applications, no crawling phenomenon, simple groove structure, easy installation.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

X-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-30℃+200℃	3 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimension
d h9	D1 H9	L1+0.2	Order No.	O-Ring Dimension
40 42 45	30 32 35	6.3 6.3 6.3	DAQ2-40306.3 DAQ2-42326.3 DAQ2-45356.3	29.822.62 31.422.62 34.59*2.62
48 50 52	38 40 42	6.3 6.3 6.3	DAQ2-48386.3 DAQ2-50406.3 DAQ2-52426.3	37.772.62 39.342.62 40.94*2.62
55 60 63	45 50 53	6.3 6.3 6.3	DAQ2-55456.3 DAQ2-60506.3 DAQ2-63536.3	44.122.62 48.902.62 52.07*2.62
65 70 75	55 60 65	6.3 6.3 6.3	DAQ2-65556.3 DAQ2-70606.3 DAQ2-75656.3	53.642.62 58.422.62 63.17*2.62
80 85 90	67 72 77	8.3 8.3 8.3	DAQ2-80678.3 DAQ2-85728.3 DAQ2-90778.3	66.273.53 69.443.53 75.79*3.53
95 100 105	82 87 92	8.3 8.3 8.3	DAQ2-95828.3 DAQ2-100878.3 DAQ2-105928.3	78.973.53 85.323.53 91.67*3.53
110 115 120	97 102 107	8.3 8.3 8.3	DAQ2-110978.3 DAQ2-1151028.3 DAQ2-1201078.3	94.843.53 101.193.53 104.37*3.53
125 130 135	112 117 117	8.3 8.3 12.3	DAQ2-1251128.3 DAQ2-1301178.3 DAQ2-13511712.3	110.723.53 113.893.53 113.67*5.33
140 150 160	122 132 142	12.3 12.3 12.3	DAQ2-14012212.3 DAQ2-15013212.3 DAQ2-16014212.3	120.025.33 129.545.33 139.07*5.33

Installation Dimensions
