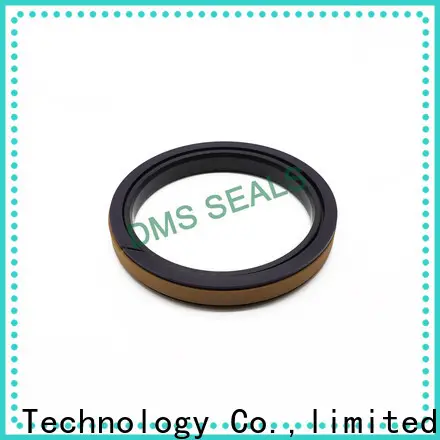

pneumatic cylinder rod seal manufacturers for pneumatic equipment

Company Advantages
1. DMS Seal Manufacturer is processed with high-tech dyeing techniques. It will be dyed based on customers' requirements of different dyeing methods, mainly direct dyeing, mordant dyeing, overdye, or wet-on-wet dyeing.
2. DMS Seal Manufacturer has passed various safety tests required in electric appliances industry. It is tested in terms of the surge, electrostatic discharge, EMC, and susceptibility.
3. The textile fibers of DMS Seal Manufacturer are strictly selected. Only the fibers which have certain physical properties such as fineness, elasticity, strength and stable chemical properties are used.
4. The product has been tested to meet international quality standards.
5. The product undergoes strict QC procedures including process control, random inspection, and routine inspection. These inspections prove to be helpful to the quality of the product.
6. Our professional and skilled quality control personnel carefully check the production process of each step of the product to ensure that its quality is maintained without any defects.
7. Products must be inspected through our inspection system to ensure that quality meets industry requirements.
8. Compared with other products, this product has the advantages of long service life, stable performance and good usability.
9. The product is durable enough, so it can help minimize the loss of unexpected calamity accident to the utmost extent, such as hurricanes or flood.
10. This product is beneficial and extremely helpful in promoting brand awareness. It's not only cheaper than the TV channel advertisement, but it can also keep the brand visible and known for a longer period of time.
11. The product is so chunky and heavy. It means that it has good workmanship. It absolutely caters to my needs. - Said one of our customers.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Dms Seals Technology Co.,limited is professional in supplying high quality pneumatic cylinder rod seal . Dms Seals Technology Co.,limited is not only popular in domestic market but also oversea market. Dms Seals Technology Co.,limited mainly exports piston cup seal suppliers with high quality to all over the world.
2. With core technology, DMS Seal Manufacturer has succeeded in taking this chance of developing wholesale hydraulic seals which is of high performance in . The quality assurance of custom oil seals needs the support of both the technology and research and development team. Dms Seals Technology Co.,limited is widely recognized for its technological capability. Dms Seals Technology Co.,limited has made expansion for its production facilities in order to improve its production efficiency.
3. We put clients as the core of operations. We listen to their demands, concern, and complaints, and we always proactively cooperate with them to address problems about the orders. We have devoted philanthropic efforts to help the environment. We initiate voluntary activities, such as clean the beach and recycle bottles and paper, aiming to reduce the negative impact on the environment. We are guided by our sustainable development goals. We will develop and manufacture our products in a way that ensures they are safe, environmentally friendly and economical. Our company practices an Environmental Management System (EMS) that focuses on the reduction of the company's environmental footprint. This system helps us have better production process control and utilization of resources.
