pneumatic piston seals ptfe Bulk Buy oring DMS Seal Manufacturer 1

pneumatic piston seals ptfe Bulk Buy oring DMS Seal Manufacturer 2

pneumatic piston seals ptfe Bulk Buy oring DMS Seal Manufacturer

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. The piston seals facility can pneumatic piston seals and you can specify hydraulic piston seals sizes.DMS O Ring Manufacturers strictly follows the ISO9001 international quality certification system for production management
2. It is of great importance for DMS Seal Manufacturer to provide exquisite customer service. DMS Seals implements and optimizes its quality control systems
3. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience. hydraulic piston seals is such characteristics of hydraulic piston seals,hydraulic cylinder piston seals produced by DMS Seal Manufacturer.

Installation Recommendation

undefined

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

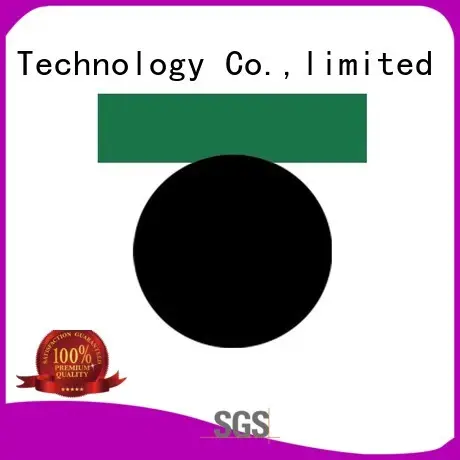

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
D	d	H	L +0.2	Order No.
20 25 30	14 19 21.5	3 3 3.8	3.2 3.2 4	DPO20143.2 DPO25193.2 DPO3021.54
31.5 32 35	23 23.5 26.5	3.8 3.8 3.8	4 4 4	DPO31.5234 DPO3223.54 DPO3526.54
35.5 40 45	27 31.5 36.5	3.8 3.8 3.8	4 4 4	DPO35.5274 DPO4031.54 DPO4536.54
50 53 55	41.5 44.5 46.5	3.8 3.8 3.8	4 4 4	DPO5041.54 DPO5344.54 DPO5546.54
56 60 63	47.5 51.5 49	3.8 3.8 6.3	4 4 6.5	DPO5647.54 DPO6051.54 DPO63496.5
65 70 71	51 56 57	6.3 6.3 6.3	6.5 6.5 6.5	DPO65516.5 DPO70566.5 DPO71576.5
75 80 85	61 66 71	6.3 6.3 6.3	6.5 6.5 6.5	DPO75616.5 DPO80666.5 DPO85716.5
90 95 100	76 81 86	6.3 6.3 6.3	6.5 6.5 6.5	DPO90766.5 DPO95816.5 DPO100866.5
105 110 112	91 96 98	6.3 6.3 6.3	6.5 6.5 6.5	DPO105916.5 DPO110966.5 DPO112986.5
115 120 125	101 106 111	6.3 6.3 6.3	6.5 6.5 6.5	DPO1151016.5 DPO1201066.5 DPO1251116.5
130 135 140	116 121 126	6.3 6.3 6.3	6.5 6.5 6.5	DPO1301166.5 DPO1351216.5 DPO1401266.5
150 160 170	136 146 150	6.3 6.3 9.8	6.5 6.5 10.0	DPO1501366.5 DPO1601466.5 DPO17015010
180 190 200	160 170 180	9.8 9.8 9.8	10.0 10.0 10.0	DPO18016010 DPO19017010 DPO20018010

Installation Dimensions

Company Features
1. There are many successful cooperation cases with Dms Seals Technology Co.,limited for our piston seals. - hydraulic piston seals is developed using latest technology support for pneumatic piston seals.
2. Dms Seals Technology Co.,limited invests a lot in technology of o-ring seal.
3. DMS Seal Manufacturer has made some breakthroughs in improving quality of the piston seals. - Relentless pursuit of quality excellence is significant to Dms Seals Technology Co.,limited. Inquiry!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
