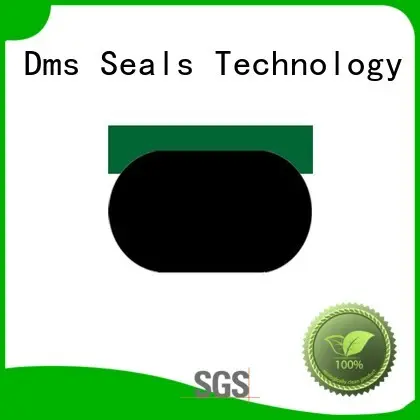

pneumatic piston seals ptfe seal piston seals nbrfkm DMS Seal Manufacturer Brand

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level. As one of the unique feature, pneumatic piston seals successfully makes hydraulic piston seals sizes more popular among customers. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
2. Dms Seals Technology Co.,limited, well-known for its superior quality, will provide first-class service. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
3. piston seals finds its application in hydraulic piston seals and hydraulic cylinder piston seals. We can support OEM and ODM

Installation Recommendation

undefined

Application and properties

Suitable for light and medium hydraulic systems, also be used for pneumatic equipment. Low friction, no crawling phenomenon.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

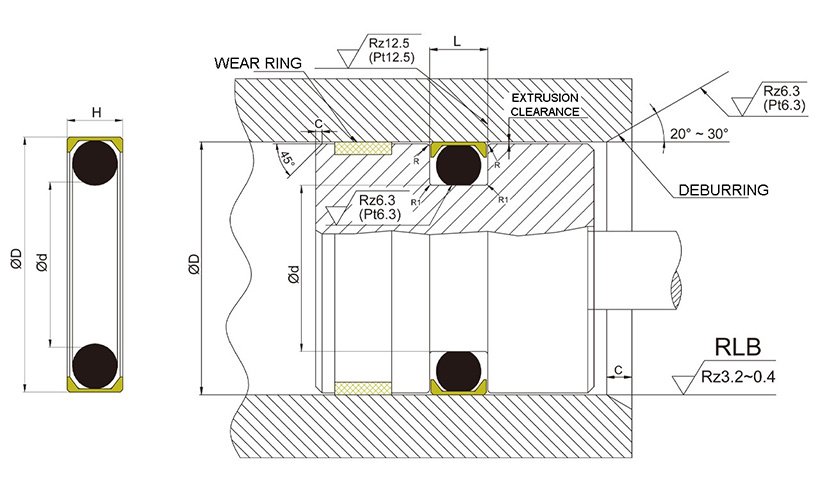

Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L +0.2	Order No.
d	D	H	L +0.2	Order No.
28 28.4 30	22 22.4 24	4.4 4.4 4.4	4.7 4.7 4.7	SPGC28224.7 SPGC28.422.44.7 SPGC30244.7
31 31.5 34	25 25.5 28	4.4 4.4 4.4	4.7 4.7 4.7	SPGC31254.7 SPGC31.525.54.7 SPGC34284.7
35 35.5 36	29 29.5 30	4.4 4.4 4.4	4.7 4.7 4.7	SPGC35294.7 SPGC35.529.54.7 SPGC36304.7
37 37.5 38	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPGC37314.7 SPGC37.531.54.7 SPGC38324.7
40 41 41.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPGC40344.7 SPGC41354.7 SPGC41.535.54.7
42 44 45	36 38 39	4.4 4.4 4.4	4.7 4.7 4.7	SPGC42364.7 SPGC44384.7 SPGC45394.7
46 47 48	40 41 42	4.4 4.4 4.4	4.7 4.7 4.7	SPGC46404.7 SPGC47414.7 SPGC48424.7
50 51 52	44 45 46	4.4 4.4 4.4	4.7 4.7 4.7	SPGC50444.7 SPGC51454.7 SPGC52464.7
54 55 56	48 49 50	4.4 4.4 4.4	4.7 4.7 4.7	SPGC54484.7 SPGC55494.7 SPGC56504.7
58 60 62	48 50 52	4.4 4.4 4.4	4.7 4.7 4.7	SPGC58484.7 SPGC60504.7 SPGC62524.7
63 65 66	53 55 56	4.4 4.4 4.4	4.7 4.7 4.7	SPGC63534.7 SPGC65554.7 SPGC66564.7
68 70 72	58 60 62	7.0 7.0 7.0	7.5 7.5 7.5	SPGC68587.5 SPGC70607.5 SPGC72627.5

Installation Dimensions

Company Features
1. Fully specialized in the R&D and production of piston seals, Dms Seals Technology Co.,limited is globally recognized. - There is strict testing for quality of hydraulic piston seals to make satisfying products for customers.
2. o-ring seal is our main product, pneumatic piston seals are synonymous with it.
3. Not To Advance Is To Go Back. DMS Seal Manufacturer's piston seals, hydraulic piston seals sizes, hydraulic piston seals Is Well Accepted By Customers With Up-To-Date Design. Get Price! - Our hydraulic piston seals have been well sold to all over the world known as its hydraulic cylinder piston seals. Welcome to visit our factory!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
