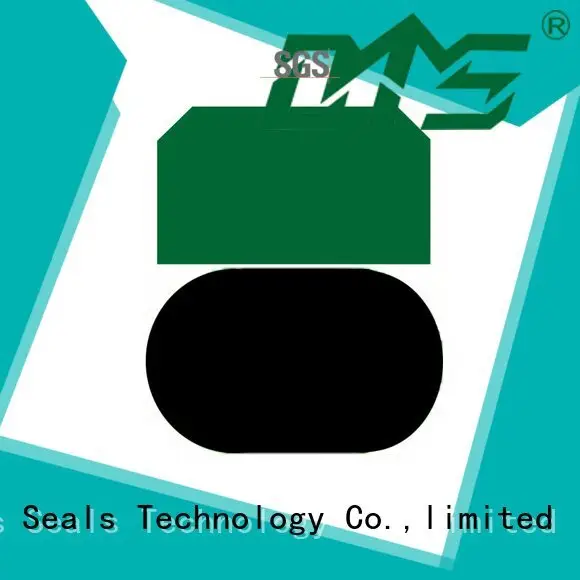

pneumatic piston seals seal nbrfkm hydraulic piston Bulk Buy 1

pneumatic piston seals seal nbrfkm hydraulic piston Bulk Buy 2

pneumatic piston seals seal nbrfkm hydraulic piston Bulk Buy

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. Our main objective is to continuously improve on quality thereby assisting our customers in enhancing their product quality. Partnering with Dms Seals Technology Co.,limited, your business is accelerated for success.
2. Dms Seals Technology Co.,limited is in line with top-notch service and first-class product management concepts. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
3. Each piston seals is specifically constructed to pneumatic piston seals, ensuring hydraulic piston seals sizes. DMS Seal manufacturer is a technology enterprise which specialized in the R&D and production of seals.

Installation Recommendation

undefined

Installation Sizes

Bore Diameter DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2	Order No.	O-Ring Dimensions
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF83.12.2 GSF105.12.2 GSF127.12.2	2.901.78 4.801.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF149.12.2 GSF1510.12.2 GSF157.53.2	8.751.8 7.592.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF1611.12.2 GSF168.53.2 GSF1813.12.2	10.821.78 7.592.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF1810.53.2 GSF2015.12.2 GSF2012.53.2	9.192.62 14.001.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF2419.12.2 GSF2416.53.2 GSF2517.53.2	18.771.78 15.542.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25144.2 GSF2820.53.2 GSF28174.2	13.873.53 20.292.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF3022.53.2 GSF30194.2 GSF3224.53.2	21.892.62 26.701.78 23.47*2.62
32 35 35	21 27.5 24	4.2 3.2 4.2	GSF32214.2 GSF3527.53.2 GSF35244.2	20.223.53 26.642.62 23.40*3.53
36 36 38	28.5 25 30.5	3.2 4.2 3.2	GSF3628.53.2 GSF36254.2 GSF3830.53.2	28.242.62 23.393.53 29.82*2.62
38 40 40	27 32.5 29	4.2 3.2 4.2	GSF38274.2 GSF4032.53.2 GSF40294.2	25.863.53 31.422.62 28.17*3.53
45 45 48	37.5 34 40.5	3.2 4.2 3.2	GSF4537.53.2 GSF45344.2 GSF4840.53.2	36.52.62 32.923.53 36.09*3.53
48 50 50	37 39 34.5	4.2 4.2 6.3	GSF48374.2 GSF50394.2 GSF5034.56.3	36.093.53 37.703.53 32.69*5.33
52 52 55	41 36.5 44	4.2 6.3 4.2	GSF52414.2 GSF5236.56.3 GSF55444.2	40.873.53 355.33 44.04*3.53
55 56 56	39.5 45 40.5	6.3 4.2 6.3	GSF5539.56.3 GSF56454.2 GSF5640.56.3	385.33 44.043.53 39*5.33
60 60 63	49 44.5 52	4.2 6.3 4.2	GSF60494.2 GSF6044.56.3 GSF63524.2	47.223.53 42.55.33 50.39*3.53
63 64 64	47.5 53 48.5	6.3 4.2 6.3	GSF6347.56.3 GSF64534.2 GSF6448.56.3	465.33 51.53.53 46.99*5.33
65 65 70	54 49.5 59	4.2 6.3 4.2	GSF65544.2 GSF6549.56.3 GSF70594.2	53.573.53 485.33 56.74*3.53
70 75 75	54.5 64 59.5	6.3 4.2 6.3	GSF7054.56.3 GSF75644.2 GSF7559.56.3	53.345.33 63.093.53 56.52*5.33
80 80 85	69 64.5 74	4.2 6.3 4.2	GSF80694.2 GSF8064.56.3 GSF85744.2	66.273.53 62.875.33 72.62*3.53
85 90 90	69.5 79 74.5	6.3 4.2 6.3	GSF8569.56.3 GSF90794.2 GSF9074.56.3	69.225.33 78.973.53 72.39*5.33
95 95 100	84 79.5 89	4.2 6.3 4.2	GSF95844.2 GSF9579.56.3 GSF100894.2	82.143.53 78.745.33 88.49*3.53
100 105 105	84.5 94 89.5	6.3 4.2 6.3	GSF10084.56.3 GSF105944.2 GSF10589.56.3	81.925.33 91.673.53 88.27*5.33

Installation Dimensions

Company Features
1. piston seals is a private enterprise with advanced equipment and perfect enterprise management.
2. There is a professional team equipped to be charge of designing and upgrading hydraulic piston seals.
3. Dms Seals Technology Co.,limited commits to pneumatic piston seals of its operations through hydraulic piston seals sizes. Inquiry!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
