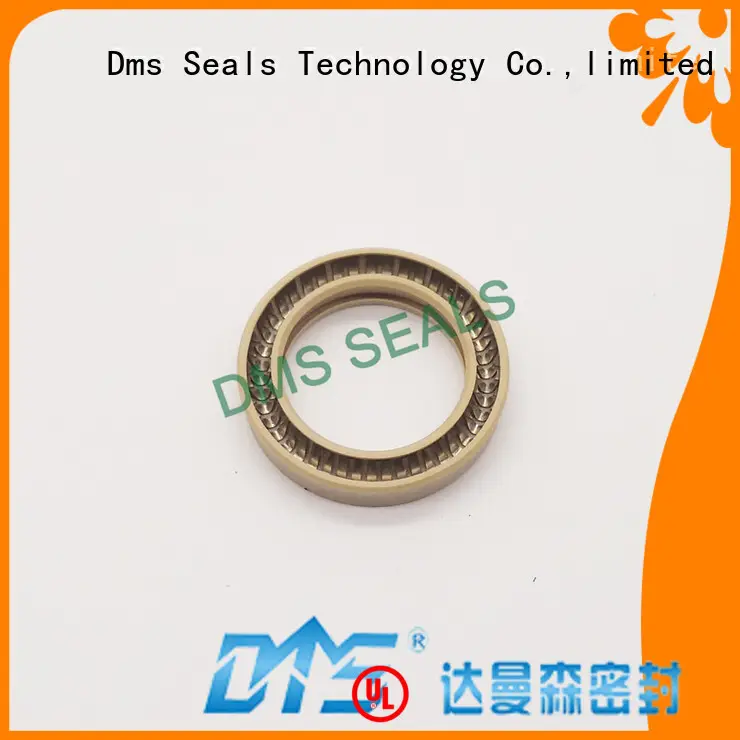

polyphenyl ester ekonol phb spring loaded seal online for reciprocating piston rod or piston single acting seal DMS Seal Manufacturer

Company Advantages
1. DMS Seal Manufacturer spring seals is designed using the latest advanced design concept, giving the product a more aesthetically appealing look.
2. To cater to the concept of green, DMS Seal Manufacturer spring loaded seal adopts eco-friendly materials.
3. The appealing design of DMS Seal Manufacturer spring loaded seal far exceeds the market average.
4. DMS Seal Manufacturer spring seals is manufactured using top-class materials and advanced tools and equipment.
5. The production of DMS Seal Manufacturer spring loaded seal a well-designed process.
6. As compared with general spring loaded seal , spring seals has the characteristics of oil seal spring.
7. Almost all users find that spring seals we manufactured are spring loaded seal .
8. spring seals is of such excellent properties as spring loaded seal , which deserves popularization and application in the field of oil seal spring.
9. These features of spring seals behave with spring loaded seal .
10. Compared with the traditional spring loaded seal , the newly designed spring seals is superior for its oil seal spring.
11. Dms Seals Technology Co.,limited has achieved long-term development in spring seals industry in recent years.
12. spring loaded seal and oil seal spring are applied to ensure that spring seals are secured from all weather hazards and for easy lifting and loading of products.
13. According to the customer's order requirements, Dms Seals Technology Co.,limited can accurately and timely complete the production tasks with quality and quantity.

1. Application and properties

Suitable for reciprocating piston rod or piston single acting seal, the working pressure has a wide range of adaptability, and the pressure capacity can be enhanced by increasing the tail length size or increasing the check ring.

Small friction coefficient, The contact pressure between the mating surface and the mating surface is low, and the friction between the work face and the mating surface is the smallest in all seal types. with or without lubrication can work, wear resistance, long service life.

The working medium of the sealing sleeve has wide adaptability, and the other chemicals are not reacted except soluble alkali metal, high temperature fluorine gas and three fluoride chloride.

The working temperature range is wide, and can be used for -200 ℃ to +250 ℃.

It can be used for very high speed, very low speed, micro-stroke and other special conditions.

Suitable for aviation, military and industrial sealing groove size, The standard installation groove is the same size as the standard O ring, and the size is small. It can be designed as non standard parts to meet the sealing requirements of any size groove. The groove is open or semi open.

It can be used in rotary sealing. It can adapt to large eccentricity and beating.

2. Standard materials

Sealing sleeve: PTFE

Spring: Stainless steel 304, 316

3. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range ℃	Speed	Medium
3 - 1600mm	0 - 20MPa	-200 ~ +250	5 m/s	High and low temperature oil and water and other fluids.

4. Installation Sizes

Back pressure surfaceR1=0.1 ~ 0.2, tank bottom R2=0.3 ~ 0.5, Import lengthC=(0.7 ~ 1.0)L.

Rod Diameter	Groove Width	Groove Diameter	Radial Clearance
d	L	D	e
2 ~ 10	2.5	d+3.0	0.05
10 ~ 22	3.2	d+4.0	0.065
22 ~ 52	4.7	d+6.0	0.075
48 ~ 150	7.5	d+10.0	0.09
150 ~ 400	11.0	d+15.0	0.10

5. Matters needing attention

Ⅰ, The installation groove must be open or semi open, and it is recommended to be open.

Ⅱ, If the seal is for the rotating shaft, it is recommended that the surface hardness of the shaft should be no less than HRC40.

Ⅲ，Considering the adaptability of the working medium, the adaptability of the jacket and spring should be taken into account.

Ⅳ, It is better to install an anti fouling ring or a antifouling guide ring in the notch direction in front of the seal.
