power seal pistons with nbr or fkm o ring for light and medium hydraulic systems 1

power seal pistons with nbr or fkm o ring for light and medium hydraulic systems 2

power seal pistons with nbr or fkm o ring for light and medium hydraulic systems

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+200℃

Speed:

1m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Product Comparison

Dms Seals pays great attention to integrity and business reputation. We strictly control the quality and production cost in the production. All these guarantee Oil Seal Manufacturer to be quality-reliable and price-favorable.Compared with other products in the same category, Oil Seal Manufacturer has the following competitive advantages.

Application Scope

Dms Seals's Oil Seal Manufacturer is widely applicable in the Printers Tablet PC Stands industry.Dms Seals provides comprehensive and reasonable solutions based on customer's specific situations and needs.

Company Advantages
1. The inspections of DMS Seals are conducted at each step. For examples, it has been checked on shrinkage, size, and shapes, flawlessness, symmetry, and cleanliness.
2. The manufacture of DMS Seals involves several stages. These include prototype design, cutting and forming metal, soldering, casting, polishing, and final assembling.
3. DMS Seals has undergone a range of comprehensive tests. It has been tested for tension, flammability, corrosion, wear & tear, and longevity.
4. The product is not susceptible to environmental elements. It has passed various environmental tests including wet, dry, hot, cold, vibration, acceleration, IP rating, UV light, etc.
5. The product is able to yield the best results in the shortest time. It can perform tasks at a high speed while maintaining its consistency.
6. This product feels soft and has many other amazing qualities such as hypoallergenic material and moisture wicking & anti-microbial fabric.
7. Dms Seals Technology Co.,limited is proud of its longstanding leadership in innovation and quality.
8. This product far exceeds the similar competitive products in the market.
9. The product provides distinct competitive advantages.
10. Dms Seals Technology Co.,limited has formulated the strict quality control system and the operation flow.

Installation Recommendation

undefined

Application and properties

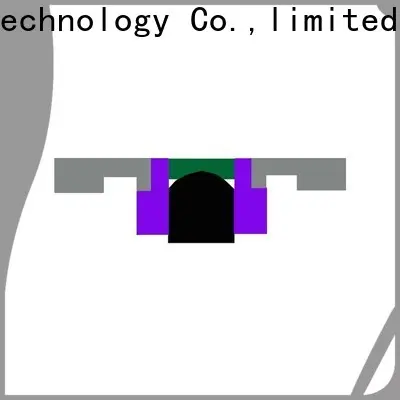

Apply to cylinder piston, consisting of a seal ring, an O-Ring, a pair of retaining rings and a pair of guide sleeves. The seal ring and cylinder bore conforming to be a symmetric section to achieve the sealing performance, with double acting sealing performance.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: filled PTFE / PA

Guide ring: filled PTFE / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+200℃	1 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

D	d	b	d2	d3	a	c	f	e	Order No.
40 45 50	26 31 34	32 32 39	32 37 42	36 41 46	3.5 3 3	15.5 15.5 20.5	8.25 8.25 9.25	7 7 7	DDKK402632 DDKK453132 DDKK503439
56 60 63	40 44 47	39 39 39	48 52 55	52 56 59	3 3 3	20.5 20.5 20.5	9.25 9.25 9.25	7 7 7	DDKK564039 DDKK604439 DDKK634739
65 70 75	49 54 59	39 39 39	57 62 67	61 66 71	3 3 3	20.5 20.5 20.5	9.25 9.25 9.25	7 7 7	DDKK654939 DDKK705439 DDKK755939
80 85 90	62 67 72	43 43 43	72 77 82	76 81 86	3 3 3	22.5 22.5 22.5	10.25 10.25 10.25	7 7 7	DDKK806243 DDKK856743 DDKK907243
95 100 105	77 82 87	43 43 43	87 92 97	91 96 101	3 3 3	22.5 22.5 22.5	10.25 10.25 10.25	7 7 10	DDKK957743 DDKK1008243 DDKK1058743
110 115 120	92 97 102	43 43 43	102 107 112	106 111 116	3 3 3	22.5 22.5 22.5	10.25 10.25 10.25	10 10 10	DDKK1109243 DDKK1159743 DDKK12010243
125 130 140	103 108 118	53 53 53	115 120 130	121 126 136	4 4 4	26.5 26.5 26.5	13.25 13.25 13.25	10 10 10	DDKK12510353 DDKK13010853 DDKK14011853
150 160 165	128 138 143	53 53 57	140 150 155	146 156 161	4 4 6	26.5 26.5 26.5	13.25 13.25 15.25	10 10 10	DDKK15012853 DDKK16013853 DDKK16514357
170 180 190	148 158 165	57 57 64	160 170 180	166 176 186	6 6 4.5	26.5 26.5 31.5	15.25 15.25 16.25	10 10 10	DDKK17014857 DDKK18015857 DDKK19016564
195 200 210	170 175 185	64 64 71	185 190 200	191 196 206	4.5 4.5 8	31.5 31.5 31.5	16.25 16.25 19.75	10 10 12	DDKK19517064 DDKK20017564 DDKK21018571

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited provides custom service of power seal pistons to meet the various needs of customers. Dms Seals Technology Co.,limited is among the first professional manufacturers in China. With the technological advantages, Dms Seals Technology Co.,limited has experienced rapid development in the rubber piston seal market. Dms Seals Technology Co.,limited is China's best excellent provider for a long time.
2. We have expanded our business across the world. After years of exploration, we distribute our products to our customers around the world with the help of our sales network. Our factory enjoys a favorable geographic position and convenient transportation. This strategic location helps us to connect businesses competently along with a record of reliable and quality products that meet customers’ requirements. Our people are experts in product creation. They are used to making multidisciplinary methods. Fast, professional, competent and knowledgeable, they let us offer the best. Our company has professional designers. Leavened by their experience, they can piece together physics and materials science to create the best product performance.
3. Dms Seals Technology Co.,limited aims to fully introducing its hydraulic seals companies into international markets. Please contact. Dms Seals Technology Co.,limited will continue to pay attention to business models and promote innovative spirit. Please contact. Dms Seals Technology Co.,limited is always creative in providing solutions for customers' gaining benefits. Please contact.

power seal pistons with nbr or fkm o ring for light and medium hydraulic systems

power seal pistons

Type:

power seal pistons with nbr or fkm o ring for light and medium hydraulic systems 8

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
