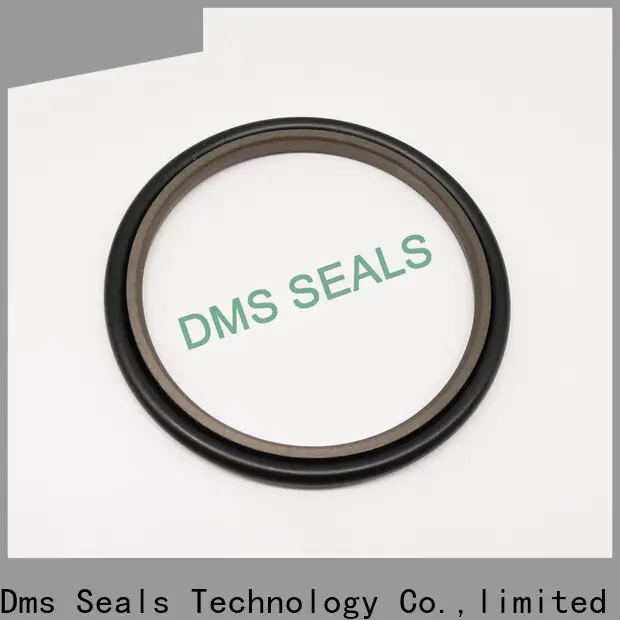

ptfe china mechanical seal manufacturers glyd ring for piston and hydraulic cylinder

Company Advantages
1. DMS Seal Manufacturer is made under powerful productivity with excellent equipment and advanced technology.
2. DMS Seal Manufacturer is made as per international industry standards.
3. DMS Seal Manufacturer china mechanical seal manufacturers is made by our experienced workers adopting with our advanced technology.
4. The materials of DMS Seal Manufacturer china mechanical seal manufacturers is high quality as they are manufactured on standardizarion production line.
5. Our qualified team effectively controls this high quality product by implementing the quality control system.
6. The complete detection of this product ensures its higher quality in the market.
7. It has gone through stringent test based on certain quality parameters.
8. Dressing this product will be a good way to show off the wearers. It can significantly help express people's taste or style.
9. The product, with high practical values, also embraces high artistic connotation and aesthetic function which satisfy people's mental pursuit.
10. The product guarantees highly desirable comfort and minimizes the stress put on the sole during walking, standing, and at rest.
11. The product helps people avoid health problems of feet, such as fungal-infected feet diseases that may further cause skin infection.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter                         dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-255.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation.

Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
dN h9	D1 H9	L1+0.2
4 5 6	8.9 9.9 10.9	2.2 2.2 2.2	GSJ4*8.9*2.2 GSJ5*9.9*2.2 GSJ6*10.9*2.2	5.28*1.78 6.75*1.78 7.65*1.78
8 8 10	12.9 15.3 14.9	2.2 3.2 2.2	GSJ8*12.9*2.2 GSJ8*15.3*3.2 GSJ10*14.9*2.2	9.25*1.78 10.77*2.62 11.8*1.78
10 12 12	17.3 16.9 19.3	3.2 2.2 3.2	GSJ10*17.3*3.2 GSJ12*16.9*2.2 GSJ12*19.3*3.2	12.37*2.62 13.3*1.78 13.94*2.62
14 14 15	18.9 21.3 19.9	2.2 3.2 2.2	GSJ14*18.9*2.2 GSJ14*21.3*3.2 GSJ15*19.9*2.2	15.6*1.78 15.54*2.62 16.67*1.78
15 16 16	22.3 20.9 23.3	3.2 2.2 3.2	GSJ15*22.3*3.2 GSJ16*20.9*2.2 GSJ16*23.3*3.2	17.12*2.62 17.17*1.78 18.72*2.62
18 18 19	22.9 25.3 29.7	2.2 3.2 4.2	GSJ18*22.9*2.2 GSJ18*25.3*3.2 GSJ19*29.7*4.2	18.77*1.78 20.29*2.62 23.39*3.53
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSJ20*27.3*3.2 GSJ20*30.7*4.2 GSJ22*29.3*3.2	21.89*2.62 23.39*3.53 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited is a china mechanical seal manufacturers supplier that is pioneering in China and famous in the world. The professionalism in manufacture of industrial rubber seal helps Dms Seals Technology Co.,limited gradually stabilize the market. DMS Seal Manufacturer brand is famous for its first-rate inflatable seal manufacturer and superlative service. Dms Seals Technology Co.,limited has been focused on the field of seal kit suppliers for many years.
2. Dms Seals Technology Co.,limited strictly adopts high technology to ensure the quality of mechanical engineering seal . The quality of the seals gaskets suppliers is totally guaranteed. Dms Seals Technology Co.,limited has a strong technology force to produce hydraulic seals distributors . DMS Seal Manufacturer attaches great importance to the value of technical power. Dms Seals Technology Co.,limited owns several patents.
3. Dms Seals Technology Co.,limited will continue to increase its competitiveness in the split oil seal manufacturer market, making it stand out in the market. Get quote! Dms Seals Technology Co.,limited will continue to strive for excellence. Get quote! Dms Seals Technology Co.,limited will provide unwavering quality industrial oil seals . Get quote!
