ptfe hydraulic rod rod seals DMS Seal Manufacturer Brand company

Diameter Range:

6-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃ +200℃

Speed:

1.5 m/s

Medium:

general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

Inquiry

Company Advantages
1. DMS Seals provides professional design and production of high-grade o-ring seals. hydraulic rod seals piston rod seal offered by DMS Seal Manufacturer are used for hydraulic rod seals online.
2. The fame of DMS Seal Manufacturer is widely increasing for its high quality rod seals. To reduce costs with high-efficiency work is the DMS's purpose
3. Seal we produced has applications in a wide range of fields. hydraulic rod seals,rod seal catalogue is reliable for our clients.
4. We are engaged in offering Humidifiers, which are used for both industrial and household applications. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
5. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level. O Ring Manufacturers,pneumatic rod seals is flexible which can be adjusted by different circumstances.

Installation Recommendation

undefined

Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
6-1600mm	0-35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

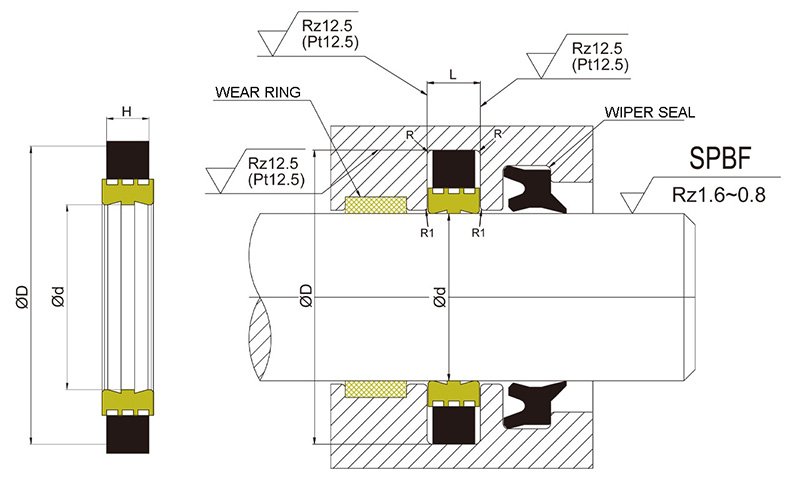

Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2	Order No.
18 20 22	27 29 31	4.3 4.3 4.3	4.5 4.5 4.5	SPN18274.3 SPN20294.3 SPN22314.3
27 31.5 47	36 40.5 60	4.3 4.3 7.3	4.5 4.5 7.5	SPN27364.3 SPN31.540.54.3 SPN47607.3
53 60 65	66 73 78	7.3 7.3 7.3	7.5 7.5 7.5	SPN53667.3 SPN60737.3 SPN65787.3
70 75 80	83 88 93	7.3 7.3 7.3	7.5 7.5 7.5	SPN70837.3 SPN75887.3 SPN80937.3
90 100 110	103.4 113.4 123.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN90103.47.3 SPN100113.47.3 SPN110123.47.3
120 130 140	133.4 143.4 153.4	7.3 7.3 7.3	7.5 7.5 7.5	SPN120133.47.3 SPN130143.47.3 SPN140153.47.3
