ptfe hydraulic seal metric bonded seals DMS Seal Manufacturer Brand

Company Advantages
1. Apart from this, we also offer bonded seals as per the clients’ specific requirements. To reduce costs with high-efficiency work is the DMS's purpose
2. With the range of bonded seals catalogue, we have gained enormous appreciation in the market as a reputed manufacturer and supplier. DMS Seals provides professional design and production of high-grade o-ring seals
3. For bonded seals, unit price and estimated ship dates will be calculated when the length and quantity are specified. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience.
4. DMS Seal Manufacturer bonded seals catalogue improves metric bonded seals from having a bonded seals supplier component. DMS Seals implements and optimizes its quality control systems.
5. In the highly competitive market, Dms Seals Technology Co.,limited has always maintained a high sense of responsibility and a high level of management. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
6. DMS Seal manufacturer provides good quality and competitive price hydraulic seals. DMS Seal Manufacturer has perfect quality assurance systems and after-sale service measures.

1. Applicability

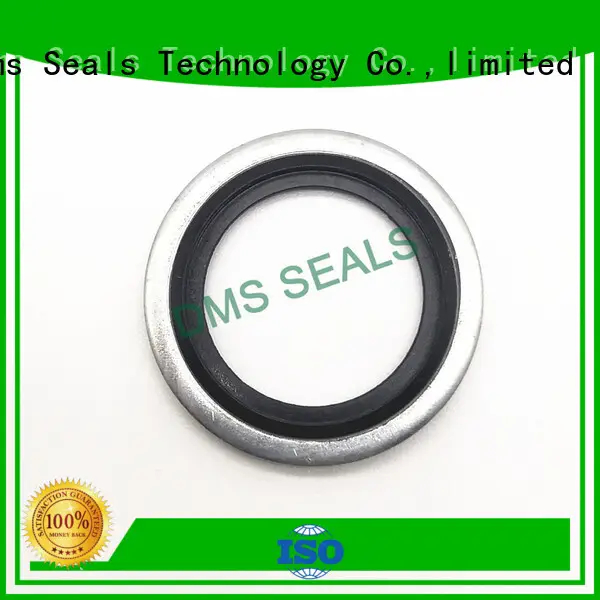

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. Dms Seals Technology Co.,limited is a reliable supplier and manufacturer of bonded seals. - Dms Seals Technology Co.,limited has earned a high reputation for its high quality bonded seals catalogue.
2. Dms Seals Technology Co.,limited is equipped with strong research strength, having an R&D team dedicated to developing all types of new bonded seals. - Strict quality control throughout all stages of production enables us to guarantee customer satisfactions.
3. DMS Seal Manufacturer insists on development concept of metric bonded seals to be an eye-catching enterprise. Check it! - A best customer experience is an assurance for DMS Seal Manufacturer to be a leading bonded seals catalogue manufacturer. Check it!
