ptfe o-ring seal with ptfe nbr and pom for sale 1

ptfe o-ring seal with ptfe nbr and pom for sale 2

ptfe o-ring seal with ptfe nbr and pom for sale

Diameter Range:

3-1600mm

Pressure Range:

0-45MPa

Temperature Range:

-30℃+100℃

Speed:

1m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. The entire production process of DMS Seal Manufacturer hydraulic cylinder piston seals strictly follows the international norms. We have developed solutions of the sealing of special working condition
2. People will find the advantages of this product: excellent quality, well-fitting, and the color is as bright as the picture. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
3. This product has the required safety. The dyes used for its fabrics are treated to be free of damaging chemicals that would possibly cause harm to the human body. Quality control of the seals is the basis for DMS Seals
4. The product stands out for its stable operation. Since it is mainly controlled by microcomputers, it can run stably without any break. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience

Installation Recommendation

undefined

Installation Sizes

D H8	d h9	L+0.2	H
˂96	D-16.3	8	7.5
96-190	D-20	10	9.5
191-380	D-28	13	12.5
381-1000	D-36	20	19.5

Application and properties

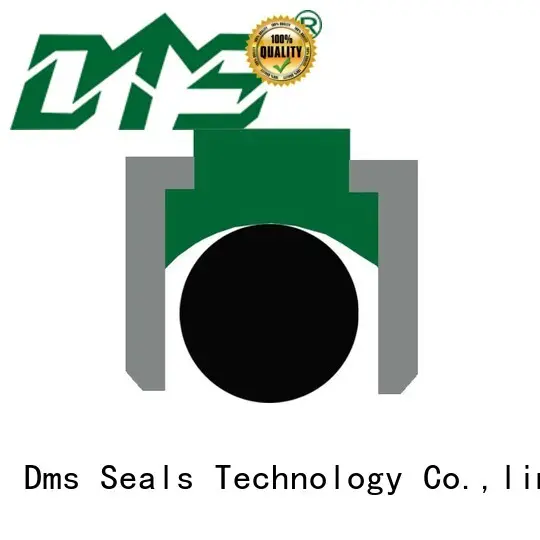

Apply to hydraulic piston sealing, Consisting of a seal ring, two L-shaped POM back-up rings and an acting force O-Ring. The back-up ring acts as a support and guide to ensure a tight sealing environment. High wear resistance, low friction, no crawling phenomenon, easy installation.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-45MPa	-30℃+100℃	1 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

D H8	d h9	H	L	e	Order No.
40 45 50	23.2 28.2 33.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA4023.27.5 DGDA4528.27.5 DGDA5033.27.5
56 63 65	39.2 46.2 48.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA5639.27.5 DGDA6346.27.5 DGDA6548.27.5
70 75 80	53.2 58.2 63.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA7053.27.5 DGDA7558.27.5 DGDA8063.27.5
85 90 95	68.2 73.2 78.2	7.5 7.5 7.5	8 8 8	7 7 7	DGDA8568.27.5 DGDA9073.27.5 DGDA9578.27.5
100 105 110	80 85 90	9.5 9.5 9.5	10 10 10	10 10 10	DGDA100809.5 DGDA105859.5 DGDA110909.5
115 120 125	95 100 105	9.5 9.5 9.5	10 10 10	10 10 10	DGDA115959.5 DGDA1201009.5 DGDA1251059.5
130 135 140	110 115 120	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1301109.5 DGDA1351159.5 DGDA1401209.5
145 150 155	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1451259.5 DGDA1501309.5 DGDA1551359.5
160 170 180	140 150 160	9.5 9.5 9.5	10 10 10	10 10 10	DGDA1601409.5 DGDA1701509.5 DGDA1801609.5
190 200 210	170 172 182	9.5 12.5 12.5	10 13 13	10 12 12	DGDA1901709.5 DGDA20017212.5 DGDA21018212.5
220 225 235	192 197 207	12.5 12.5 12.5	13 13 13	12 12 12	DGDA22019212.5 DGDA22519712.5 DGDA23520712.5

Installation Dimensions

Company Features
1. With years of concentrating on designing and manufacturing o-ring seal, Dms Seals Technology Co.,limited has been recognized as one of the most powerful manufacturers.
2. Dms Seals Technology Co.,limited has several advanced hydraulic piston seals production facilities.
3. We inspire corporate social responsibility through responsible behavior. We launch a foundation which mainly aims at philanthropy and social change work. This foundation is consist of our staff. Welcome to visit our factory!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
