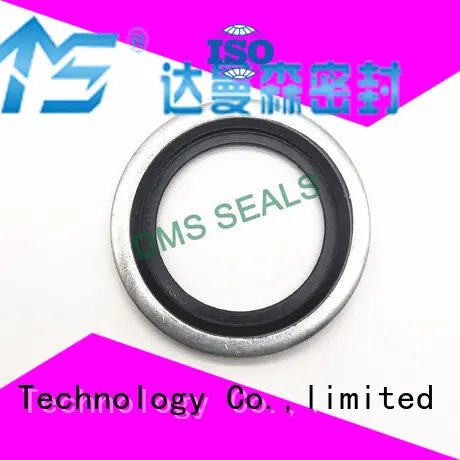

ptfe oring hydraulic seal bonded seals DMS Seal Manufacturer

Company Advantages
1. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians. Thanks to the unique design of metric bonded seals, we are proud to present DMS Seal Manufacturer products to customers all over the world. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
2. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system. we have the state-of-the-art assembly line ensure both the quality and efficiency.
3. To reduce costs with high-efficiency work is the DMS's purpose, DMS Seal Manufacturer Is A Professional Factory Which Manufactures Various Kinds Of High Quality bonded seals, bonded seals supplier.
4. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals. Owing to the advanced production line , our range is extensively known for high quality and reliability.

1. Applicability

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. Let DMS Seal Manufacturer build and manage a team of professionals for your business.
2. The Core Values of Dms Seals Technology Co.,limited is creating value for customers. Inquire online!
