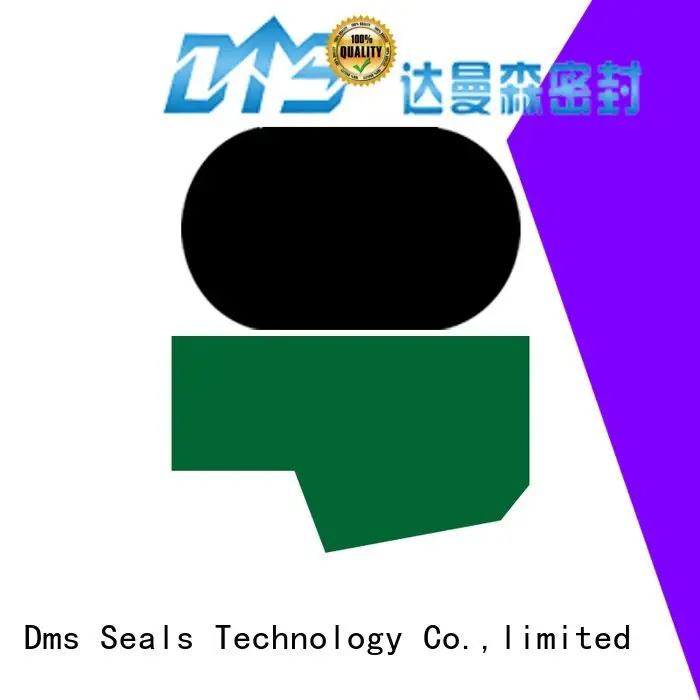

ptfe rod hydraulic DMS Seal Manufacturer hydraulic rod seals

Standard Application

Light Application

Heavy Duty Application

D1 H9

L1+0.2

R1

10MPa

20MPa

40MPa

d2

3-7.9

8-18.9

-

dN+4.9

2.2

0.4

0.3

0.20

0.15

1.78

8-18.9

19-37.9

-

dN+7.3

3.2

0.6

0.4

0.25

0.15

2.62

19-37.9

38-199.9

8-18.9

dN+10.7

4.2

1.0

0.4

0.25

0.20

3.53

38-199.9

200-255.9

19-37.9

dN+15.1

6.3

1.3

0.5

0.30

0.20

5.33

200-255.9

256-649.9

38-199.9

dN+20.5

8.1

1.8

0.6

0.35

0.25

7.00

256-649.9

650-999.9

200-255.9

dN+24.0

8.1

1.8

0.6

0.35

0.25

7.00

650-999.9

≥1000.0

256-649.9

dN+27.3

9.5

2.5

0.7

0.50

0.30

8.40

≥1000.0

-

650-999.9

dN+38.0

13.8

3.0

1.0

0.70

0.60

12.00

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

3-1600mm

0-60MPa

-45℃+200℃

15 m/s

hydraulic oil, flame retardant liquid,    water, gas

dN h9

D1 H9

L1+0.2

4
5
6

8.9
9.9
10.9

2.2
2.2
2.2

GSJ4*8.9*2.2
GSJ5*9.9*2.2
GSJ6*10.9*2.2

5.28*1.78
6.75*1.78
7.65*1.78

8
8
10

12.9
15.3
14.9

2.2
3.2
2.2

GSJ8*12.9*2.2
GSJ8*15.3*3.2
GSJ10*14.9*2.2

9.25*1.78
10.77*2.62
11.8*1.78

10
12
12

17.3
16.9
19.3

3.2
2.2
3.2

GSJ10*17.3*3.2
GSJ12*16.9*2.2
GSJ12*19.3*3.2

12.37*2.62
13.3*1.78
13.94*2.62

14
14
15

18.9
21.3
19.9

2.2
3.2
2.2

GSJ14*18.9*2.2
GSJ14*21.3*3.2
GSJ15*19.9*2.2

15.6*1.78
15.54*2.62
16.67*1.78

15
16
16

22.3
20.9
23.3

3.2
2.2
3.2

GSJ15*22.3*3.2
GSJ16*20.9*2.2
GSJ16*23.3*3.2

17.12*2.62
17.17*1.78
18.72*2.62

18
18
19

22.9
25.3
29.7

2.2
3.2
4.2

GSJ18*22.9*2.2
GSJ18*25.3*3.2
GSJ19*29.7*4.2

18.77*1.78
20.29*2.62
23.39*3.53

20
20
22

27.3
30.7
29.3

3.2
4.2
3.2

GSJ20*27.3*3.2
GSJ20*30.7*4.2
GSJ22*29.3*3.2

21.89*2.62
23.39*3.53
23.47*2.62

22
25
25

32.7
32.3
35.7

4.2
3.2
4.2

GSJ22*32.7*4.2
GSJ25*32.3*3.2
GSJ25*35.7*4.2

26.57*3.53
26.64*2.62
29.74*3.53

28
30
32

38.7
40.7
42.7

4.2
4.2
4.2

GSJ28*38.7*4.2
GSJ30*40.7*4.2
GSJ32*42.7*4.2

31.34*3.53
34.52*3.53
36.09*3.53

35
36
38

45.7
46.7
53.1

4.2
4.2
6.3

GSJ35*45.7*4.2
GSJ36*46.7*4.2
GSJ38*53.1*6.3

37.69*3.53
40.87*3.53
43.82*5.33

40
40
42

50.7
55.1
57.1

4.2
6.3
6.3

GSJ40*50.7*4.2
GSJ40*55.1*6.3
GSJ42*57.1*6.3

44.04*3.53
43.82*5.33
46.99*5.33

45
45
50

55.7
60.1
60.7

4.2
6.3
4.2

GSJ45*55.7*4.2
GSJ45*60.1*6.3
GSJ50*60.7*4.2

47.22*3.53
50.17*5.33
53.57*3.53

50
55
56

65.1
70.1
66.7

6.3
6.3
4.2

GSJ50*65.1*6.3
GSJ55*70.1*6.3
GSJ56*66.7*4.2

56.52*5.33
59.69*5.33
59.92*3.53

56
56
60

71.1
76.5
75.1

6.3
8.1
6.3

GSJ56*71.1*6.3
GSJ56*76.5*8.1
GSJ60*75.1*6.3

59.69*5.33
62.87*6.99
66.04*5.33

63
63
65

73.7
78.1
75.7

4.2
6.3
4.2

GSJ63*73.7*4.2
GSJ63*78.1*6.3
GSJ65*75.7*4.2

66.27*3.53
69.22*5.33
69.44*3.53

65
70
70

80.1
80.7
85.1

6.3
4.2
6.3

GSJ65*80.1*6.3
GSJ70*80.7*4.2
GSJ70*85.1*6.3

69.22*5.33
72.62*3.53
75.57*5.33

70
75
75

90.5
85.7
90.1

8.1
4.2
6.3

GSJ70*90.5*8.1
GSJ75*85.7*4.2
GSJ75*90.1*6.3

78.74*6.99
78.97*3.53
78.74*5.33

80
80
80

90.7
95.1
100.5

4.2
6.3
8.1

GSJ80*90.7*4.2
GSJ80*95.1*6.3
GSJ80*100.5*8.1

82.14*3.53
85.09*5.33
88.27*6.99

85
85
85

95.7
100.1
105.5

4.2
6.3
8.1

GSJ85*95.7*4.2
GSJ85*100.1*6.3
GSJ85*105.5*8.1

88.49*3.53
91.44*5.33
91.44*6.99

90
90
90

100.7
105.1
110.5

4.2
6.3
8.1

GSJ90*100.7*4.2
GSJ90*105.1*6.3
GSJ90*110.5*8.1

94.84*3.53
95.5*5.33
97.79*6.99

95
95
100

105.7
110.1
110.7

4.2
6.3
4.2

GSJ95*105.7*4.2
GSJ95*110.1*6.3
GSJ100*110.7*4.2

98.02*3.53
100.97*5.33
104.37*3.53

100
100
105

115.1
120.5
120.1

6.3
8.1
6.3

GSJ100*115.1*6.3
GSJ100*120.5*8.1
GSJ105*120.1*6.3

104.14*5.33
107.32*6.99
110.49*5.33
