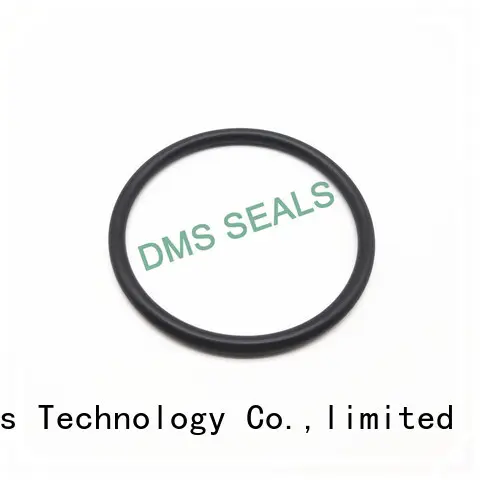

pu industrial o rings for business for static sealing

Company Advantages
1. The raw materials of DMS Seal Manufacturer are carefully selected. All its components or parts are made of sustainable and environmental-friendly materials which pose no risk to the environment.
2. The quality of DMS Seal Manufacturer is guaranteed by the cutting-edge quality testing machines. They are mainly continuous impact fatigue testing machine, flexing tester, and abrasion resistance tester, all of which can provide accurate testing results.
3. The flow chart of DMS Seal Manufacturer industrial o rings manufacturing is as followed: fit sample making, fabric cutting, cutting parts sorting or bundling, sewing, ironing, and laundering.
4. The product has good elongation. It has been tested under the stress-strain condition to check whether it will break with the increasing tensile load.
5. This product is hardly susceptible to noise pollution. It uses noise control technology, including sound insulation, sound absorption, shock absorption, and vibration isolation.
6. The product stands out for its good heat dissipation. Built-in latest cooling system with adequate airflow, it can work or stand by for a long time.
7. It has good chirality, including thickness compressibility, plane compressibility, self-flexural, resistance flexural, maintenance flexural and reflectance.
8. Users will enjoy a better night off realizing that this product will not cause skin problems and leaves an amazing touch to the skin.
9. Dms Seals Technology Co.,limited has an excellent-sales service system.
10. Dms Seals Technology Co.,limited has provided services for famous brands all over the world and has won wide acclaim.
11. Supported by ingenious team, DMS Seal Manufacturer has highly recommended service team.
12. industrial o rings is well sold in domestic markets.
13. The product has good competition capacity and a good development prospect.

1. Installation Recommendation

2. Application and properties

Double acting seals, the sealing effect is achieved by the deformation of the section of the O-Rings, and the deformation is determined by the depth of the installation groove. Under pressure, the O-ring has a large surface tension like liquid, used for static sealing more. It is only recommended for better conditions in dynamic applications. System lubrication, pressure, temperature, sealing clearance, speed, medium and surface quality of metal parts determine the service life of O-Rings. It is not recommended if the lubrication is not sufficient during rotary motion.

3. Standard materials

NBR / FKM

4. Performance parameter

	Static Seal	Dynamic Seal
Working Pressure	No support ring, up to 20MPa; With the support ring, up to 40MPa; With special support ring, up to 200MPa.	No support ring, up to 5MPa; With the support ring, higher pressure.
Movement Speed	Maximum reciprocating speed up to 0.5m / s; maximum rotation speed up to 2.0m/s.
Temperature	NBR: -30℃ - 100℃;  FKM: -20℃ - 220℃.

5. Wire Diameter Tolerance

Wire diameter of O-Ring (mm)	Tolerance (±mm)
0-1.8	0.08
1.80-2.65	0.09
2.65-3.55	0.10
3.55-5.30	0.13
5.30-7.00	0.15
7.00-8.00	0.18
8.00-10.00	0.21
10.00-12.00	0.25



6. Inner diameter tolerance

Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm	Inner Diameter d1 mm	Tolerance ±mm
0.70-2.50 2.50-4.50 4.50-6.30	0.13 0.14 0.15	43.70-45.00 46.00-46.20 46.20-47.50	0.42 0.43 0.44	95.00-97.50 97.50-100.00 100.00-103.00	0.83 0.84 0.87
6.30-8.50 8.50-10.00 10.00-11.20	0.16 0.17 0.18	47.50-48.70 48.70-50.00 50.00-51.50	0.45 0.46 0.47	103.00-106.00 106.00-109.00 109.00-112.00	0.89 0.91 0.93
11.20-14.00 14.00-16.00 16.00-18.00	0.19 0.20 0.21	51.50-53.00 53.00-54.50 54.50-56.00	0.48 0.50 0.51	112.00-115.00 115.00-118.00 118.00-122.00	0.95 0.97 1.00
18.00-20.00 20.00-21.20 21.20-23.60	0.22 0.23 0.24	56.00-58.00 58.00-60.00 60.00-61.50	0.52 0.54 0.55	122.00-125.00 125.00-128.00 128.00-132.00	1.03 1.05 1.08
23.60-25.00 25.00-26.50 26.50-28.00	0.25 0.26 0.28	61.50-63.00 63.00-65.00 65.00-67.00	0.56 0.58 0.59	132.00-136.00 136.00-140.00 140.00-145-00	1.10 1.13 1.17
28.00-30.00 30.00-31.50 31.50-33.50	0.29 0.31 0.32	67.00-69.00 69.00-71.00 71.00-73.00	0.61 0.63 0.64	145.00-150.00 150.00-155.00 155.00-160.00	1.20 1.24 1.27
33.50-34.50 34.50-35.50 35.50-36.50	0.33 0.34 0.35	73.00-75.00 75.00-77.50 77.50-80.00	0.66 0.67 0.69	160.00-165.00 165.00-170.00 170.00-175.00	1.31 1.34 1.38
36.50-37.50 37.50-38.70 38.70-40.00	0.36 0.37 0.38	80.00-82.50 82.50-85.00 85.00-87.50	0.71 0.73 0.75	175.00-180.00 180.00-185.00 185.00-190.00	1.41 1.44 1.48
40.00-41.20 41.20-42.50 42.50-43.70	0.39 0.40 0.41	87.50-90.00 90.00-92.50 92.50-95.00	0.77 0.79 0.81	190.00-195.00 195.00-200.00 200.00-206.00	1.51 1.55 1.59
206.00-212.00 212.00-218.00 224.00-230.00	1.63 1.71 1.75	325.00-335.00 335.00-345.00 345.00-355.00	2.43 2.49 2.56	500.00-515.00 515.00-530.00 530.00-545.00	3.54 3.63 3.72
230.00-236.00 236.00-243.00 243.00-250.00	1.79 1.83 1.88	355.00-365.00 365.00-375.00 375.00-387.00	2.62 2.68 2.76	545.00-560.00 560.00-580.00 580.00-600.00	3.81 3.93 4.05
250.00-258.00 258.00-265.00 265.00-272.00	1.93 1.98 2.02	387.00-400.00 400.00-412.00 412.00-425.00	2.84 2.91 2.99	600.00-615.00 615.00-630.00 630.00-650.00	4.13 4.22 4.34
272.00-280.00 280.00-290.00 290.00-300.00	2.08 2.14 2.21	425.00-437.00 437.00-450.00 450.00-462.00	3.07 3.15 3.22	650.00-670.00	4.46
300.00-307.00 307.00-315.00 315.00-325.00	2.25 2.30 2.37	462.00-475.00 475.00-485.00 485.00-500.00	3.30 3.37 3.45

Company Features
1. Dms Seals Technology Co.,limited has been established for years. We are proud of our position as one of the leaders in the manufacture of industrial o rings . Dms Seals Technology Co.,limited is a reliable manufacturer. We have been involved in development and manufacture since for many years. Based in China, Dms Seals Technology Co.,limited is a fast-growing company specializing in the design and production of hydraulic o ring material . With a heritage of excellence for years, Dms Seals Technology Co.,limited has established an unrivaled reputation for the production of high-quality .
2. We have a powerful management team. With their strong leadership and professional industry knowledge, they can to make effective decisions and help promote our business growth. The factory is equipped with many international level quality testing facilities. We require all products must be 100% tested under these testing machines to ensure their functionality, reliability, security, and durability before shipment. Our company is globally engaged in product distribution. We have been expanding our client base across Asia, the Middle East, Russia, and Indian sub-continent. Our factory has a complete quality management system which provides specific requirements for equipment operation, technology, product inspection, and scrutinization. The greatest wealth for us is we have the young, energetic, passionate and up-and-coming R&D team. They develop new innovative products every quarter of the year which are popular among clients.
3. We aim to develop and maintain long-term relationships with our business partners based on openness, honesty, and trust. We seek to understand their business needs and aim to provide mutual support to ensure that sustainable business partnerships are established. We operate our business in a sustainable manner. We make efforts to reduce the unnecessary use of natural resources during our production. Our company seeks to create a positive impact and long-term value for our customers and the communities in which we work. We always think highly of upholding business ethics. In company-client cooperation, we can be regarded as a trusted partner because we protect clients' privacy.

pu industrial o rings for business for static sealing

industrial o rings

Type:
