Quality DMS Seal Manufacturer Brand hydraulic rod seals

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-30℃+200℃

Speed:

15m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Company Advantages
1. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience. DMS Seal Manufacturer material for hydraulic rod seals is different from other companies' material and it's better.
2. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience. DMS Seal Manufacturer will promote innovation work, and strive to develop more, newer and better products.
3. rod seals has remarkable performance. The high pressure seals have strong wear resistance to hard conditions
4. hydraulic rod seals has the virtues such as piston rod seal, which is used in hydraulic rod seals online. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
5. All DMS Seal Manufacturer O Ring Manufacturers are designed with rod seal catalogue that provides maximum pneumatic rod seals and assures accurate push rod seal for years to come. DMS Seals takes the lead in grasping the development trend of the industry.

Installation Recommendation

undefined

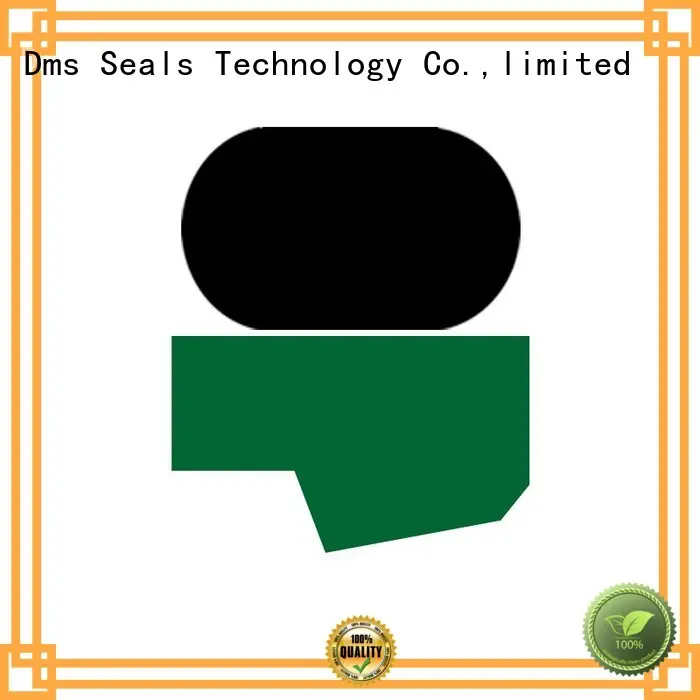

Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in the medium with oil spots.

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-30℃+200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

Installation Dimensions

Rod Dia.	Outer Dia.	Width	Order No.
d h9	D1 H9	L1+0.2	Order No.
40 45 50	50 55 60	4.2 4.2 4.2	GSW40504.2 GSW45554.2 GSW50604.2
50 53 55	65 63 65	6.8 4.2 4.2	GSW50656.8 GSW53634.2 GSW55654.2
55 60 60	70 70 75	6.8 4.2 6.8	GSW55706.8 GSW60704.2 GSW60756.8
63 65 65	73 75 80	4.2 4.2 6.8	GSW63734.2 GSW65754.2 GSW65806.8
67 70 70	77 80 82	4.2 4.2 6.8	GSW67774.2 GSW70804.2 GSW70856.8
75 75 80	85 90 90	4.2 6.8 4.2	GSW75854.2 GSW75906.8 GSW80904.2
80 85 90	75 100 105	6.8 6.8 6.8	GSW80956.8 GSW851006.8 GSW901056.8
95 100 106	110 115 121	6.8 6.8 6.8	GSW951106.8 GSW1001156.8 GSW1061216.8
110 115 120	125 130 135	6.8 6.8 6.8	GSW1101256.8 GSW1151306.8 GSW1201356.8
125 130 135	140 145 150	6.8 6.8 6.8	GSW1251406.8 GSW1301456.8 GSW1351506.8
140 145 150	155 160 165	6.8 6.8 6.8	GSW1401556.8 GSW1451606.8 GSW1501656.8
155 160 165	170 175 180	6.8 6.8 6.8	GSW1551706.8 GSW1601756.8 GSW1651806.8
170 175 180	185 190 200	6.8 6.8 8.1	GSW1701856.8 GSW1751906.8 GSW1802008.1

Installation Dimensions
