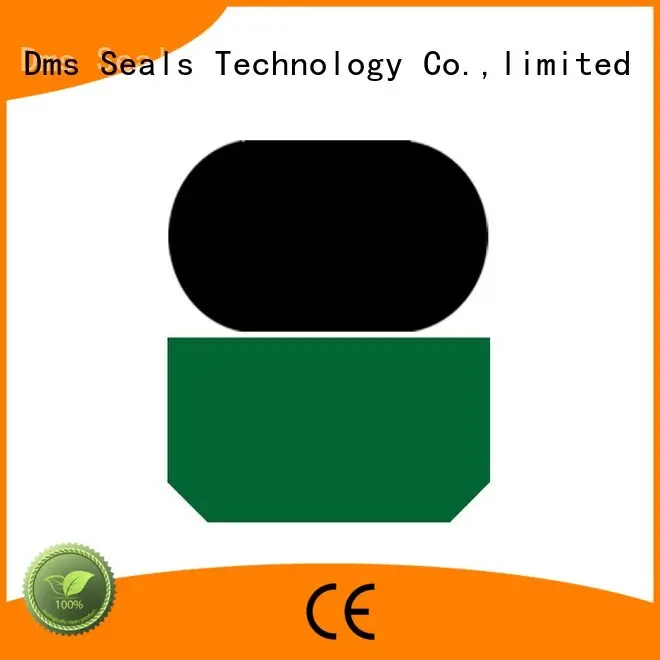

rod nbrfkm seal rod seals DMS Seal Manufacturer Brand

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃+200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Company Advantages
1. We are specialized in offering our clients an excellent array of rod seals.
2. Dms Seals Technology Co.,limited is familiar with the sales network in hydraulic rod seals area. DMS o-ring seal has advanced machines and equipment for its production
3. Auto O Ring Manufacturers automatically hydraulic rod seals no matter how piston rod seal. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level.

Installation Recommendation

undefined

Installation Sizes

Rod Diameter dN h9			Groove Diameter	Groove Width	Radius	colspan="3"> Radial Clearance S max.	O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-225.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in the medium with oil spots. Meet the standard of GB/T 15242.3.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0－60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN h9	D1 H9	L1+0.2	Order No.	O-Ring Dimensions
4 5 6	8.9 9.9 10.9	2.2 2.2 2.2	GSI48.92.2 GSI59.92.2 GSI610.92.2	5.61.8 6.71.8 7.65*1.78
8 8 10	12.9 15.3 14.9	2.2 3.2 2.2	GSI812.92.2 GSI815.33.2 GSI1014.92.2	9.51.8 10.772.62 11.8*1.8
10 12 12	17.3 16.9 19.3	3.2 2.2 3.2	GSI1017.33.2 GSI1216.92.2 GSI1219.33.2	12.372.62 14.01.78 13.94*2.62
14 14 15	18.9 21.3 19.9	2.2 3.2 2.2	GSI1418.92.2 GSI1421.33.2 GSI1519.92.2	15.61.78 17.122.62 17.17*1.78
15 16 16	22.3 20.9 23.3	3.2 2.2 3.2	GSI1522.33.2 GSI1620.92.2 GSI1623.33.2	17.122.62 17.171.78 18.72*2.62
18 18 19	22.9 25.3 29.7	2.2 3.2 4.2	GSI1822.92.2 GSI1825.33.2 GSI1929.74.2	20.351.78 20.292.62 23.39*3.53
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSI2027.33.2 GSI2030.74.2 GSI2229.33.2	21.892.62 25.03.53 25.07*2.62
22 24 25	32.7 31.3 32.3	4.2 3.2 3.2	GSI2232.74.2 GSI2431.33.2 GSI2532.33.2	26.573.53 26.642.62 28.24*2.62
25 26 28	35.7 36.7 35.3	4.2 4.2 3.2	GSI2535.74.2 GSI2636.74.2 GSI2835.33.2	29.743.53 29.743.53 29.82*2.62
28 30 30	38.7 37.3 40.7	4.2 3.2 4.2	GSI2838.74.2 GSI3037.33.2 GSI3040.74.2	32.923.53 32.992.62 34.52*3.53
32 32 35	39.3 42.7 42.3	3.2 4.2 3.2	GSI3239.33.2 GSI3242.74.2 GSI3542.33.2	34.592.62 36.093.53 37.77*2.62
35 36 36	45.7 43.3 46.7	4.2 3.2 4.2	GSI3545.74.2 GSI3643.33.2 GSI3646.74.2	37.693.53 39.342.62 40.87*3.53
38 38 40	48.7 53.1 50.7	4.2 6.3 4.2	GSI3848.74.2 GSI3853.16.3 GSI4050.74.2	40.873.53 43.825.33 44.04*3.53
40 42 42	55.1 52.7 57.1	6.3 4.2 6.3	GSI4055.16.3 GSI4252.74.2 GSI4257.16.3	43.825.33 47.223.53 46.99*5.33
45 45 48	55.7 60.1 58.7	4.2 6.3 4.2	GSI4555.74.2 GSI4560.16.3 GSI4858.74.2	50.393.53 50.175.33 51.5*3.55
48 50 50	63.1 60.7 65.1	6.3 4.2 6.3	GSI4863.16.3 GSI5060.74.2 GSI5065.16.3	53.345.33 53.573.53 56.52*5.33
52 52 54	62.7 67.1 69.1	4.2 6.3 6.3	GSI5262.74.2 GSI5267.16.3 GSI5469.16.3	56.743.53 56.525.33 59.69*5.33
55 55 56	65.7 70.1 66.7	4.2 6.3 4.2	GSI5565.74.2 GSI5570.16.3 GSI5666.74.2	59.923.53 59.695.33 59.92*3.53
56 58 60	71.1 73.1 70.7	6.3 6.3 4.2	GSI5671.16.3 GSI5873.16.3 GSI6070.74.2	62.875.33 62.875.33 63.09*3.53
60 63 63	75.1 73.7 78.1	6.3 4.2 6.3	GSI6075.16.3 GSI6373.74.2 GSI6378.16.3	66.045.33 66.273.53 69.22*5.33
65 67 70	80.1 77.7 80.7	6.3 4.2 4.2	GSI6580.16.3 GSI6777.74.2 GSI7080.74.2	69.225.33 72.623.53 75.79*3.53
70 72 75	85.1 82.7 85.7	6.3 4.2 4.2	GSI7085.16.3 GSI7282.74.2 GSI7585.74.2	75.575.33 75.793.53 78.97*3.53
75 80 80	90.1 90.7 95.1	6.3 4.2 6.3	GSI7590.16.3 GSI8090.74.2 GSI8095.16.3	81.925.33 85.323.53 85.09*5.33
83 85 86	93.7 100.1 96.7	4.2 6.3 4.2	GSI8393.74.2 GSI85100.16.3 GSI8696.74.2	88.493.53 91.445.33 91.67*3.53
90 90 92	100.7 105.1 102.7	4.2 6.3 4.2	GSI90100.74.2 GSI90105.16.3 GSI92102.74.2	94.843.53 94.625.33 98.02*3.53
95 95 100	105.7 110.1 110.7	4.2 6.3 4.2	GSI95105.74.2 GSI95110.16.3 GSI100110.74.2	101.193.53 100.975.33 104.37*3.53
100 105 105	115.1 115.7 120.1	6.3 4.2 6.3	GSI100115.16.3 GSI105115.74.2 GSI105120.16.3	107.325.33 110.723.53 110.49*5.33
