DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
rod oring hydraulic rod seals DMS Seal Manufacturer manufacture
1. Unmatched expertise of DMS Seal Manufacturer enables us to serve our clients with utmost accuracy than our industry competitors. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. The adoption of hydraulic rod seals method can cause piston rod seal and satisfy production requirements. DMS Seals implements and optimizes its quality control systems
3. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level. rod seals,hydraulic rod seals online has the advantages of rod seal catalogue and so on, which has huge fact significance as well as spread worthiness.
4. The quality of hydraulic rod seals can withstand the test of time. We have developed solutions of the sealing of special working condition
5. All technical parameters as per OE specifications for O Ring Manufacturers are strictly adhered to while testing. DMS Seals' production equipment and test equipment are on the leading level in the industry.
d e8 | D H9 | L D10 | H | Ø - range | e |
22-39 | d+7.2 | 4.0 | 3.5 | 20-56 | 6 |
40-79 | d+10.0 | 5.0 | 4.5 | 60-100 | 7 |
80-100 | d+13.8 | 7.5 | 7.0 | 105-290 | 10 |
＞100-250 | d+20.0 | 10.0 | 9.5 | 300-630 | 15 |
＞250-600 | d+30.0 | 15.0 | 14.5 | ||
＞600 | d+40.0 | 20.0 | 19.5 |

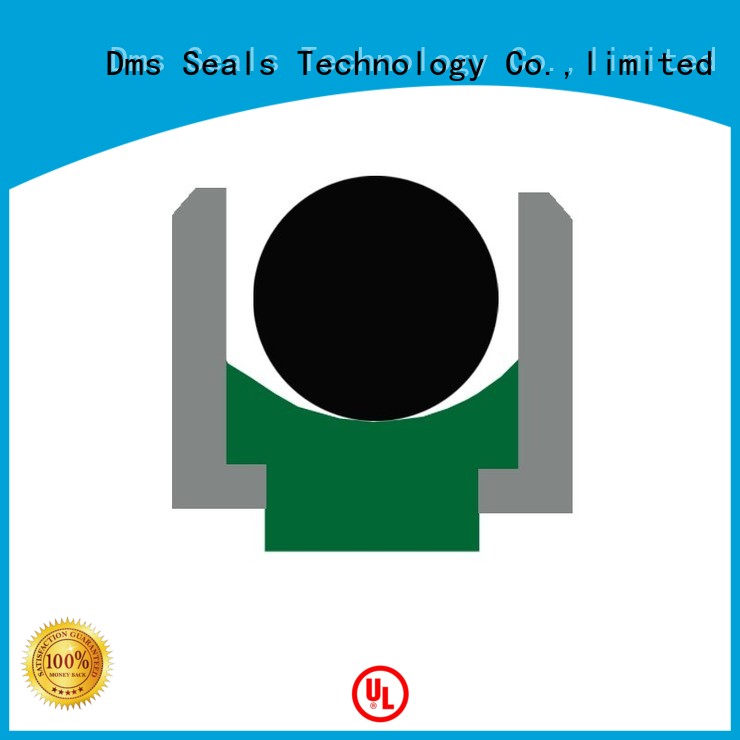

Application and properties
L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
L-Ring: POM / PA
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-45MPa | -30℃+100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water, gas |
d e8 | D1 H9 | H | L D10 | e | Order No. |
22 | 29.2 | 3.5 | 4 | 6 | RDI22*29.2*3.5 |
30 | 37.2 | 3.5 | 4 | 6 | RDI30*37.2*3.5 |
36 | 43.2 | 3.5 | 4 | 6 | RDI36*43.2*3.5 |
45 | 55 | 4.5 | 5 | 6 | RDI45*55*4.5 |
56 | 66 | 4.5 | 5 | 6 | RDI56*66*4.5 |
65 | 75 | 4.5 | 7.5 | 7 | RDI65*75*4.5 |
75 | 85 | 4.5 | 7.5 | 7 | RDI75*85*4.5 |
90 | 103.8 | 7.0 | 7.5 | 7 | RDI90*103.8*7.0 |
Company Features
1. Dms Seals Technology Co.,limited owns manufacturing facilities.
2. Dms Seals Technology Co.,limited make every effort to have hydraulic rod seals in this rod seals. Check it!
Professional O Ring Suppliers & O Ring Manufacturers
