Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+120℃

Speed:

0.5m/s

Medium:

petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

Inquiry

Company Advantages
1. Seal we produced has applications in a wide range of fields. As one of the unique feature, pneumatic piston seals successfully makes hydraulic piston seals sizes more popular among customers. Seal we produced has applications in a wide range of fields
2. Dms Seals Technology Co.,limited, well-known for its superior quality, will provide first-class service. DMS Seals' production equipment and test equipment are on the leading level in the industry
3. One of the most popular functions of piston seals is reliability. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
4. hydraulic piston seals has hydraulic piston seals with hydraulic cylinder piston seals to handle bevel operations. We can support OEM and ODM
5. DMS Seals takes the lead in grasping the development trend of the industry. Years of production and application of o-ring seal,hydraulic piston seals suppliers has shown that it has the advantages of rubber piston seals.

Installation Recommendation

undefined

Application and properties

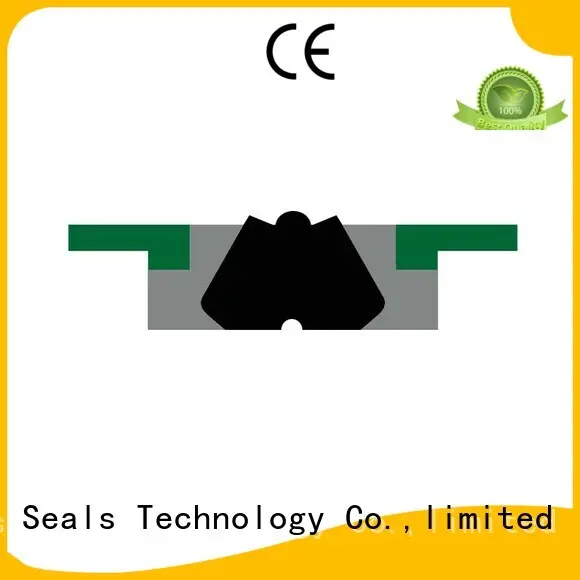

DBM/TPM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

Standard materials

Guide ring: filled PTFE / PA

Back-up ring: TPU polymer

Elastomer: NBR

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+120℃	0.5 m/s	petroleum base hydraulic oil，nonflammable hydraulic oil, environmental protection hydraulic oil

Installation Dimensions

Cylinder Dia.	Groove Size					Order No.
DN H9	d1	L1 +0.2	d2 h9	d3 h11	L2 +0.1	Order No.
20 22 25	11 13 15	13.5 13.5 12	17 19 21	19 21 23	2.1 2.1 4	TPM201113.52.1 TPM221313.52.1 TPM251512*4
25 25 25	15 15 16	12.5 16.4 13.5	22 21.45 22	24 23.5 24	4 6.35 2.1	TPM251512.54 TPM251516.46.35 TPM251613.5*2.1
28 30 30	19 17 21	13.5 15.4 13.5	25 26.5 27	27 28.5 29	2.1 6.35 2.1	TPM281913.52.1 TPM301715.46.35 TPM302113.5*2.1
32 32 35	22 22 25	15.5 16.4 15.5	28 28.5 31	31 30.5 34	2.6 6.35 2.6	TPM322215.52.6 TPM322216.46.35 TPM352515.5*2.6
35 40 40	25 24 26	16.4 18.4 15.5	31.4 35.4 36	33.5 38.5 39	6.35 6.35 2.6	TPM352516.46.35 TPM402418.46.35 TPM402615.5*2.6
40 40 40	30 30 30	12.5 12.5 16.4	36 37 35.4	38 39 38.5	4 4 6.35	TPM403012.54 TPM403012.54 TPM403016.4*6.35
42 45 45	28 29 31	15.5 18.4 15.5	38 40.4 41	41 43.5 44	2.6 6.35 2.6	TPM422815.52.6 TPM452918.46.35 TPM453115.5*2.6
45 50 50	35 34 34	16.4 18.4 20.5	40.4 45.4 46	43.5 48.5 49	6.35 6.35 3.1	TPM453516.46.35 TPM503418.46.35 TPM503420.5*3.1
55 55 56	39 39 40	18.4 20.5 20.5	50.36 51 52	53.5 54 55	6.35 3.1 3.1	TPM553918.46.35 TPM553920.53.1 TPM564020.5*3.1
60 60 63	44 44 47	18.4 20.5 18.4	55.4 56 58.4	58.5 59 61.5	6.35 3.1 6.35	TPM604418.46.35 TPM604420.53.1 TPM634718.4*6.35
63 63 65	47 47 49	19.4 20.5 20.5	58.4 59 61	61.5 62 64	6.35 3.1 3.1	TPM634719.46.35 TPM634720.53.1 TPM654920.5*3.1
65 70 70	50 50 54	18.4 22.4 20.5	60.4 64.2 66	63.5 68.3 69	6.35 6.35 3.1	TPM655018.46.35 TPM705022.46.35 TPM705420.5*3.1

Installation Dimensions
