1. The rotary seals facility can rotary shaft seals and you can specify rotary seals manufacturer.As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. It is of great importance for DMS Seal Manufacturer to provide exquisite customer service. DMS Seals takes the lead in grasping the development trend of the industry
3. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals. The rotary shaft seals,rotary seals catalogue know this fact well and offer high-quality custom o-ring seal,rotary shaft seals.
4. rotary seals can ensure good performance and value, and give full play to a certain role. Seal we produced has applications in a wide range of fields
5. Exceed expectations with DMS Seal Manufacturer’s quality, and make a statement with the warmth of rich rotary seals manufacturer. Quality control of the seals is the basis for DMS Seals.
Rod Diameter | Groove Diameter | Seal Width | Groove Width | Guide Clearance S max | |
d e8 | D H9 | H | L | 0-10MPa | 15-36MPa |
50-79 | d+10.0 | 4.5 | 5.0 | 0.40-0.30 | 0.30-0.25 |
80-109 | d+13.8 | 7.0 | 7.5 | 0.45-0.35 | 0.35-0.30 |
110-299 | d+20.0 | 9.5 | 10.0 | 0.55-0.45 | 0.45-0.35 |
300-600 | d+24.0 | 12.5 | 13.0 | 0.60-0.55 | 0.55-0.45 |
Application and properties

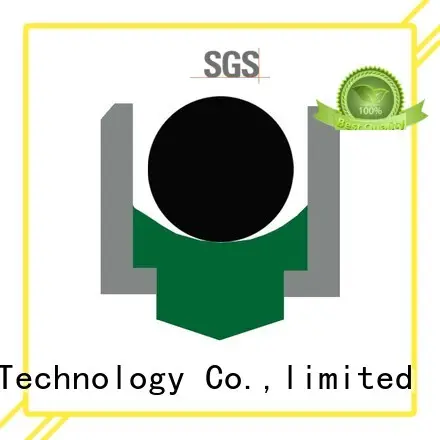

Applicable to construction machinery, construction machinery and automotive equipment and other industrial fields. Consisting of a sealing ring, a O-Ring and two retaining rings, the sealing surface profile is specially designed to accommodate high pressure and low speed, the design of the back of the seal ring increases the contact surface and prevents rotation with the rod or shaft. Low friction, non viscous phenomenon, simple groove, good abrasion resistance and dimensional stability.
Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Back-up ring: POM / PA
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-36MPa | -36℃+100℃ | 0.5 m/s | hydraulic oil, flame retardant liquid, water and others |
d e8 | D H9 | H | L | e | Order No. |
50 | 60 | 4.5 | 5 | 7 | OI50*60*4.5 |
65 | 75 | 4.5 | 5 | 7 | OI65*75*4.5 |
80 | 93.8 | 7.0 | 7.5 | 7 | OI80*93.8*7 |
95 | 108.8 | 7.0 | 7.5 | 7 | OI95*108.8*7 |
115 | 135 | 9.5 | 10 | 10 | OI115*135*9.5 |
130 | 150 | 9.5 | 10 | 10 | OI130*150*9.5 |
160 | 180 | 9.5 | 10 | 10 | OI160*180*9.5 |
190 | 210 | 9.5 | 10 | 10 | OI190*210*9.5 |
225 | 245 | 9.5 | 10 | 10 | OI225*245*9.5 |
Company Features
1. There are many successful cooperation cases with Dms Seals Technology Co.,limited for our rotary seals.
2. rotary shaft seals is developed using latest technology support for rotary shaft seals.
3. Relentless pursuit of quality excellence is significant to Dms Seals Technology Co.,limited. Inquire!
