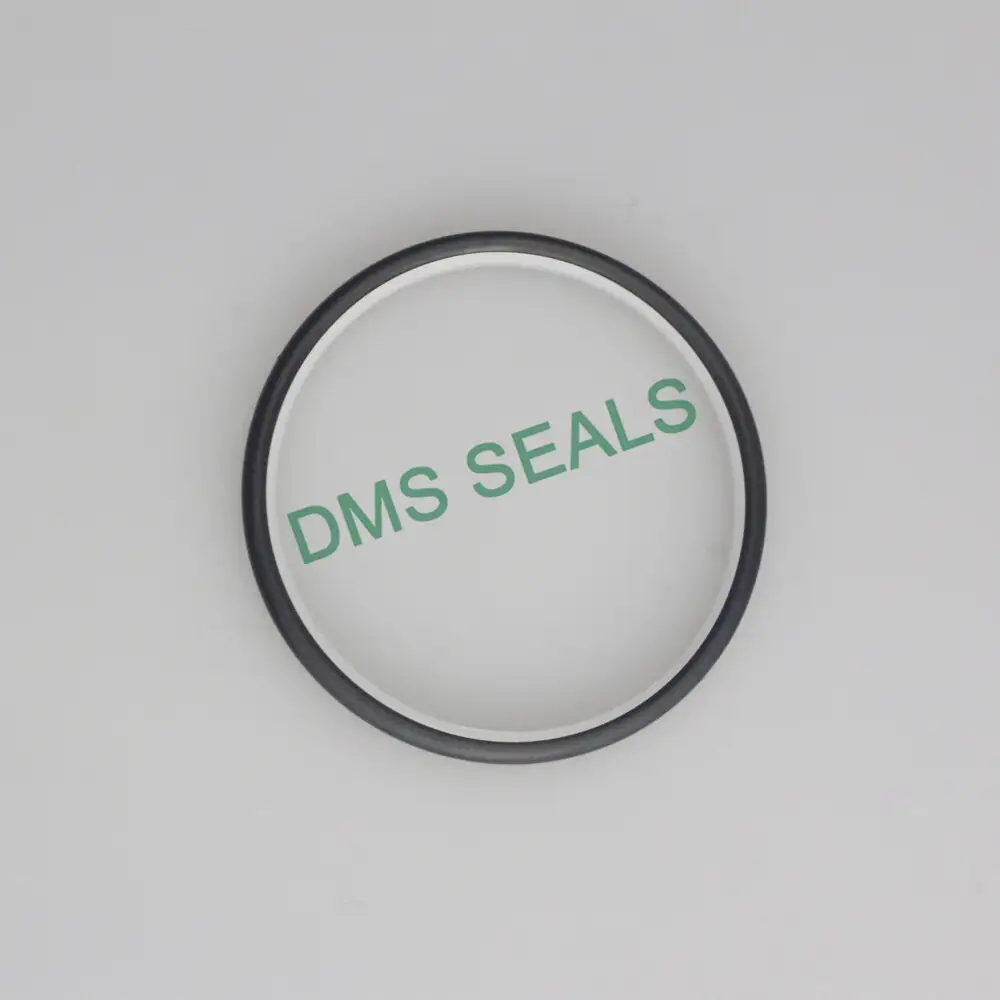

Slipper Seal Spnc Special-Shaped Ring Double Triangle Seal
1. Installation Recommendation
2. Application and properties
The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.
3. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
4. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 35MPa | -30℃ +200℃ | 1.5 m/s | general hydraulic oil,water glycol Hydraulic oil and water emulsion type hydraulic oil. |
| NO. | SIZE | NO. | SIZE | NO. | SIZE |
| 1 | SPNC3*6*2.5 | 40 | SPNC39*45*4.7 | 79 | SPNC145*155*7.5 |
| 2 | SPNC4*7*2.5 | 41 | SPNC40*46*4.7 | 80 | SPNC150*160*7.5 |
| 3 | SPNC5*8*2.5 | 42 | SPNC41*47*4.7 | 81 | SPNC150*165*11 |
| 4 | SPNC6*9*2.5 | 43 | SPNC42*48*4.7 | 82 | SPNC155*170*11 |
| 5 | SPNC7*10*2.5 | 44 | SPNC44*50*4.7 | 83 | SPNC160*175*11 |
| 6 | SPNC8*11*2.5 | 45 | SPNC45*51*4.7 | 84 | SPNC165*180*11 |
| 7 | SPNC9*12*2.5 | 46 | SPNC46*52*4.7 | 85 | SPNC170*185*11 |
| 8 | SPNC10*13*2.5 | 47 | SPNC48*54*4.7 | 86 | SPNC175*190*11 |
| 9 | SPNC10*14*3.2 | 48 | SPNC48*58*7.5 | 87 | SPNC180*195*11 |
| 10 | SPNC11*15*3.2 | 49 | SPNC49*55*4.7 | 88 | SPNC185*200*11 |
| 11 | SPNC11.2*15.2*3.2 | 50 | SPNC50*56*4.7 | 89 | SPNC190*205*11 |
| 12 | SPNC12*16*3.2 | 51 | SPNC50*60*7.5 | 90 | SPNC195*210*11 |
| 13 | SPNC12.5*16.5*3.2 | 52 | SPNC52*62*7.5 | 91 | SPNC200*215*11 |
| 14 | SPNC14*18*3.2 | 53 | SPNC53*63*7.5 | 92 | SPNC210*225*11 |
| 15 | SPNC15*19*3.2 | 54 | SPNC55*65*7.5 | 93 | SPNC220*235*11 |
| 16 | SPNC16*20*3.2 | 55 | SPNC56*66*7.5 | 94 | SPNC230*245*11 |
| 17 | SPNC18*22*3.2 | 56 | SPNC58*68*7.5 | 95 | SPNC240*255*11 |
| 18 | SPNC20*24*3.2 | 57 | SPNC60*70*7.5 | 96 | SPNC260*275*11 |
| 19 | SPNC20*24*3.2 | 58 | SPNC62*72*7.5 | 97 | SPNC280*295*11 |
| 20 | SPNC21*25*3.2 | 59 | SPNC63*73*7.5 | 98 | SPNC300*315*11 |
| 21 | SPNC22*26*3.2 | 60 | SPNC65*75*7.5 | 99 | SPNC320*335*11 |
| 22 | SPNC22*28*4.7 | 61 | SPNC67*77*7.5 | 100 | SPNC340*355*11 |
| 23 | SPNC22.4*28.4*4.7 | 62 | SPNC70*80*7.5 | 101 | SPNC375*390*11 |
| 24 | SPNC24*30*4.7 | 63 | SPNC71*81*7.5 | ||
| 25 | SPNC25*31*4.7 | 64 | SPNC75*85*7.5 | ||
| 26 | SPNC25.5*31.5*4.7 | 65 | SPNC80*90*7.5 | ||
| 27 | SPNC26*32*4.7 | 66 | SPNC85*95*7.5 | ||
| 28 | SPNC28*34*4.7 | 67 | SPNC90*100*7.5 | ||
| 29 | SPNC29*35*4.7 | 68 | SPNC95*105*7.5 | ||
| 30 | SPNC29.5*35.5*4.7 | 69 | SPNC100*110*7.5 | ||
| 31 | SPNC30*36*4.7 | 70 | SPNC105*115*7.5 | ||
| 32 | SPNC31*37*4.7 | 71 | SPNC110*120*7.5 | ||
| 33 | SPNC31.5*37.5*4.7 | 72 | SPNC115*125*7.5 | ||
| 34 | SPNC32*38*4.7 | 73 | SPNC120*130*7.5 | ||
| 35 | SPNC34*40*4.7 | 74 | SPNC125*135*7.5 | ||
| 36 | SPNC35*41*4.7 | 75 | SPNC130*140*7.5 | ||
| 37 | SPNC35.5*41.5*4.7 | 76 | SPNC132*142*7.5 | ||
| 38 | SPNC36*42*4.7 | 77 | SPNC135*145*7.5 | ||
| 39 | SPNC38*44*4.7 | 78 | SPNC140*150*7.5 |
