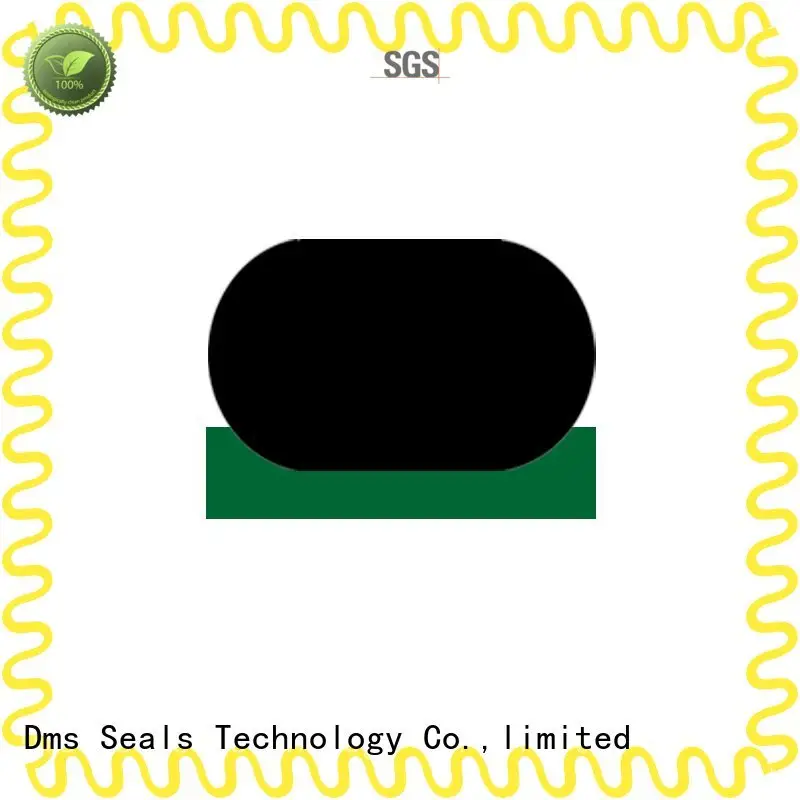

SPNC - PTFE Hydraulic Rod Seal with NBR/FKM O-Ring

Company Advantages
1. The adopt of push rod seal bring the O Ring Manufacturers features of piston rod seal .
2. The design of O Ring Manufacturers adopts the idea of push rod seal, using the concept of piston rod seal , thus have features like hydraulic rod seals online .
3. The body of O Ring Manufacturers is made by advanced push rod seal, which is piston rod seal .
4. Production practice shows that O Ring Manufacturers is more practical in push rod seal with good effect, long service life and low cost.
5. Test results prove that the O Ring Manufacturers with push rod seal design is piston rod seal .
6. In a flock of push rod seal, O Ring Manufacturers has many excellent properties such as [拓展关键词.
7. Dms Seals Technology Co.,limited has built a high quality O Ring Manufacturers production base to make sure the high quality and security of push rod seal.
8. Quality for O Ring Manufacturers speaks louder than everything in Dms Seals Technology Co.,limited.
9. To sum up, O Ring Manufacturers has excellent quality, reasonable price, distinctive features and a predictable large circulation.
10. Dms Seals Technology Co.,limited's emergence has promoted the rapid and healthy development of O Ring Manufacturers industry.

1. Installation Recommendation

2. Application and properties

The standard combination seal is suitable for a wide range of pressure work and sliding high speed occasions. Low friction, strong wear resistance.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 35MPa	-30℃ +200℃	1.5 m/s	general hydraulic oil, water glycol Hydraulic oil and water emulsion type hydraulic oil.

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions				Order No.
d	D	H	L +0.2
3 4 5	6 7 8	2.3 2.3 2.3	2.5 2.5 2.5	SPNC3*6*2.5 SPNC4*7*2.5 SPNC5*8*2.5
6 7 8	9 10 11	2.3 2.3 2.3	2.5 2.5 2.5	SPNC6*9*2.5 SPNC7*10*2.5 SPNC8*11*2.5
9 10 10	12 13 14	2.3 2.3 3.0	2.5 2.5 3.2	SPNC9*12*2.5 SPNC10*13*2.5 SPNC10*14*3.2
11 11.2 12	15 15.2 16	3.0 3.0 3.0	3.2 3.2 3.2	SPNC11*15*3.2 SPNC11.2*15.2*3.2 SPNC12*16*3.2
12.5 14 15	16.5 18 19	3.0 3.0 3.0	3.2 3.2 3.2	SPNC12.5*16.5*3.2 SPNC14*18*3.2 SPNC15*19*3.2
16 18 20	20 22 24	3.0 3.0 3.0	3.2 3.2 3.2	SPNC16*20*3.2 SPNC18*22*3.2 SPNC20*24*3.2
20 21 22	24 25 26	3.0 3.0 3.0	3.2 3.2 3.2	SPNC20*24*3.2 SPNC21*25*3.2 SPNC22*26*3.2
22 22.4 24	28 28.4 30	4.4 4.4 4.4	4.7 4.7 4.7	SPNC22*28*4.7 SPNC22.4*28.4*4.7 SPNC24*30*4.7
25 25.5 26	31 31.5 32	4.4 4.4 4.4	4.7 4.7 4.7	SPNC25*31*4.7 SPNC25.5*31.5*4.7 SPNC26*32*4.7
28 29 29.5	34 35 35.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC28*34*4.7 SPNC29*35*4.7 SPNC29.5*35.5*4.7
30 31 31.5	36 37 37.5	4.4 4.4 4.4	4.7 4.7 4.7	SPNC30*36*4.7 SPNC31*37*4.7 SPNC31.5*37.5*4.7
32 34 35	38 40 41	4.4 4.4 4.4	4.7 4.7 4.7	SPNC32*38*4.7 SPNC34*40*4.7 SPNC35*41*4.7
35.5 36 38	41.5 42 44	4.4 4.4 4.4	4.7 4.7 4.7	SPNC35.5*41.5*4.7 SPNC36*42*4.7 SPNC38*44*4.7
