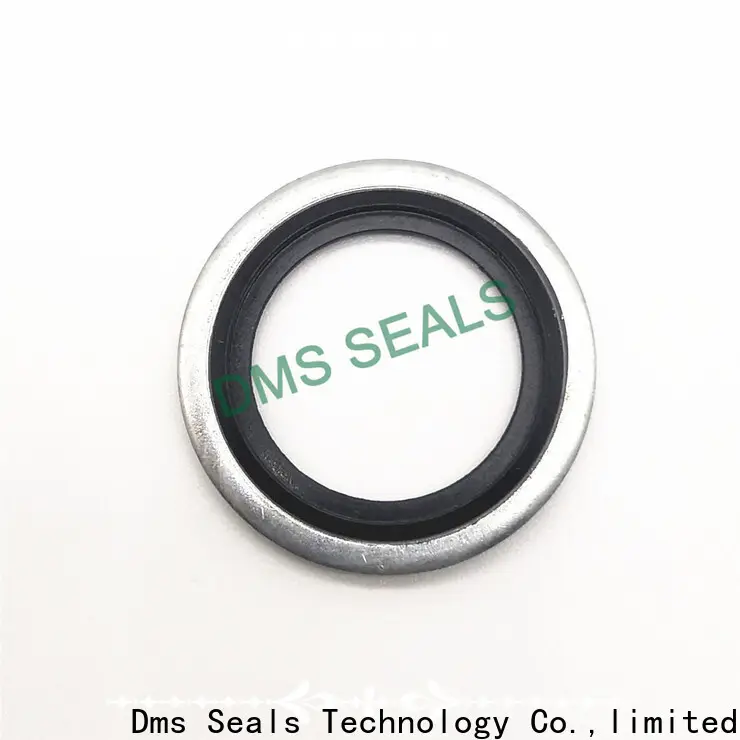

superior quality bonded seal ring Supply for fast and automatic installation

Company Advantages
1. DMS Seal Manufacturer bonded seal ring is professionally designed. It is carried out by adopting the principle of 'the conventional separation processes for the removal of bulk contaminants'.
2. DMS Seal Manufacturer bonded seal ring has gone through various kinds of tests. These tests include colorfastness check, dimensional stability test, accessories safety check, etc.
3. DMS Seal Manufacturer is developed by our in-house structural engineering team who is dedicated to designing packaging that can bring customers vision and ideas into reality.
4. The products are of high quality and stable performance, and are well received by customers.
5. This product has excellent performance and reliable quality.
6. Durability: It has been given a relatively long lifespan and can retain somewhat functionality and aesthetics after long-time application.
7. The product is able to be used in a variety of applications.
8. This reliable and cost-effective product has won a wide customer base around the world.
9. The product has received great trust and high praise from the vast of customers, showing a great market potential.
10. Offered product range is extremely valued by our esteemed clients for these features.

1. Applicability

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. DMS Seal Manufacturer is a world-leading supplier of bonded seal ring . DMS Seal Manufacturer is good at integrating design, manufacturing and sales bonded washers suppliers . With a unique vision, Dms Seals Technology Co.,limited is a leader in providing high quality bonded seals catalogue and services. Dms Seals Technology Co.,limited is a Chinese manufacturer of high quality bonded washer sizes .
2. Fully implementing the technological research will help DMS Seal Manufacturer to be a forward-looking high pressure sealing washer supplier. With the technology, bonded seal supplier produced by DMS Seal Manufacturer is ahead of this industry. Dms Seals Technology Co.,limited has mastered the autonomous research and development capacity of the new dowty bonded washer . It is professional R&D base that makes metal sealing washers improved greatly. Dms Seals Technology Co.,limited's continual efforts have been rewarded with an ISO 9001 : 2000 certification for Quality Management Systems.
3. tenet and brand strategy constitute the core competitiveness of Dms Seals Technology Co.,limited. Get price! Dms Seals Technology Co.,limited adheres to the principle of steady development, focuses on improving quality of sealing washers manufacturer and production efficiency. Get price! is regarded as Dms Seals Technology Co.,limited's market strategy. Get price! With big capacity in our factory, Dms Seals Technology Co.,limited can arrange delivery on time. Get price!
