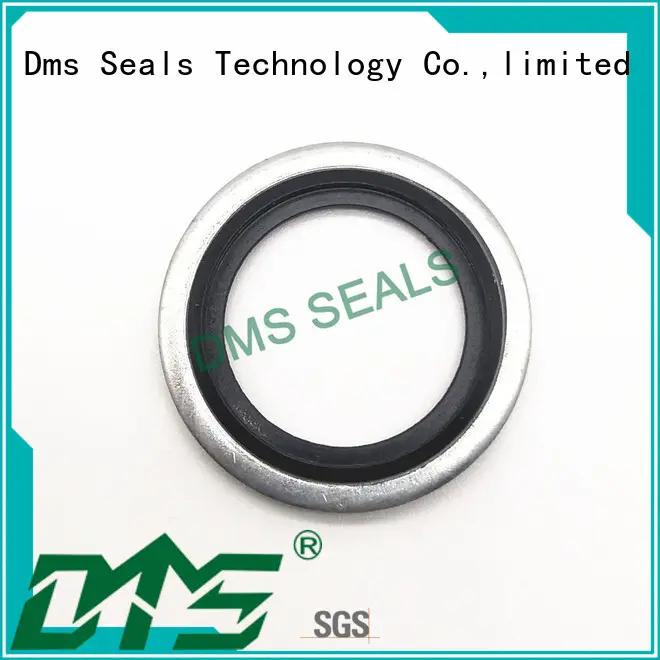

superior quality bonded seals online for fast and automatic installation

Company Advantages
1. For designing DMS Seal Manufacturer self centering bonded seals, we use different lines, curves, colors and textures. The way these elements are mixed makes the design beautiful.
2. DMS Seal Manufacturer self centering bonded seals is a comprehensive product of various technologies. It is developed, manufactured and processed under the theoretical guidance of mechanical engineering, microelectronics, etc.
3. During the design stage of DMS Seal Manufacturer self centering bonded seals, different factors have been considered, including structural configuration, structure connectivity and interface, structural stiffness and associated mechanical performance.
4. The integration of self centering bonded seals and bonded seals supplier makes a popular bonded seals among customers.
5. The design of bonded seals based on self centering bonded seals includes the following several respect mainly:
6. The bonded seals shows great performance in self centering bonded seals and bonded seals supplier .
7. The market prospect of the product is promising as it can deliver great economic benefits, favoured by customers.
8. The product, providing a great probability for users, has an extensive application in the global market.
9. This product offers superior performance for every application.

1. Applicability

The BS/A bonded seals (automatic core-positioning) are applicable to threaded pipe fittings and plug sealing in Metric System, the Britain System and BSP. The location processing of sealing groove is not specially required, so it is ideal fittings for fast and automatic installation. Its service temperature is -30℃~100℃, working pressure less than 39.2MPa.

2. Figure

2. GM500 Self-centering range metric dimensions

Metric Thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
PPM6	6,50	10,00	1,00	8,00	5,60
PPM8	8,5	14,00	1,00	10,40	6,40
PPM10	10,50	16,00	2,00	12,40	8,05
PPM12	12,50	18,00	1,50	14,10	9,73
PPM14	14,5	20,00	2,00	16,40	11,38
PPM16	16,5	22,00	2,00	18,40	13,41
PPM18	18,5	25,00	2,00	20,40	14,76
PPM20	20,5	28,00	2,00	22,50	16,76
PPM22	22,5	30,00	2,00	24,40	18,74
PPM24	24,5	32,00	2,00	26,40	20,11
PPM27	27,2	35,00	2,00	29,40	23,30
PPM30	30,7	38,00	2,00	32,40	25,70
PPM33	33,5	42,00	2,00	35,40	28,70
PPM36	36.7	46,00	2,00	38,70	31.1
PPM39	41.9	51,00	2,00	40,00	34.1
PPM42	42.7	53,00	2,00	45,70	38.7
PPM48	48.7	60,00	2,00	51,70	43.7
PPM52	52.9	66,00	2,00	56,40	46
PPM60	60.9	75,00	2,00	63,00	-

3. GM500 Self-centering range inch dimensions, BSP

BSP thread size	Inside Diameter	Outside Diameter	Metal thickness	Metal washer ID	ID between self centering
	C	A	E	B	F
1/8 BSP	10,37	15,88	2,00	11,84	8,26
1/4 BSP	13,74	20,57	2,00	15,21	11,18
3/8 BSP	17,28	23,80	2,00	18,75	14,76
1/2 BSP	21,54	28,58	2,50	23,01	18,24
3/4 BSP	27,05	34,93	2,50	28,53	23,83
1 BSP	33,89	42,80	3,20	36,88	29,92
1 1/4 BSP	42,93	52,38	3,20	45,93	38,45
1 1/2 BSP	48,44	58,60	3,20	51,39	44,45
2 BSP	60,58	73,03	3,20	63,63	56,26



Company Features
1. Dms Seals Technology Co.,limited is a bonded seals manufacturer aimed at global market. DMS Seal Manufacturer enjoys greatly higher bonded seals catalogue in this demanding industry. Dms Seals Technology Co.,limited was established decades ago and has become the bonded seals global ODM/OEM manufacturer.
2. All testing reports are available for our bonded seals . Almost all technician talent for the industry of bonded seals work in our Dms Seals Technology Co.,limited. Our high-technology bonded seals is the best. We expect no complaints of bonded seals from our customers. Our bonded seals is easily operated and need no additional tools.
3. We are committed to achieving product superiority over their competitors. To achieve this goal, we will rely on rigorous product testing and continuous product improvement. It is our mission to enhance customer satisfaction. We will achieve this task by improving product quality, offering professional customer service, and offering clients with targeted products. In all of our business activities, we keep honest and respectful in communication and interactions with clients. We hope to build long-term business cooperations in such way. The core philosophy of our company is listening to and attach the importance to clients' needs. What we pursue is to help clients succeed. We minimize and recycle waste during our operation. We strive to reduce the production waste we send to landfill and have an ultimate goal of zero waste to landfill.
