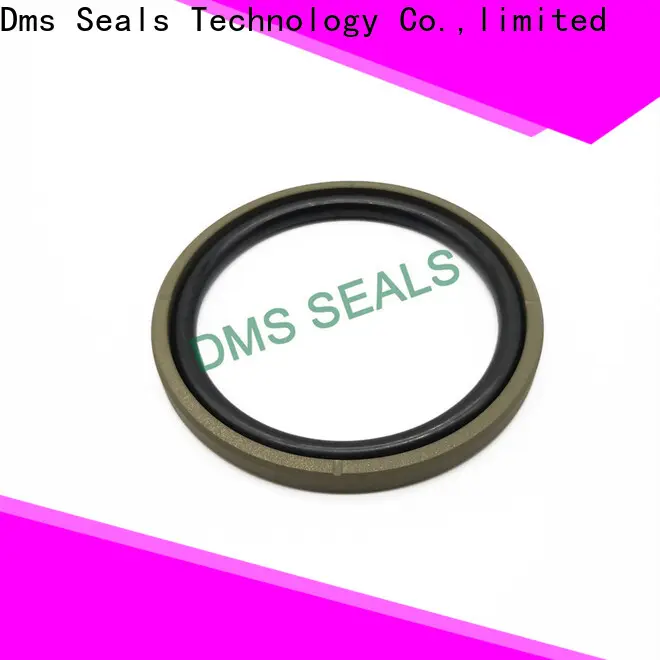

Top hydraulic piston seals Supply for pneumatic equipment

Company Advantages
1. Well-selected materials: the raw materials of DMS Seal Manufacturer hydraulic piston seals is well-selected by our quality team, which contributes to the product of high quality and excellent property.
2. DMS Seal Manufacturer is manufactured using the finest raw material, which is procured from some of the most trustworthy and certified vendors in the industry.
3. Built with solid construction and select quality finishes, DMS Seal Manufacturer hydraulic piston seals satisfies both the style and budget needs.
4. DMS Seal Manufacturer is manufactured under the guidance of skilled professionals using optimum grade material.
5. DMS Seal Manufacturer is offered utilizing the advanced technology and high-efficiency equipment.
6. Its quality is seriously taken into account from material purchase to package.
7. The product has passed multiple strict quality inspection processes.
8. The product we offered has reliable performance and durability.
9. The quality of this product is one of the best due to the adoption of the strict quality control system.
10. The product has good competition capacity and a good development prospect.
11. Many of our customers have witnessed Dms Seals Technology Co.,limited's growth.
12. Strict quality tests are made to hydraulic piston seals before delivery.

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited has extensive experience in the production and R&D of hydraulic piston seals . Dms Seals Technology Co.,limited is a leading hyd cylinder seal kit company whose capabilities have continued to grow in recent years. As a high tech company, Dms Seals Technology Co.,limited is mainly devoted to the research and development and manufacturing of hydraulic cylinder packing material . As a technologically advanced company, Dms Seals Technology Co.,limited has an advantage in quality. Dms Seals Technology Co.,limited has established a massive factory to manufacture high quality polyurethane hydraulic seals .
2. We've built up a team of quality people who are committed to getting the job done right, every time. ​They are highly skilled and experienced workers, which enables us to finish our projects at the highest level. We have a team of experts. They work hard together to develop innovative products and improve our business workflow. This enables us to be more competitive in providing products. We have developed a strong customer base. We have successfully finished many projects with these customers and they are quite satisfied with the results. This demonstrates that we have the ability to be a key player in this field.
3. Perfect after-sale service makes Dms Seals Technology Co.,limited win more trust form our customers. Inquire! Dms Seals Technology Co.,limited ensure high quality service for its costumers. Inquire! We hold the persisting view of hydraulic pump oil seal to guarantee the quality of the products. Inquire!
