Top hydraulic seal kits suppliers cost to high and low speed

Company Advantages
1. The parts and the chemical ingredients for purification of DMS Seals are all sourced from suppliers who have qualification and certifications in supplying quality water treating materials.
2. Before DMS Seals is shipped, quality tests on chromatism, dents on the surface, deformation, oxidation, dimension, welding joint, etc. will be conducted to make sure its quality.
3. The design of DMS Seals has been optimized. For example, the performance of insulation materials (mainly metals), plug compatibility, electromagnetic interference have been improved by our designers.
4. This product features wear comfort. Factors affecting the comfort properties of fibers and fabrics are seriously taken into consideration and integrated it to its design.
5. This product is durable and lasts a long time. Its strong frame will not easily lose its original shape and is not susceptible to twisting or bowing.
6. The product is waterproof. Processed by the seam process technology, the jointing is seamless. Hence, no moisture or water content will seep into the seam.
7. The product is safe. It does not contain any irritant harmful substances, such as formaldehyde, lead, or harmful volatile organic compounds.
8. The product is resistant to extreme heat and cold. Treated under various temperature variates, it will not prone to crack or deform under high or low temperatures.
9. This product provides an effective space solution for a variety of environments including offices, dining facilities, and hotels.
10. It is perfect to update the room with this trendy product. It acts as an excellent decorative addition to any room, including hotels, offices, and homes.
11. Its antibacterial performance helps improve people's health. It creates a bacteria-free, clean, and breathable shoe environment for wearers.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

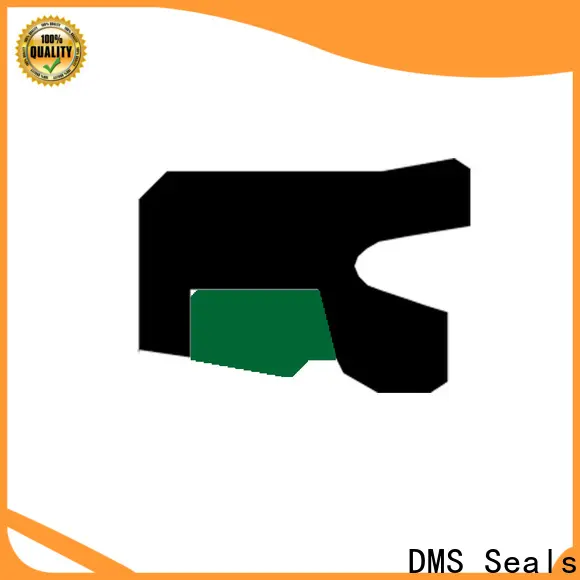

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. Concentrating on the development of hydraulic seal kits suppliers industry, DMS Seals's effort on developing popular products finally paid off. To satisfy the needs of customers more, DMS Seals provides not only the finest but also the . DMS Seals is widely known for its reliable quality and rich styles of hydraulic cylinder seal kits . With a rich experience in hydraulic seals industry, we have always been focusing on the quality management.
2. We have an excellent design team. It is made up of highly creative people who know the industry very well. They can always create sought-after products. We have introduced foreign high-end production devices. Combining with advanced techniques, we have realized the effective guarantee of the product producing process. Our company has excellent employees. There is a high degree of commitment, strong professional qualifications, and a high level of motivation among them. They can always provide the best for customers. Our manufacturing accomplishments have been recognized through an impressive array of awards. These awards are City Advanced Enterprise, County Leading Enterprise, to name but a few.
3. To be a well respected and creative company is DMS Seals's goal. Get an offer! The idea of that has played an extremely important role has been widely recognized in DMS Seals. Get an offer! DMS Seals insists on the talent development idea of 'people oriented'. Get an offer! Constant improvement in quality of hydraulic rod seals online is our promise. Get an offer! Dms Seals Technology Co.,limited understands and focuses on the needs of our customers, delivering outstanding products and service. Get an offer!
