Product Details
Dms Seals's
O-ring Seal is exquisite in details.O-ring Seal, manufactured based on high-quality materials and advanced technology, has reasonable structure, excellent performance, stable quality, and long-lasting durability. It is a reliable product which is widely recognized in the market.
Company Advantages1. The raw material used for DMS Seals is of the best grade available in the market.
2. DMS Seals adopts the simplified production method.
3. DMS Seals adopts reasonable improvements in production.
4. is the ultimate product in hydraulic seals distributors field.
5. The production method of DMS Seals is improved combining the newest technology.
6. The product is durable in use. The use and abuse testing of this product are available to verify that it can be used for a long time.
7. The product has a smooth feeling. The calendering process in which the fabric is passed between heated rollers to generate smooth and polished effects.
8. The product is safe to use. Its electromagnetic blowdown level is controlled to a low level and its electrical insulation are guaranteed effectively.
9. This product acts a good way to increase efficiency. It is highly effective in helping cut operation time and workload.
10. The product requires little repairs and maintenance. This will significantly help avoid any production delay and keep projects running on time.
11. While It adds a luxurious fullness to the bed, it is perfect for all seasons, adjusting to body temperature for just the right degree of warmth.
12. It balances body temperature by reducing overheating that causes sweating, and makes you sleep better and more comfortable at night.
13. As water leakage never happens to this product, unpredictable weather will no longer be an unwelcome guest for any special event.
Installation Recommendation
![undefined undefined]()
Application and properties

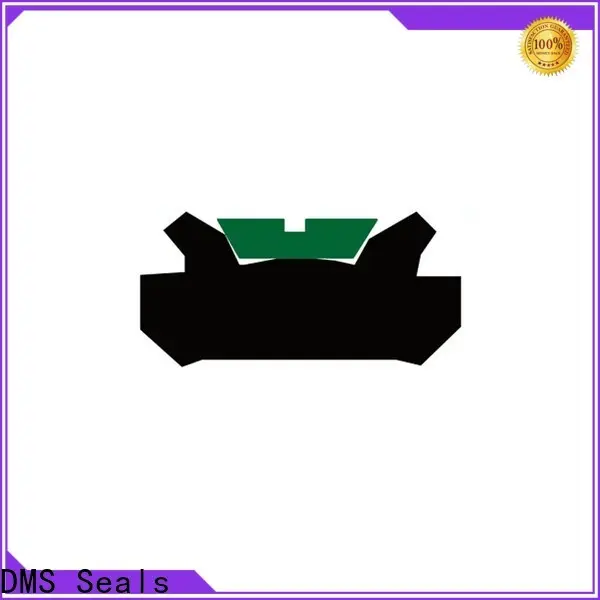

Suitable for seals of pistons and plungers, tandem seals for a variety of liquid applications are internal seals. Before installation, the sealing lip is protruded outwards, and the cylinder liner is pressed tightly after installation to provide elasticity for the wear ring, excellent sealing results can be achieved even in the absence of pressure. It can separate the liquid on both sides of the sealing ring, so it is also suitable for the sealing of the oil chamber, and the invasion of other liquids can be prevented. High wear resistance, low friction, no crawling phenomenon.
Sealing ring: filled PTFE
Elastomer: NBR / PU
Working Conditions
Working Conditions |
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-25MPa | -30℃+100℃ | 1 m/s | hydraulic oil, flame retardant liquid, water and others |
Installation Dimensions
D H8 | d h9 | H | L+0.2 | e | Order No. |
40 45 50 | 30 35 40 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA40*30*16 DDMA45*35*16 DDMA50*40*16 |
56 63 65 | 46 53 55 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA56*46*16 DDMA63*53*16 DDMA65*55*16 |
70 75 80 | 60 65 70 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA70*60*16 DDMA75*65*16 DDMA80*70*16 |
85 90 95 | 75 80 85 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA85*75*16 DDMA90*80*16 DDMA95*85*16 |
100 105 115 | 90 95 105 | 15 15 15 | 16 16 16 | 7 7 7 | DDMA100*90*16 DDMA105*95*16 DDMA115*105*16 |
120 125 130 | 110 113 118 | 15 15 15 | 16 16 16 | 7 10 10 | DDMA120*110*16 DDMA125*113*16 DDMA130*118*16 |
135 140 145 | 123 128 133 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA135*123*16 DDMA140*128*16 DDMA145*133*16 |
150 155 160 | 138 143 148 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA150*138*16 DDMA155*143*16 DDMA160*148*16 |
170 180 190 | 158 168 178 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA170*158*16 DDMA180*168*16 DDMA190*178*16 |
200 210 220 | 188 198 208 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA200*188*16 DDMA210*198*16 DDMA220*208*16 |
225 235 240 | 213 223 228 | 15 15 15 | 16 16 16 | 10 10 10 | DDMA225*213*16 DDMA235*223*16 DDMA240*228*16 |
Company Features1. Dms Seals Technology Co.,limited is an export-oriented company that integrates hydraulic seals distributors research, development, production and sales. Serving as a large scaled manufacturer for pneumatic seal kit , Dms Seals Technology Co.,limited ranks top in China. Dms Seals Technology Co.,limited is a leading domestic and internationally renowned hydraulic cylinder shaft seals supplier.
2. We currently have various kinds of advanced production facilities, all of which were purchased new. Each machine is equipped with a variety of custom built setup and work holding fixtures which helps improve our production efficiency. With the help of advanced machines, is produced with high efficiency and high quality. We have an award-winning team of artists and designers. They help the company create product designs that improve product functionality, performance, as well as visual appeal.
3. Our company's goal is to bridge the gap between the client's vision and a beautifully crafted product ready to market. Get quote! We take our responsibility to the Earth seriously and are committed to sustainable business practices. Our performance in meeting our environmental goals—related to energy efficiency, greenhouse gas (GHG) emissions, water intake, and waste to landfills demonstrates our commitment to reducing our environmental footprint. It is our goal to contribute to a sustainable future. Besides safeguarding a responsible supply chain, we also focus on developing ways to reduce the need for raw materials. Our firm bears societal responsibilities. We employ pollution-prevention strategies to save ourselves a considerable amount of time and money, enabling the company to foster a sustainable future.
