Top pneumatic seal kit for pneumatic equipment
-
v s
1. With specialized design, pneumatic seal kit manifests its stylish characteristic.
2. The adoption of advanced equipment and the lean production method make DMS Seal Manufacturer pneumatic seal kit more cost-effective.
3. DMS Seal Manufacturer pneumatic seal kit is designed and made as per the prevailing market norms and guidelines.
4. DMS Seal Manufacturer is made using advanced production technology in tune with the industrial principles.
5. Stable performance and long lifespan of pneumatic seal kit is guaranteed.
6. The product is highly acknowledged among customers for its good durability and lasting performance.
7. Multiple times of quality tests will be conducted to ensure the product meets the industry quality standards.
8. The performance of the product is recognized by the third party authorities.
9. Dms Seals Technology Co.,limited further consolidates the quality of pneumatic seal kit by using technology.
10. With bright industry prospects, this product is bound to bring benefits to customers.
11. Dms Seals Technology Co.,limited is able to provide customers with the most suitable pneumatic seal kit products to meet your particular needs.

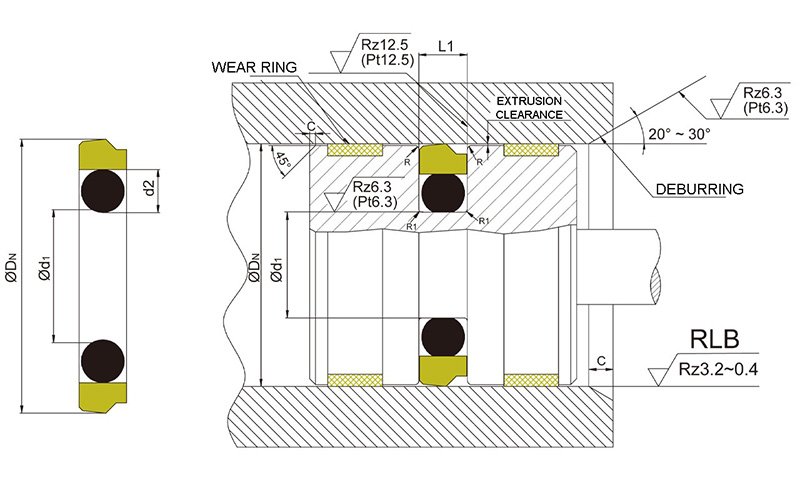

Bore Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross-Section | ||||
Standard Application | Light Application | Heavy Duty Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 40MPa | d2 |
8-16.9 | 17-26.9 | -- | DN-4.9 | 2.2 | 0.4 | 0.30 | 0.20 | 0.15 | 1.78 |
17-26.9 | 27-59.9 | -- | DN-7.3 | 3.2 | 0.6 | 0.40 | 0.25 | 0.15 | 2.62 |
27-59.9 | 60-199.9 | 17-26.9 | DN-10.7 | 4.2 | 1.0 | 0.50 | 0.30 | 0.20 | 3.53 |
60-199.9 | 200-255.9 | 27-59.9 | DN-15.1 | 6.3 | 1.3 | 0.70 | 0.40 | 0.25 | 5.33 |
200-255.9 | 256-669.9 | 60-199.9 | DN-20.5 | 8.1 | 1.8 | 0.80 | 0.60 | 0.35 | 7.00 |
256-669.9 | 670-999.9 | 200-669.9 | DN-24.0 | 8.1 | 1.8 | 0.90 | 0.70 | 0.40 | 7.00 |
670-999.9 | -- | 256-669.9 | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | 1000-2000 | -- | DN-28.0 | 9.5 | 2.5 | 1.00 | 0.80 | 0.60 | 8.40 |
-- | -- | 670-999.9 | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |
1000-2700 | -- | -- | DN-38.0 | 13.8 | 3.0 | 1.20 | 0.90 | 0.60 | 12.00 |
Application and properties
Standard single acting sealing. Suitable for reciprocating environment, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are good, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

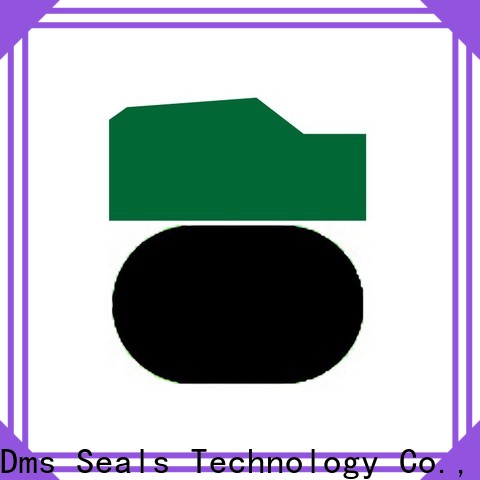

Standard materials
Sealing ring: filled PTFE
O-ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -45℃ +200℃ | 15 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Width | Order No. | O-ring Dimension |
D H9 | d1 h9 | L1+0.2 | ||
9 | 4.1 | 2.2 | GSD9*4.1*2.2 | 3.68*1.78 |
15 | 10.1 | 2.2 | GSD15*10.1*2.2 | 9.25*1.78 |
20 | 12.7 | 3.2 | GSD20*12.7*3.2 | 12.37*2.62 |
27 | 16.3 | 4.2 | GSD27*16.3*4.2 | 15.47*3.53 |
32 | 24.7 | 3.2 | GSD32*24.7*3.2 | 23.47*2.62 |
36 | 25.3 | 4.2 | GSD36*25.3*4.2 | 24*3.53 |
40 | 29.9 | 4.2 | GSD40*29.3*4.2 | 28.17*3.53 |
50 | 39.3 | 4.2 | GSD50*39.3*4.2 | 37.70*3.53 |
55 | 44.3 | 4.2 | GSD55*44.3*4.2 | 44.04*3.53 |
63 | 47.9 | 6.3 | GSD63*47.9*6.3 | 46.99*5.33 |
70 | 59.3 | 4.2 | GSD70*59.3*4.2 | 56.74*3.53 |
80 | 64.9 | 6.3 | GSD80*64.9*6.3 | 62.87*5.33 |
90 | 74.9 | 6.3 | GSD90*74.9*6.3 | 72.39*5.33 |
95 | 74.5 | 8.1 | GSD95*74.5*8.1 | 73*7.0 |
110 | 94.9 | 6.3 | GSD110*94.9*6.3 | 91.44*5.33 |
Company Features
1. Dms Seals Technology Co.,limited is a well-respected company specializing in the manufacture of . We have a strong capacity for manufacturing. Dms Seals Technology Co.,limited has been regarded as a specialist for designing, manufacturing, marketing of . We have gained wide acceptance in the industry. Relying on the outstanding capacities of producing , Dms Seals Technology Co.,limited gets a good lead in the domestic markets. After continuous independent innovation of , Dms Seals Technology Co.,limited has become a well-known top supplier in this industry.
2. We have experienced design professionals. Their specialties include concept visualization, product drawing, functional analysis, etc. Their being involved in every aspect of product development allows the company to exceed each customer's expectations for product performance. At this point, our business has been expanded to many countries around the world, and the main markets include America, Russia, Japan, and some Asia countries. We have design specialists. They fuse their creative flair with high-tech, focus on the details, precision, and functionality of each product, helping the company to develop only the best quality products. Our manufacturing plant is located in the mainland, China. The plant provides easy access to international sea and airports, which effectively supports us to deliver quality products with speed.
3. We highly value the quality and service of pneumatic seal kit . Welcome to visit our factory! Making best hydraulic seal design is our common pursuit and ideals. Welcome to visit our factory! A professional technical support team form oil seal hydraulic is standing behind, ready to help you at any time. Welcome to visit our factory!
