Top shaft roller bearing for business as the guide sleeve

Company Advantages
1. The quality of DMS Seal Manufacturer is guaranteed with material inspection processes which checks plastic resin and additives, glass, coating, and frames. DMS Seals manufacturer owns a team of professional R&D group and skilled technicians
2. The product looks virtually appealing as it's placed in a room. It will attract the eyeballs of anyone who walk into the room due to its unique and elegant design. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. The integration of and makes a popular shaft roller bearing among customers. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system

1. Installation Recommendation

2. Application and properties

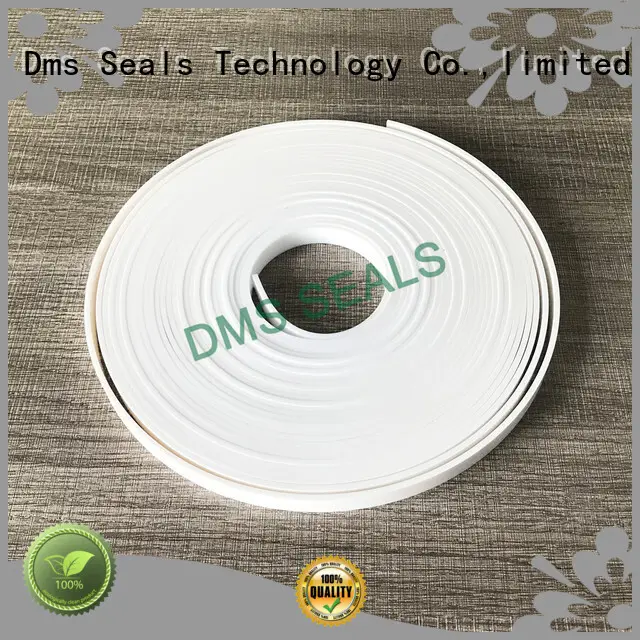

Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.

3. Standard materials

White virgin PTFE

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
Custom as Required	—	-55℃ +225℃	15 m/s	hydraulic oil, emulsion, and water

Piston:  L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]

Rod:    L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ]  C = 3.14  k=0.8

5. Length of whole roll

Thickness	1	1.5	2	2.5	3	4	5	6
Length of whole roll ( m )	55	35	27	22	18	13	10	8

Above data only for reference, it shall follow the actual products.

Standard groove width

Groove width L2

2.5

3.2

4

4.2

5.6

6

6.3

8.1

9.7

10

12

15

18

20

25

30

40

50

The products of various width could be provided.

Standard thickness of product

Thickness W

1

1.5

1.55

2

2.5

3

4

5

6

The products of various thickness could be provided.

Company Features
1. Lawfully granted with a production certificate, we are allowed to manufacture and sell products which are safe and harmless to guarantee people's health and environment friendliness.
2. Dms Seals Technology Co.,limited attaches great importance to after-sales service and has established after-sales service team. Inquiry!
