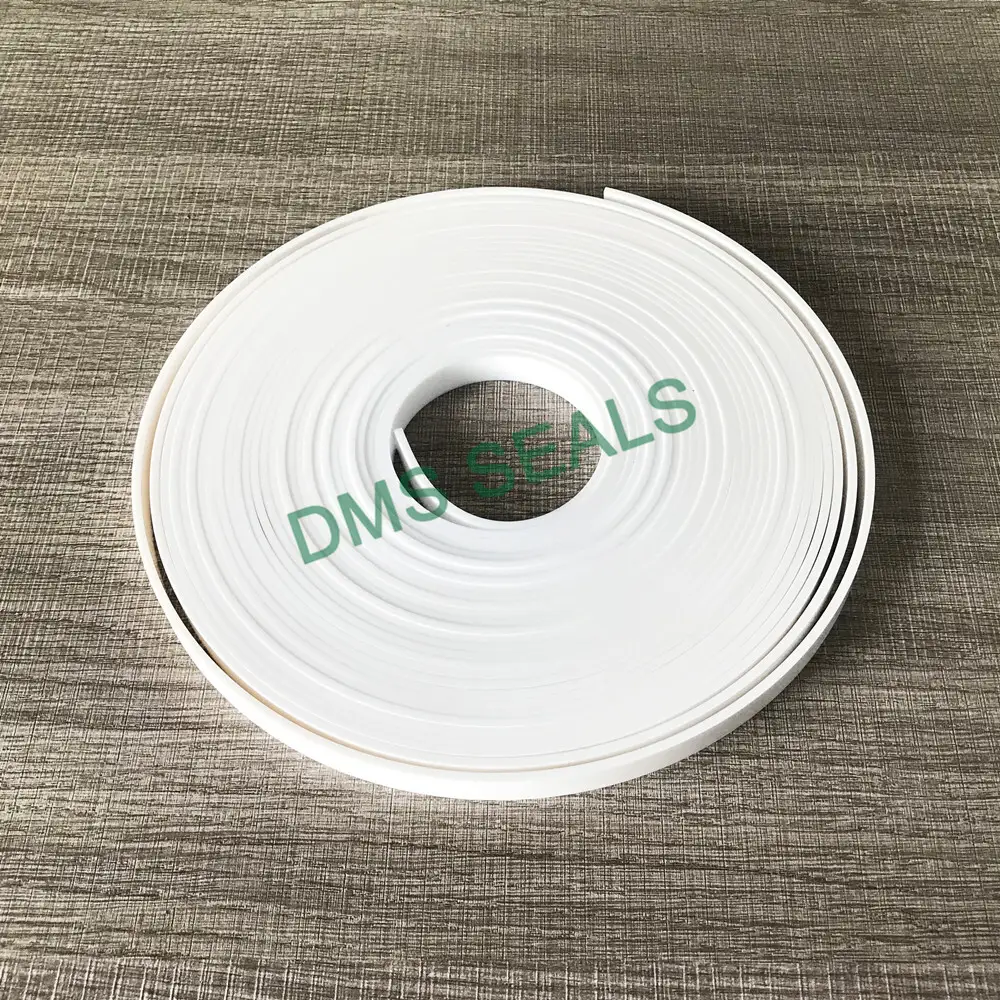

White virgin PTFE guide strip
1. Installation Recommendation
2. Application and properties
Applicable to the guiding of piston and piston rod of hydraulic cylinder and air cylinder, has the function of supporting and guiding. The guide strips with the thickness which equal to or greater than 2mm, double sided embossing could be provided, the embossing structure is conducive to the formation of lubrication micro-pit, improve micro lubrication, at the same time, it is helpful to embed tiny foreign objects and protect the sealing system.
3. Standard materials
White virgin PTFE
4. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
Custom as Required |
— |
-55℃ +225℃ |
15 m/s |
hydraulic oil, emulsion, and water |
Piston: L=C × ( D - W ) - k [ mm ] D = Piston Dia. [ mm ] W = Thickness [ mm ]
Rod: L=C × ( d + W ) - k [ mm ] d = Rod Dia. [ mm ] C = 3.14 k=0.8
5. Length of whole roll
|
Thickness |
1 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
6 |
|
Length of whole roll ( m ) |
55 |
35 |
27 |
22 |
18 |
13 |
10 |
8 |
Above data only for reference, it shall follow the actual products.
Standard groove width
|
Groove width L2 |
2.5 |
3.2 |
4 |
4.2 |
5.6 |
6 |
6.3 |
8.1 |
9.7 |
10 |
12 |
15 |
18 |
20 |
25 |
30 |
40 |
50 |
The products of various width could be provided.
Standard thickness of product
|
Thickness W |
1 |
1.5 |
1.55 |
2 |
2.5 |
3 |
4 |
5 |
6 |
The products of various thickness could be provided.
