DMS SEALS TECHNOLOGY CO.,LIMITED
The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).
DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
Wholesale cup seals for hydraulic cylinders Suppliers for injection molding machines
-
v s
1. The parts selected for DMS Seal Manufacturer are guaranteed to meet the food grade standard. Any parts that contain BPA or heavy metals are weeded out instantly once they are found out.
2. The mold production of DMS Seal Manufacturer is finished by CNC (computer numerically controlled) machine which ensures its highest quality to meet the challenging of customer requirements in the water park industry.
3. The energy consumption based on DMS Seal Manufacturer cup seals for hydraulic cylinders production has greatly decreased due to technological improvements and energy conservation measures.
4. Every DMS Seal Manufacturer is subjected to rigorous inspections by our QC team including third-party tests and certifications to meet the health and safety standards in the sauna industry.
5. The product provides a sound seal system. The vertical seal of each panel is made of thick and tongue-type extruded aluminum laminated with a rubber seal.
6. The product has good strength. During the production, it is finely welded and die-casted to ensure its physical strength.
7. This product has strong electromagnetic compatibility. It has special electromagnetic interference suppression components to reduce electromagnetic wave during operation.
8. This product is widely used in the global market due to its high economic return.
9. Products sell well in the global market, with broad market potential.
10. The product has found increasingly wider application in the market due to its remarkable economic benefits.
11. The product is highly competitive and cost competitive and will surely become one of the best-selling products on the market.
Rod Diameter | Groove Diameter | Groove Width | Bore Diameter | Radius | Step Width |
d f8/h9 | D H9 | L+0.2 | D1±0.1 | R | a |
20-39.9 | d+7.6 | 4.2 | d+1.0 | 0.4 | 3.0 |
40-69.9 | d+8.8 | 6.3 | d+1.5 | 1.0 | 3.0 |
70-139.9 | d+12.2 | 8.1 | d+2.0 | 1.2 | 4.0 |
140-399.9 | d+16.0 | 11.5 | d+2.0 | 2.0 | 5.0 |
400-649.9 | d+24.0 | 15.5 | d+2.5 | 2.5 | 8.0 |
650-999.9 | d+27.3 | 18.0 | d+2.5 | 2.5 | 10.0 |
Application and properties

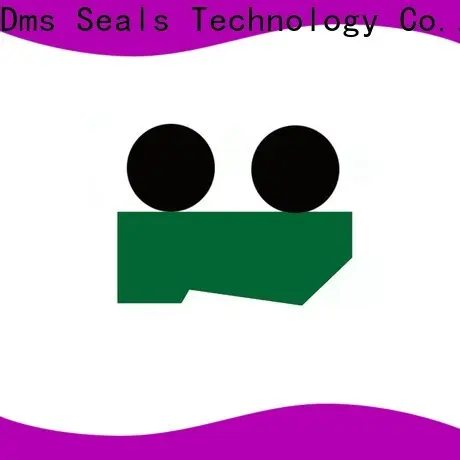

For a wide range of applications, such as agricultural machinery, injection molding machines, forklifts, cranes and so on. Consisting of a sealing ring and two O-Rings for improving overall tightness, low friction, non stick slip phenomenon, good adjustment and positioning ability, high reliability, accepting the full load of work pressure in a short time.
Standard materials
Sealing ring: filled PTFE / PU
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | -36℃+200℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others | |
d f8 | D H9 | H | L+0.2 | Order No. |
20 | 27.6 | 4.0 | 4.2 | DPT1-20*27.6*4.2 |
30 | 37.6 | 4.0 | 4.2 | DPT1-30*37.6*4.2 |
36 | 43.6 | 4.0 | 4.2 | DPT1-36*43.6*4.2 |
45 | 53.8 | 6.0 | 6.3 | DPT1-45*53.8*6.3 |
56 | 64.8 | 6.0 | 6.3 | DPT1-56*64.8*6.3 |
65 | 73.8 | 6.0 | 6.3 | DPT1-65*73.8*6.3 |
80 | 92.2 | 7.7 | 8.1 | DPT1-80*92.2*8.1 |
95 | 107.2 | 7.7 | 8.1 | DPT1-95*107*8.1 |
110 | 122.2 | 7.7 | 8.1 | DPT1-110*122*8.1 |
Company Features
1. Through years, Dms Seals Technology Co.,limited has been engaged in the design and production of . We are widely accepted in the industry. Since establishment, Dms Seals Technology Co.,limited has been engaged in the development, production, and marketing of . We have been recognized as an expert in the industry. Dms Seals Technology Co.,limited has been a renowned Chinese manufacturer of cup seals for hydraulic cylinders . We differentiate ourselves by providing innovative products. Dms Seals Technology Co.,limited is a manufacturer of . Our expertise in this highly specialized area has been recognized worldwide. Dms Seals Technology Co.,limited transcends among peers in the developing and manufacturing of rubber piston seal . We are notable for excellence and experience in this industry.
2. Dms Seals Technology Co.,limited adopts advanced production equipment and test equipment. hydraulic cylinder dimension chart represents a fairly sophisticated technology. Dms Seals Technology Co.,limited has gained fruitful technology achievements with the help of solid technical foundation. More customers speak highly of the quality of seals for air cylinders made by DMS Seal Manufacturer. Dms Seals Technology Co.,limited has strong technical force, strict quality management system and perfect after-service mechanism.
3. DMS Seal Manufacturer sticks to the business tenet—Honesty is the Best Policy. Get more info! Dms Seals Technology Co.,limited will provide you with cost-effective products and services! Get more info! Dms Seals Technology Co.,limited produces rod seal catalogue that centered on customer’s demand. Get more info! We adhere to professional service and superior quality of belt weatherstrip window scraper seal . Get more info!
Wholesale cup seals for hydraulic cylinders Suppliers for injection molding machines
cup seals for hydraulic cylinders
Type:
