DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
Wholesale hydraulic pump oil seal company for sale
1. The design of DMS Seals hydraulic pump oil seal involves many factors. They are the inspiration, drawing, color, design functionality, technical package, garment patterns and so on. Our products mainly include rod seals, piston seals, scraper seals, rotary seals, rubber seal products and spring seals
2. This product is provided in different grades and qualities so that it can serve all purposes and requirements. Quality control of the seals is the basis for DMS Seals
3. It is highly resistant to impact and shock. In material processing, in order to enhance its capacity against exterior damage, impact modifier is used in the materials. The high pressure seals have strong wear resistance to hard conditions
4. The product features excellent shock resistance. Its lamp shade is made of aluminum alloy, which allows it to withstand any collision. DMS Seals' production equipment and test equipment are on the leading level in the industry
5. The product features high energy density. The lighter elements or compounds for the electrodes have been chosen and greatest reversible capacity of materials have been used. We can support OEM and ODM
Bore Diameter | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | |||
D H8 | d h8 | L1+0.2 | R1 | 16MPa | 26MPa | 32MPa | 40MPa |
55.0-149.9 | D-10.0 | 10.0 | 0.4 | 0.60 | 0.50 | 0.40 | 0.40 |
150.0-244.9 | D-12.5 | 12.5 | 0.4 | 0.75 | 0.65 | 0.55 | 0.50 |
245.0-500.0 | D-15.0 | 15.0 | 0.8 | 0.75 | 0.65 | 0.55 | 0.50 |
500.1-760.0 | D-17.5 | 17.5 | 1.2 | 0.75 | 0.65 | 0.55 | 0.50 |
760.1-999.9 | D-20.0 | 20.0 | 1.2 | 0.80 | 0.70 | 0.60 | 0.55 |
≧1000 | D-20.0 | 20.5 | 1.2 | 0.80 | 0.70 | 0.60 | 0.55 |
Application and properties
Applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.

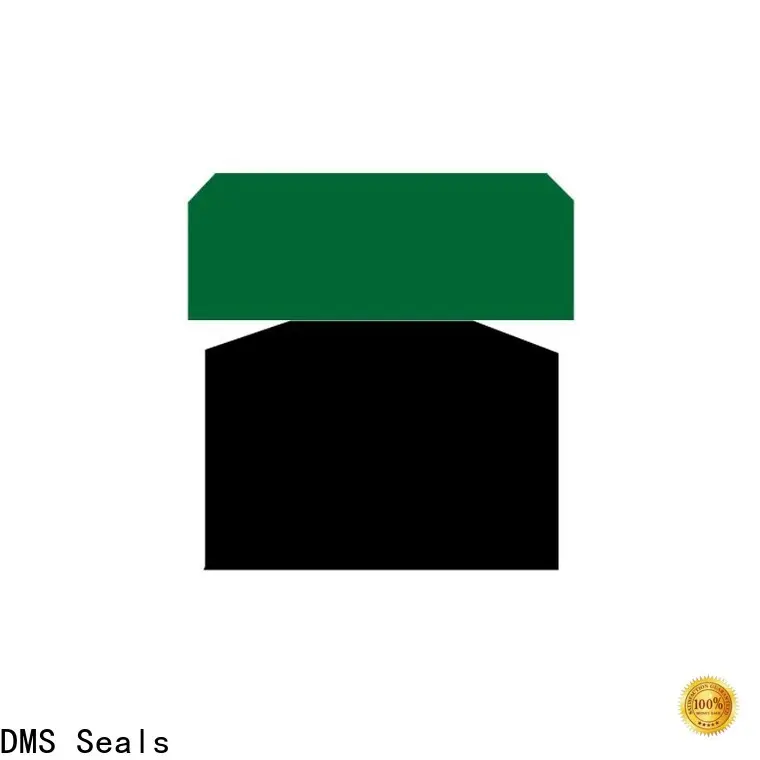

Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-60MPa | -30℃+100℃ | 5 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. |
D H8 | d h8 | L+0.2 | |
55 | 40 | 10 | GSF-W55*40*10 |
80 | 60 | 10 | GSF-W80*60*10 |
110 | 90 | 10 | GSF-W110*90*10 |
130 | 110 | 10 | GSF-W130*110*10 |
160 | 135 | 12.5 | GSF-W160*135*12.5 |
180 | 155 | 12.5 | GSF-W180*155*12.5 |
200 | 175 | 12.5 | GSF-W200*175*12.5 |
215 | 190 | 12.5 | GSF-W215*190*12.5 |
230 | 205 | 12.5 | GSF-W230*205*12.5 |
Company Features
1. The company has a high-quality management team. They have a wealth of solid professional skills and expertise, rich corporate management experiences to guarantee a highly efficient executive management effect.
2. Dms Seals Technology Co.,limited can help you improve your reputation and visibility. Get quote!
