DMS SEALS TECHNOLOGY CO.,LIMITED

The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).

DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier

Mail to: sales@dmsseals.com tel:+86-757-86235767

Wholesale oring pneumatic piston seals seal DMS Seal Manufacturer Brand

Diameter Range:

3-1600mm

Pressure Range:

0-35MPa

Temperature Range:

-30℃+200℃

Speed:

1.5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others.

Inquiry

Company Advantages
1. DMS Seals' production equipment and test equipment are on the leading level in the industry. Owing to its various quality attributes, provided pneumatic piston seals is highly appreciated by DMS Seal Manufacturer clients.
2. Dms Seals Technology Co.,limited's customer service always works on a professional level. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
3. Seal we produced has applications in a wide range of fields. piston seals,hydraulic piston seals sizes has advantages both in cost, reliability and long life, in comparison with other similar products.

Installation Recommendation

undefined

Application and properties

Standard double acting sealing, a wide range of applications. Friction resistance is very low, no crawling phenomenon, strong wear resistance, and saving installation space.

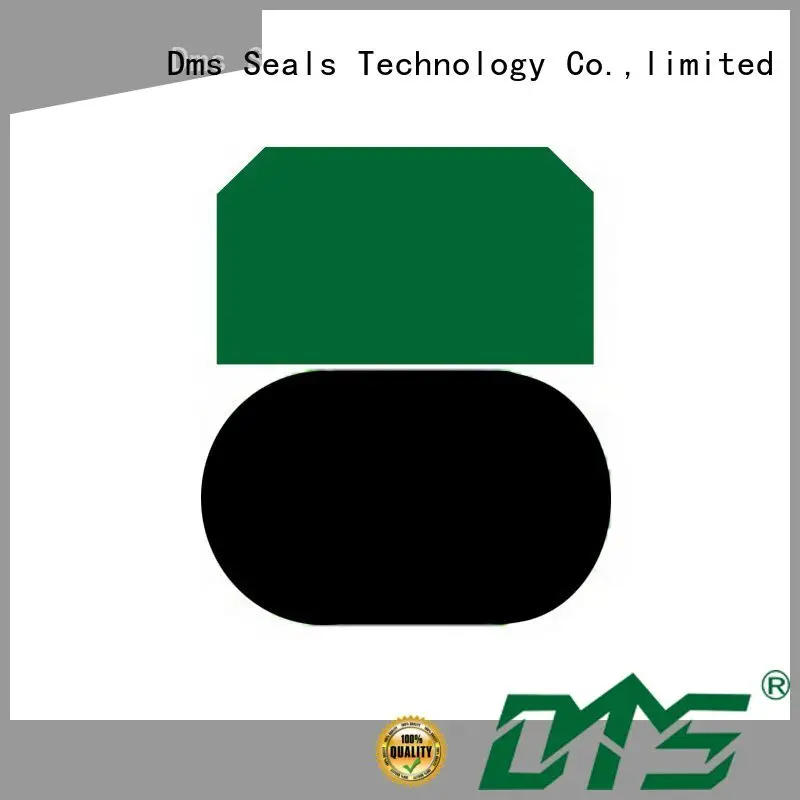

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-35MPa	-30℃+200℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others.

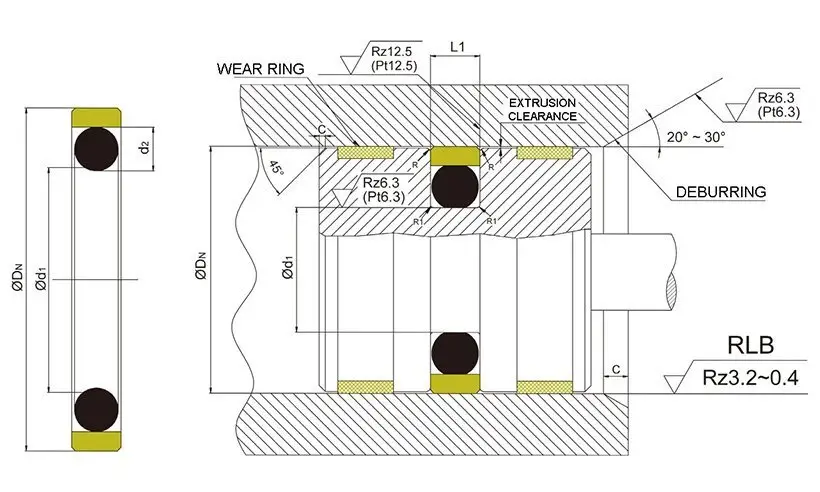

Installation Dimensions

Bore Dia.	Groove Width	Order No.	O-Ring Dimension
D H9	L1+0.2	Order No.	O-Ring Dimension
60 65 70	6 6 6	SPGO606 SPGO656 SPGO70*6	43.55.3 485.3 53*5.3
75 80 85	6 6 6	SPGO756 SPGO806 SPGO85*6	585.3 635.3 67*5.3
90 95 100	6 6 6	SPGO906 SPGO956 SPGO100*6	735.3 77.55.3 83*5.3
105 110 115	6 6 6	SPGO1056 SPGO1106 SPGO115*6	87.55.3 92.55.3 97.5*5.3
120 125 130	6 6 6	SPGO1206 SPGO1256 SPGO130*6	1035.3 1085.3 112*5.3
135 140 145	6 6 6	SPGO1356 SPGO1406 SPGO145*6	1185.3 123.195.3 128*5.3
150 155 160	6 6 6	SPGO1506 SPGO1556 SPGO160*6	132.725.3 1385.3 142.24*5.3
165 170 175	6 6 6	SPGO1656 SPGO1706 SPGO175*6	148.55.3 151.775.3 158*5.3
180 185 190	6 6 6	SPGO1806 SPGO1856 SPGO190*6	164.475.3 1675.3 173*5.3
195 80 85	6 7.9 7.9	SPGO1956 SPGO807.9 SPGO85*7.9	177.175.3 567 61*7
90 95 100	7.9 7.9 7.9	SPGO907.9 SPGO957.9 SPGO100*7.9	667 717 77.5*7
105 110 115	7.9 7.9 7.9	SPGO1057.9 SPGO1107.9 SPGO115*7.9	827 867 92*7

Installation Dimensions

Company Features
1. DMS Seal Manufacturer specializes in manufacturing piston seals with high quality and reasonable price. - Adversity Successfully Overcome Is The Highest Glory. DMS Seal Manufacturer Offers A Wide Range Of hydraulic piston seals, pneumatic piston seals, hydraulic piston seals sizes At Reasonable Price To Customers From All Over The World. Please Contact Us!
2. o-ring seal is the life of an enterprise which needs the full concentration and meticulous of employees during the work.
3. Dms Seals Technology Co.,limited has solidified and advanced its piston seals production ability with modern technology. - DMS Seal Manufacturer focuses on continuous technological innovation to improve products and services. Check now!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
