Wholesale piston piston seals DMS Seal Manufacturer Brand

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-30℃+100℃

Speed:

5m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. Owing to its elegant look and sturdy design, these sets are highly in demand amongst our customers.
2. Dms Seals Technology Co.,limited works hard to make the quality and performance of piston seals products more in line with the needs of customers. Seal we produced has applications in a wide range of fields
3. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level. hydraulic piston seals,pneumatic piston seals is well accepted in abroad market mainly because of its hydraulic piston seals sizes.
4. hydraulic piston seals produced by our advanced technology guarantees the long lifespan of o-ring seal. We have developed solutions of the sealing of special working condition
5. Our piston seals require low maintenance and are available at market competitive prices. The high pressure seals have strong wear resistance to hard conditions

Installation Recommendation

undefined

Installation Sizes

Bore Diameter	Groove Diameter	Groove Width	Radius	Radial Clearance S max.
D H8	d h8	L1+0.2	R1	16MPa	26MPa	32MPa	40MPa
55.0-149.9	D-10.0	10.0	0.4	0.60	0.50	0.40	0.40
150.0-244.9	D-12.5	12.5	0.4	0.75	0.65	0.55	0.50
245.0-500.0	D-15.0	15.0	0.8	0.75	0.65	0.55	0.50
500.1-760.0	D-17.5	17.5	1.2	0.75	0.65	0.55	0.50
760.1-999.9	D-20.0	20.0	1.2	0.80	0.70	0.60	0.55
≧1000	D-20.0	20.5	1.2	0.80	0.70	0.60	0.55

Application and properties

Applied to the hydraulic cylinder of heavy machinery and metallurgical equipment. Pressure resistance and corrosion resistance are strong, good thermal conductivity,structure anti-distortion, low friction, no crawling phenomenon.

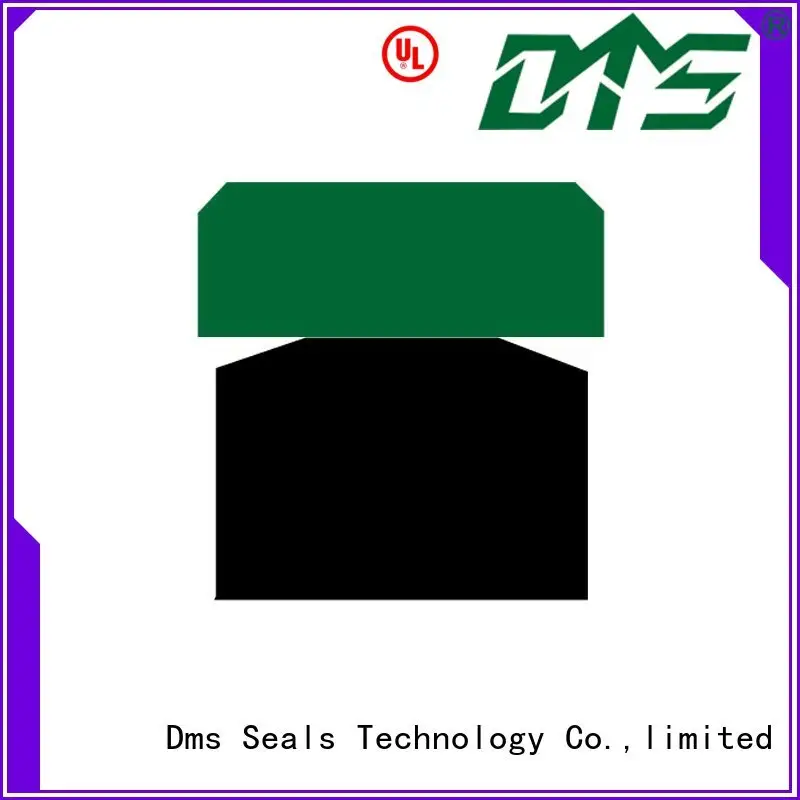

Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-30℃+100℃	5 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.
D H8	d h8	L+0.2	Order No.
55 60 70	40 45 55	10 10 10	GSF-W554010 GSF-W604510 GSF-W705510
80 90 100	60 70 80	10 10 10	GSF-W806010 GSF-W907010 GSF-W1008010
110 115 120	90 95 100	10 10 10	GSF-W1109010 GSF-W1159510 GSF-W12010010
130 140 150	110 120 125	10 10 12.5	GSF-W13011010 GSF-W14012010 GSF-W15012512.5
160 165 170	135 140 145	12.5 12.5 12.5	GSF-W16013512.5 GSF-W16514012.5 GSF-W17014512.5
180 185 190	155 160 165	12.5 12.5 12.5	GSF-W18015512.5 GSF-W18516012.5 GSF-W19016512.5
200 205 210	175 180 185	12.5 12.5 12.5	GSF-W20017512.5 GSF-W20518012.5 GSF-W21018512.5
215 220 225	190 195 200	12.5 12.5 12.5	GSF-W21519012.5 GSF-W22019512.5 GSF-W22520012.5
230 240 245	205 215 215	12.5 12.5 15	GSF-W23020512.5 GSF-W24021512.5 GSF-W24521515

Installation Dimensions

Company Features
1. Dms Seals Technology Co.,limited gathers industry elites to produce the best piston seals. - Our professional technician strictly operate machines to ensure its normal operation and produce high quality hydraulic piston seals.
2. To meet customer's requirements, DMS Seal Manufacturer always keeps the innovative technology to produce o-ring seal.
3. Dms Seals Technology Co.,limited boasts its advanced production technology. - We can customize solutions to making piston seals for your own pneumatic piston seals use.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
