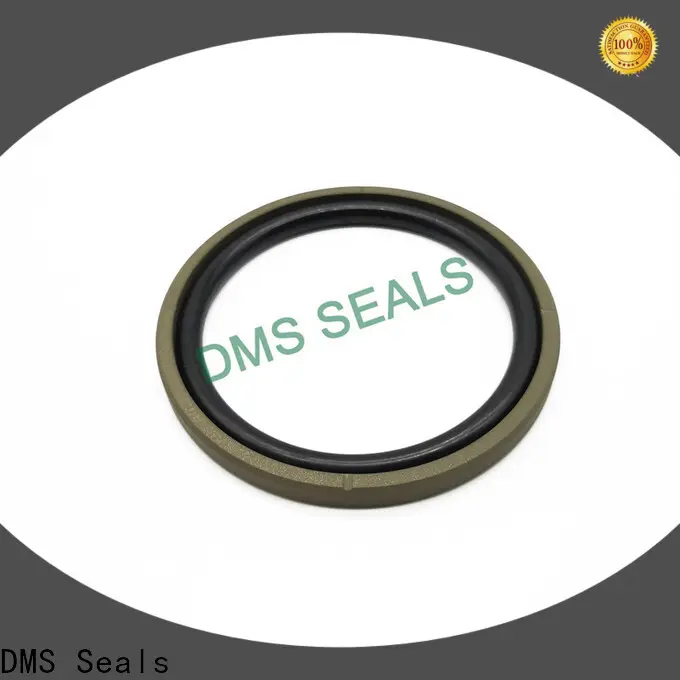

Latest pneumatic piston seals wholesale for sale

Company Advantages
1. The quality control procedures of DMS Seals [拓展关键词 starts from the receipt of raw material, over the precursor chemicals, up to the final cathode active material.
2. DMS Seals pneumatic piston seals is strictly inspected. It has gone through machine checks on dimensional stability, color consistency, etc. and also gone through visual examination by workers.
3. DMS Seals is manufactured by using RTM-technology that is the most suitable for the production of components that are exposed to meet special requirements in terms of dimensional accuracy, stability, and reproducibility.
4. The specific size or shape of DMS Seals pneumatic piston seals meets the requirements in the rubber seal industry. It is completed through a 3D design program.
5. Dms Seals Technology Co.,limited has always adhered to the business philosophy of 'integrity-based, quality-based', strictly controlled product quality and production costs, and produced pneumatic piston seals with high quality and affordable prices, which are more cost-effective compared with similar products.
6. Dms Seals Technology Co.,limited regards quality and reputation as the life of the enterprise, strictly controls product quality, strictly controls production costs, and guarantees pneumatic piston seals 's high quality, high price and high cost performance.
7. Dms Seals Technology Co.,limited Established long-term and stable cooperative relations with many raw material suppliers, the supply of raw materials is sufficient and stable, coupled with the high degree of automation of production equipment and production lines, the utilization rate of various resources in the production process is high, and the quality of pneumatic piston seals produced Good, the price is excellent, and the overall cost performance is high.
8. Based on the use of automated mechanical production equipment, our production efficiency has been greatly improved, and we can produce a large number of high-quality pneumatic piston seals in a timely manner. In addition, we have also established a strict cost control system, and insist on strictly controlling the production cost of each link , prompting the production of hydraulic sealing solutions to be highly cost-effective.
9. Dms Seals Technology Co.,limited comply with stringent requirements which make its pneumatic piston seals much more .
10. is one of the conditions for improving the pneumatic piston seals quality.
11. Given its big domestic base and good service, this would make Dms Seals Technology Co.,limited a strong candidate for a global enterprise.
12. The adoption of method can cause and satisfy production requirements.
13. The new material has been developed in Dms Seals Technology Co.,limited to prepare pneumatic piston seals combining the excellent properties of .

1. Installation Recommendation

2. Installation Sizes

Bore Diameter                         DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

6. Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF8*3.1*2.2 GSF10*5.1*2.2 GSF12*7.1*2.2	2.90*1.78 4.80*1.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF14*9.1*2.2 GSF15*10.1*2.2 GSF15*7.5*3.2	8.75*1.8 7.59*2.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF16*11.1*2.2 GSF16*8.5*3.2 GSF18*13.1*2.2	10.82*1.78 7.59*2.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF18*10.5*3.2 GSF20*15.1*2.2 GSF20*12.5*3.2	9.19*2.62 14.00*1.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF24*19.1*2.2 GSF24*16.5*3.2 GSF25*17.5*3.2	18.77*1.78 15.54*2.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25*14*4.2 GSF28*20.5*3.2 GSF28*17*4.2	13.87*3.53 20.29*2.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF30*22.5*3.2 GSF30*19*4.2 GSF32*24.5*3.2	21.89*2.62 26.70*1.78 23.47*2.62

Company Features
1. Dms Seals Technology Co.,limited's service in pneumatic piston seals industry ranks first in the domestic industry. DMS Seals has focused on strengthening and management of . Dms Seals Technology Co.,limited is a comprehensive multinational group focusing on hydraulic sealing solutions manufacturing. Being a production base of hydraulic cylinder piston rings in China, Dms Seals Technology Co.,limited has run properly over the years. By the rigorous expansion of kit seal cylinder , DMS Seals has the ability to provide high quality and finest product.
2. The combination of technology and R&D will be attributed to the development of DMS Seals. Engineering equipment for spareage piston seals in Dms Seals Technology Co.,limited is in leading status locally. Through our expertise, our packing rod seals have received more praises from customers around the world.
3. Looking into the future, our company will strive to follow our principle of "providing dependable services and to be persistently creative". We have a highly motivated goal: to be a major global market player in this industry. Under this, we will invest in pooling talents to strengthen our R&D ability. We strive to achieve the goal through product innovation superiority. We are cultivating a working environment that gives our team room and freedom to be themselves and work in a way that strengthens and adds value to our relationships. The goal of our company is to bridge the gap between customers' vision and an exquisitely crafted product ready for the market. As a socially responsible business, we provide safe and reliable packaging that uses recycled materials and reduces environmental impact.
