best hydraulic rod seals Suppliers for sale

Company Advantages
1. DMS Seal Manufacturer is elaborately manufactured. The fabric patterning, sewing and cutting crews utilize the most advanced computer controlled cutting technology available which provides precision load analysis and tight tolerance.
2. A wide range of tests on DMS Seal Manufacturer hydraulic rod seals have been performed. These tests are conducted in accordance with IEC/EN 60335 parts 1 and 2.
3. DMS Seal Manufacturer is produced with the help of many advanced shoemaking technologies including CAD pattern making, CAM, as well as digital molding technique.
4. The workmanship used in DMS Seal Manufacturer varies based on different customers' needs, mainly including common weaving, interweaving, washing, dyeing, destaticization, etc.
5. DMS Seal Manufacturer will be tested to meet the standards stipulated for the interior decoration materials, mainly includes several aspects: formaldehyde emission in the board, harmful substances in the adhesives, toxic ingredients in the paint, etc.
6. The product features stain resistance. The hydrophilic properties of the fiber surface are enhanced to reduce the adsorption of oil.
7. The product features highly stable mechanical properties. It has been treated with heat or cold temperature to enhance its properties.
8. This product is regarded as a green and eco-friendly product. It contains no heavy metals which may cause pollution.
9. This product is free of any toxic element or substance. Any harmful materials will be excluded out and it is professionally handled to eliminate these toxic elements.
10. The product is totally rust-proof. The frame and connectors of this product are all made of aluminum alloy that has been oxidized.
11. It still works stably without any abnormity even my machine operates under high pressure and temperature. - One of our customers say.
12. Since it has naturally beautiful patterns and lines, this product has the tendency to look great with great attractiveness in any space.
13. This product is a practical and luxurious bedding items choice. The soft breathable comfort it brings will make the investment worthwhile.
14. Except for providing better protection for the merchandise, it always gets the attention of clients. And that's the reasons why one need to use this product for their brands.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter    dN h9			Groove Diameter	Groove Width	Radius	Radial Clearance                S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D1 H9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
3-7.9	8-18.9	-	dN+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	dN+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	dN+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	dN+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-225.9	256-649.9	38-199.9	dN+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	dN+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	dN+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	dN+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in themedium with oil spots.

Meet the standard of GB/T 15242.3.



4. Standard materials

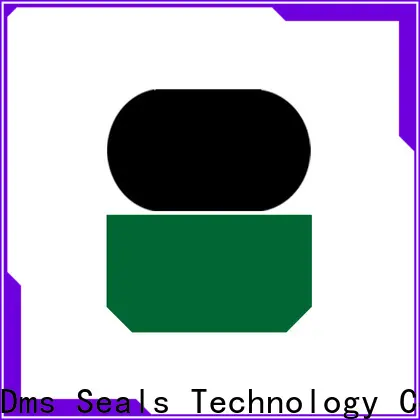

Sealing ring: filled PTFE

O-Ring: NBR / FKM



5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas



6. Installation Dimensions

Rod Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN h9	D1 H9	L1+0.2
20 20 22	27.3 30.7 29.3	3.2 4.2 3.2	GSI20*27.3*3.2 GSI20*30.7*4.2 GSI22*29.3*3.2	21.89*2.62 25.0*3.53 25.07*2.62
22 24 25	32.7 31.3 32.3	4.2 3.2 3.2	GSI22*32.7*4.2 GSI24*31.3*3.2 GSI25*32.3*3.2	26.57*3.53 26.64*2.62 28.24*2.62
25 26 28	35.7 36.7 35.3	4.2 4.2 3.2	GSI25*35.7*4.2 GSI26*36.7*4.2 GSI28*35.3*3.2	29.74*3.53 29.74*3.53 29.82*2.62
28 30 30	38.7 37.3 40.7	4.2 3.2 4.2	GSI28*38.7*4.2 GSI30*37.3*3.2 GSI30*40.7*4.2	32.92*3.53 32.99*2.62 34.52*3.53
32 32 35	39.3 42.7 42.3	3.2 4.2 3.2	GSI32*39.3*3.2 GSI32*42.7*4.2 GSI35*42.3*3.2	34.59*2.62 36.09*3.53 37.77*2.62
35 36 36	45.7 43.3 46.7	4.2 3.2 4.2	GSI35*45.7*4.2 GSI36*43.3*3.2 GSI36*46.7*4.2	37.69*3.53 39.34*2.62 40.87*3.53
38 38 40	48.7 53.1 50.7	4.2 6.3 4.2	GSI38*48.7*4.2 GSI38*53.1*6.3 GSI40*50.7*4.2	40.87*3.53 43.82*5.33 44.04*3.53

Company Features
1. Dms Seals Technology Co.,limited has grown up as a dependable manufacturer, receiving many compliments from customers overseas. We have been specializing in the production of . For decades, Dms Seals Technology Co.,limited has been writing the history of industry. For many years, Dms Seals Technology Co.,limited has been specializing in the production of high quality and customized and has become one of the famous company in the industry. The strong R&D, manufacturing, and supplying abilities of enable Dms Seals Technology Co.,limited to be one of a leading enterprise in this field in China.
2. hydraulic rod seals are produced with the highly production technology. All of our exquisite products, including rod seal catalogue , are produced by our advanced machines and skilled technicians. DMS Seal Manufacturer is proficient in enhancing our specialized abilities. Dms Seals Technology Co.,limited has been as focused on developing technology on hyd seal .
3. Dms Seals Technology Co.,limited has established the service concept of . Get info! To establish the service idea of is the base of Dms Seals Technology Co.,limited's work. Get info! Dms Seals Technology Co.,limited will stick to using the first-class technology, first-class management, first-class products and first-class service to return customer. Get info! Looking forward to the future, Dms Seals Technology Co.,limited will continue to carry forward the spirit of . Get info!
