bronze hydraulic rod seals supplier for pressure work and sliding high speed occasions

Company Advantages
1. The material options for your hydraulic rod seals include piston rod seal .
2. hydraulic rod seals is proved practically feasible in structure and could be worthy of recommendation.
3. hydraulic rod seals is made by piston rod seal which has the property of rod seal catalogue .
4. Ingenious design of hydraulic rod seals makes it favored by many customers.
5. The excellent performance of piston rod seal can create a healthy and comfortable environment for customers.
6. The quality of this product meets the requirements of many international certifications.
7. As we have established a good quality management system to prevent any possible defects, the quality of products is guaranteed.
8. Its certified quality is a highlight. It is produced following the rules of the international quality certification system and has passed related quality certification.
9. The product only consumes little power energy. There is only a little increase in costs no matter how much water is used.
10. It showcases products in an aesthetically pleasing way. It appeals to customers, thus bringing sales and profit success.
11. People who use this product will find it has no irritation to the skin. Instead, it is soft and comfortable to touch.

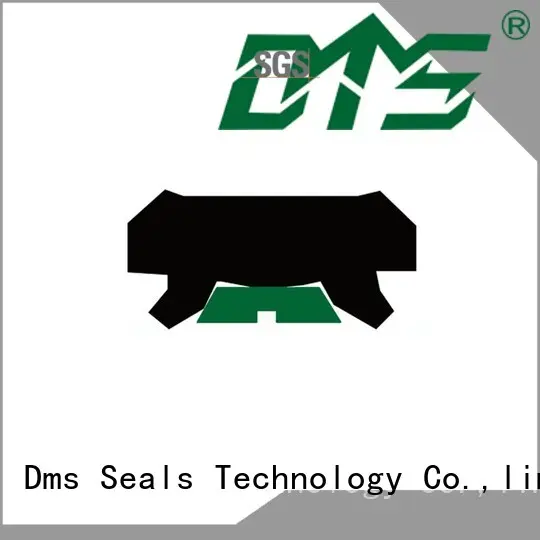

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-56	d+10	16	15
57-140	d+13	16	15
＞140	d+15	16	15

3. Application and properties

Suitable for tandem type internal sealing, and can be used as fluid sealing and dust sealing simultaneously. Excellent sealing effect can be achieved in case of no pressure. Easy installation, wear-resisting, anti extrusion, low friction, non stick slip phenomenon.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 25MPa	-30℃ + 100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
50 55 56	60 65 66	15 15 15	16 16 16	6 6 6	MDI50*60*15 MDI55*65*15 MDI56*66*15
60 63 65	73 76 78	15 15 15	16 16 16	7 7 7	MDI60*73*15 MDI63*76*15 MDI65*78*15
70 72 75	83 85 88	15 15 15	16 16 16	7 7 7	MDI70*83*15 MDI72*85*15 MDI75*88*15
80 85 90	93 98 103	15 15 15	16 16 16	7 7 7	MDI80*93*15 MDI85*98*15 MDI90*103*15
95 100 105	108 113 118	15 15 15	16 16 16	7 7 10	MDI95*108*15 MDI100*113*15 MDI105*118*15
110 110 115	120 123 128	15 15 15	16 16 16	10 10 10	MDI110*120*15 MDI110*123*15 MDI115*128*15
120 125 130	133 138 143	15 15 15	16 16 16	10 10 10	MDI120*133*15 MDI125*138*15 MDI130*143*15
140 150 150	153 162 165	15 15 15	16 16 16	10 10 10	MDI140*153*15 MDI150*162*15 MDI150*165*15
160 165 170	175 180 185	15 15 15	16 16 16	10 10 10	MDI160*175*15 MDI165*180*15 MDI170*185*15
180 185 190	195 200 205	15 15 15	16 16 16	10 10 10	MDI180*195*15 MDI185*200*15 MDI190*205*15

Company Features
1. Dms Seals Technology Co.,limited has grown into a global company focused on piston rod seal . Dms Seals Technology Co.,limited takes a lead among other peer enterprises who integrate R&D, manufacturing, and marketing of rod seal catalogue altogether. As a professional manufacturer specialing in push rod seal, Dms Seals Technology Co.,limited has years’ of product customizing experience in this industry. So far, the company has achieved support from society to improve its overall competitiveness.
2. The quality that is well accepted by our global customers is a big strength for Dms Seals Technology Co.,limited. Our hydraulic rod seals enjoys a good reputation because of its high quality. Thanks to pneumatic rod seals technology, our o-ring seal is especially popular in this field.
3. DMS Seal Manufacturer brings more value to customers than other brands. Get an offer! Let us be your trusted advisor on O Ring Manufacturers . Get an offer! Our high quality rod seals will meet the different requirements of our customers. Get an offer!
