bronze o-ring seal with nbr or fkm o ring for sale

Company Advantages
1. The raw materials of DMS Seal Manufacturer pneumatic rod seals are safe and non-toxic. These materials have been tested and do not contain toxic ingredients such as formaldehyde and aromatic amines.
2. DMS Seal Manufacturer pneumatic rod seals has been tested in various aspects. It has passed material testing (e.g. glow wire test, needle flame), radiation testing, chemical hazards testing, and EMF testing.
3. DMS Seal Manufacturer pneumatic rod seals is well designed. Its design covers panel design, program design including PLC, drive systems, operator interface design, control systems design, etc.
4. DMS Seal Manufacturer pneumatic rod seals is uniquely designed. Our product designers have chosen a shape and use new fabrics, new colors, fabric manipulation and other bedding structures.
5. The product features overheating protection. It has a secure device to prevent it from the high temperature when there is an accident.
6. This product is somewhat fire retardant. The insulating materials used for this product meet higher demands in glow wire testing.
7. The product functions properly in an environment with a certain level of electromagnetic disturbance. It won't be easily affected by other devices.
8. Dms Seals Technology Co.,limited has changed their development way to depending on technology creativity on o-ring seal.
9. Our o-ring seal covers high technology of pneumatic rod seals and rod seal catalogue .
10. pneumatic rod seals innovated by Dms Seals Technology Co.,limited is highly marketable in world markets.
11. Dms Seals Technology Co.,limited provides customers with one-stop products including pneumatic rod seals .
12. Dms Seals Technology Co.,limited is a professional manufacturer and exporter that is concerned with the design,development and production of pneumatic rod seals and rod seal catalogue .

1. Installation Recommendation

2. Installation Sizes

d e8	D H9	L D10	H
22-39	d+7.2	4.0	3.5
40-79	d+10.0	5.0	4.5
80-100	d+13.8	7.5	7.0
＞100-250	d+20.0	10.0	9.5
＞250-600	d+30.0	15.0	14.5
＞600	d+40.0	20.0	19.5

3. Application and properties

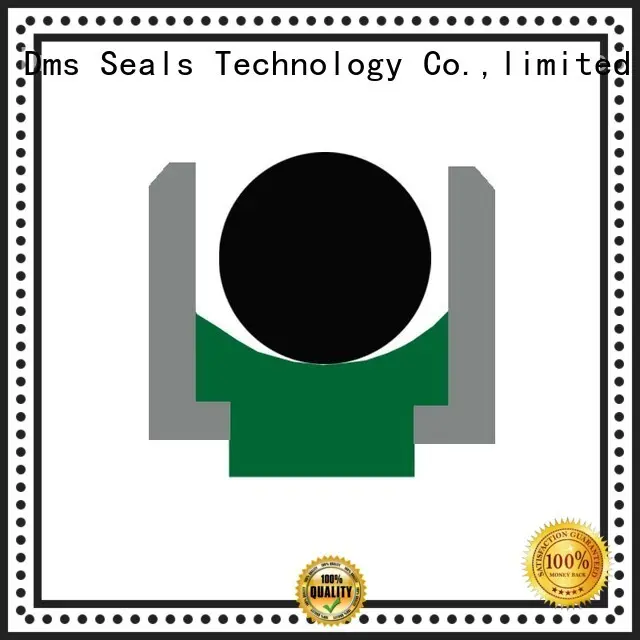

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 45MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
22 25 28	29.2 32.2 35.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI22*29.2*3.5 RDI25*32.2*3.5 RDI28*35.2*3.5
30 32 35	37.2 39.2 42.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI30*37.2*3.5 RDI32*39.2*3.5 RDI35*42.2*3.5
36 40 42	43.2 50 52	3.5 4.5 4.5	4 5 5	6 6 6	RDI36*43.2*3.5 RDI40*50*4.5 RDI42*52*4.5
45 50 55	55 60 65	4.5 4.5 4.5	5 5 5	6 6 6	RDI45*55*4.5 RDI50*60*4.5 RDI55*65*4.5
56 60 63	66 70 73	4.5 4.5 4.5	5 5 7.5	6 7 7	RDI56*66*4.5 RDI60*70*4.5 RDI63*73*4.5
65 70 72	75 80 82	4.5 4.5 4.5	7.5 7.5 7.5	7 7 7	RDI65*75*4.5 RDI70*80*4.5 RDI72*82*4.5
75 80 85	85 93.8 98.8	4.5 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI75*85*4.5 RDI80*93.8*7.0 RDI85*98.8*7.0
90 95 100	103.8 108.8 113.8	7.0 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI90*103.8*7.0 RDI95*108.8*7.0 RDI100*113.8*7.0
105 110 115	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	RDI105*125*9.5 RDI110*130*9.5 RDI115*135*9.5
120 125 130	140 145 150	9.5 9.5 9.5	10 10 10	10 10 10	RDI120*140*9.5 RDI125*145*9.5 RDI130*150*9.5

Company Features
1. Dms Seals Technology Co.,limited is a professional o-ring seal manufacturer for global customers. Specialized in the industry of O Ring Manufacturers , Dms Seals Technology Co.,limited is a backbone exporter in China. Dms Seals Technology Co.,limited has gained great popularity among customers for its high quality of rod seals . DMS Seal Manufacturer is committed to technology innovation and pneumatic rod seals to seek sustainable development for hydraulic rod seals .
2. Dms Seals Technology Co.,limited has successfully established a strong technical strength. Our factory has a range of advanced production equipment that can make better o-ring seal. Being produced based on the global standard, o-ring seal is of greatest quality.
3. Going forward, Dms Seals Technology Co.,limited aims to expand its strong positions in o-ring seal field. Ask online! Dms Seals Technology Co.,limited is ready to build long-term partnerships with you. Ask online! We will serve you with our best o-ring seal and service. Ask online!
