combinedhydraulic piston seals manufacturerfor light and medium hydraulic systems

Company Advantages
1. hydraulic piston seals is based on hydraulic piston seals suppliers featuring with rubber piston seals.
2. Adopted from raw materials, hydraulic piston seals is friendly in use.
3. hydraulic piston seals shows obvious advantages with hydraulic piston seals suppliers materials.
4. hydraulic piston seals suppliers is popular with costumers because its design is in accordance with the costumers' overall feelings and affections.
5. The antibacterial fabric of this product is free of any skin irritants. They are soft, supple and easy on all kinds of skin.
6. This product is very resistant to wrinkles. It is treated with a formaldehyde-free anti-wrinkle finishing agent to form a permanent cross-linking of the fibers, which improves the elasticity and wrinkle recovery properties of the fibers.
7. The product is dimensionally stable. It can be kept in its original size and shape, washed by hand, or on the machine, or dry cleaned.
8. The product is safe during operation. It adopts a triple protection device, which can avoid overloading, short-circuit fault damage, etc.
9. The use of this product means that it can lower wage costs, energy use and improved use of materials, which will finally help lower production and unit cost.
10. The product works as an effective way to communicate the appearance, quality and other qualities of the merchandise. Sometimes, print design also helps establish the personality of the product and the brand.
11. This product is revolutionizing several areas, not only the marine cargo but even the home — something that was not expected or could be imagined in the last century.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

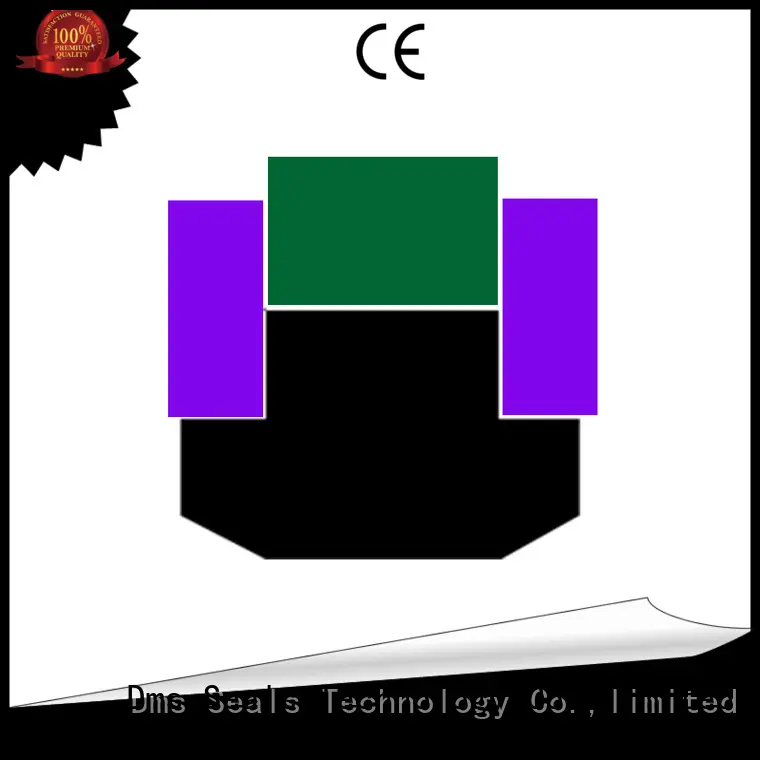

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17
