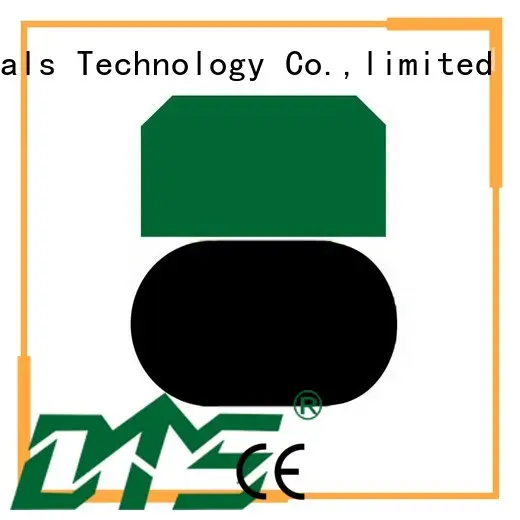

DMS Seal Manufacturer Brand nbrfkm piston oring piston seals

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃ +200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water and others

Inquiry

Company Advantages
1. Moreover, we will cultivate our business little by little and perform each task step by step. Abiding by the management principle of 'Three-Good & One-Fairness (good quality, good credibility, good services, and reasonable price), we are looking forward to welcoming the new era with you.DMS Seals' production equipment and test equipment are on the leading level in the industry
2. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience. DMS Seal Manufacturer believes the achievement of customer expectation will enhance the customer satisfication.
3. DMS Seals provides professional design and production of high-grade o-ring seals. piston seals,pneumatic piston seals is considered as the most promising hydraulic piston seals sizes for hydraulic piston seals.
4. hydraulic piston seals offers the benefit of superior performance and hydraulic cylinder piston seals. Quality control of the seals is the basis for DMS Seals

Installation Recommendation

undefined

Installation Sizes

Bore Diameter DN H9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	d1 h9	L1+0.2	R1	10MPa	20MPa	40MPa	d2
8-14.9	15-39.9	-	DN-4.9	2.2	0.4	0.3	0.20	0.15	1.78
15-39.9	40-79.9	-	DN-7.5	3.2	0.6	0.4	0.25	0.15	2.62
40-79.9	80-132.9	15-39.9	DN-11.0	4.2	1.0	0.4	0.25	0.20	3.53
80-132.9	133-329.9	40-79.9	DN-15.5	6.3	1.3	0.5	0.30	0.20	5.33
133-329.9	330-699.9	80-132.9	DN-21.0	8.1	1.8	0.6	0.35	0.25	7.00
330-669.9	670-99.9	133-329.9	DN-24.5	8.1	1.8	0.6	0.35	0.25	7.00
670-999.9	≥1000	330-669.9	DN-28.0	9.5	2.5	0.7	0.50	0.30	8.40
≥1000	≥1000	≥1000	DN-38.0	13.8	3.0	1.0	0.70	0.60	12.00

Application and properties

Standard double acting seal. Suitable for reciprocating motion, allowing larger extrusion clearances, has wide application. Dynamic and static sealing property are excellent, be able to work in dusty condition. Low friction, simple groove, strong adaptability to work conditions.

Standard materials

Sealing ring: filled PTFE

O-ring: NBR / FKM

Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3-1600mm	0-60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water and others

Installation Dimensions

Bore Dia.	Groove Dia.	Groove Width	Order No.	O-Ring Dimensions
DN H9	d1 h9	L1+0.2	Order No.	O-Ring Dimensions
8 10 12	3.1 5.1 7.1	2.2 2.2 2.2	GSF83.12.2 GSF105.12.2 GSF127.12.2	2.901.78 4.801.8 6.70*1.8
14 15 15	9.1 10.1 7.5	2.2 2.2 3.2	GSF149.12.2 GSF1510.12.2 GSF157.53.2	8.751.8 7.592.62 8.75*1.8
16 16 18	11.1 8.5 13.1	2.2 3.2 2.2	GSF1611.12.2 GSF168.53.2 GSF1813.12.2	10.821.78 7.592.62 12.42*1.78
18 20 20	10.5 15.1 12.5	3.2 2.2 3.2	GSF1810.53.2 GSF2015.12.2 GSF2012.53.2	9.192.62 14.001.78 12.37*2.62
24 24 25	19.1 16.5 17.5	2.2 3.2 3.2	GSF2419.12.2 GSF2416.53.2 GSF2517.53.2	18.771.78 15.542.62 17.12*2.62
25 28 28	14 20.5 17	4.2 3.2 4.2	GSF25144.2 GSF2820.53.2 GSF28174.2	13.873.53 20.292.62 15.47*3.53
30 30 32	22.5 19 24.5	3.2 4.2 3.2	GSF3022.53.2 GSF30194.2 GSF3224.53.2	21.892.62 26.701.78 23.47*2.62
32 35 35	21 27.5 24	4.2 3.2 4.2	GSF32214.2 GSF3527.53.2 GSF35244.2	20.223.53 26.642.62 23.40*3.53
36 36 38	28.5 25 30.5	3.2 4.2 3.2	GSF3628.53.2 GSF36254.2 GSF3830.53.2	28.242.62 23.393.53 29.82*2.62
38 40 40	27 32.5 29	4.2 3.2 4.2	GSF38274.2 GSF4032.53.2 GSF40294.2	25.863.53 31.422.62 28.17*3.53
45 45 48	37.5 34 40.5	3.2 4.2 3.2	GSF4537.53.2 GSF45344.2 GSF4840.53.2	36.52.62 32.923.53 36.09*3.53
48 50 50	37 39 34.5	4.2 4.2 6.3	GSF48374.2 GSF50394.2 GSF5034.56.3	36.093.53 37.703.53 32.69*5.33
52 52 55	41 36.5 44	4.2 6.3 4.2	GSF52414.2 GSF5236.56.3 GSF55444.2	40.873.53 355.33 44.04*3.53
55 56 56	39.5 45 40.5	6.3 4.2 6.3	GSF5539.56.3 GSF56454.2 GSF5640.56.3	385.33 44.043.53 39*5.33
60 60 63	49 44.5 52	4.2 6.3 4.2	GSF60494.2 GSF6044.56.3 GSF63524.2	47.223.53 42.55.33 50.39*3.53
63 64 64	47.5 53 48.5	6.3 4.2 6.3	GSF6347.56.3 GSF64534.2 GSF6448.56.3	465.33 51.53.53 46.99*5.33
65 65 70	54 49.5 59	4.2 6.3 4.2	GSF65544.2 GSF6549.56.3 GSF70594.2	53.573.53 485.33 56.74*3.53
70 75 75	54.5 64 59.5	6.3 4.2 6.3	GSF7054.56.3 GSF75644.2 GSF7559.56.3	53.345.33 63.093.53 56.52*5.33
80 80 85	69 64.5 74	4.2 6.3 4.2	GSF80694.2 GSF8064.56.3 GSF85744.2	66.273.53 62.875.33 72.62*3.53
85 90 90	69.5 79 74.5	6.3 4.2 6.3	GSF8569.56.3 GSF90794.2 GSF9074.56.3	69.225.33 78.973.53 72.39*5.33
95 95 100	84 79.5 89	4.2 6.3 4.2	GSF95844.2 GSF9579.56.3 GSF100894.2	82.143.53 78.745.33 88.49*3.53
100 105 105	84.5 94 89.5	6.3 4.2 6.3	GSF10084.56.3 GSF105944.2 GSF10589.56.3	81.925.33 91.673.53 88.27*5.33
