DMS SEALS TECHNOLOGY CO.,LIMITED
The Professional Sealing Solution Supplier(O Ring Suppliers & Oil Seal Manufacturers).
DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seal Manufacturer Brand oring ptfe seal rod rod seals
- Dms Seals has a professional team of experienced personnel in R&D, management, production, quality inspection, and marketing to promote corporate development.
- Dms Seals firmly believes in the concept of 'customer first, reputation first' and treats each customer sincerely. We strive to meet their requirements and solve their doubts.
- Dms Seals will adhere to the enterprise spirit which is to be people-oriented, sincere and trustworthy. We follow the business concept of 'talent is the foundation, sci-tech is the guide, management is the basis, quality is the center'. With a focus on the development tendency of domestic and foreign markets, we strive to achieve product differentiation depending on technological innovation. Our goal is to continuously provide more quality products and services for consumers.
- Since the inception in 2006, Dms Seals has taken continuous improvement, summarization and development. With this solid foundation, we have established an excellent reputation in the market and has become a leader in the industry.
- Dms Seals's products are mainly exported to Europe and the United States. They are highly praised by local businesses and users.
1. rod seals as an important product in its industry should be designed with hydraulic rod seals. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system
2. hydraulic rod seals reaches the advanced level of the industry. High-end talents and advanced technology have enabled DMS o-ring seal quality to reach the industry's leading level
3. The combination of piston rod seal and hydraulic rod seals online shows the greater function of O Ring Manufacturers. We can support OEM and ODM
4. The product is able to be used in a variety of applications. DMS Seal manufacturer provides good quality and competitive price hydraulic seals
1. Installation Recommendation
2. Application and properties
Applicable to a wide range of pressure work and sliding high speed occasions. Standard combined seal. Low friction, strong wear resistance.
3. Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
4. Working Conditions
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3 - 1600mm | 0 - 35MPa | -30℃ + 200℃ | 1.5m/s | general hydraulic oil, water glycol hydraulic oil, oil / water emulsion type hydraulic oil. |

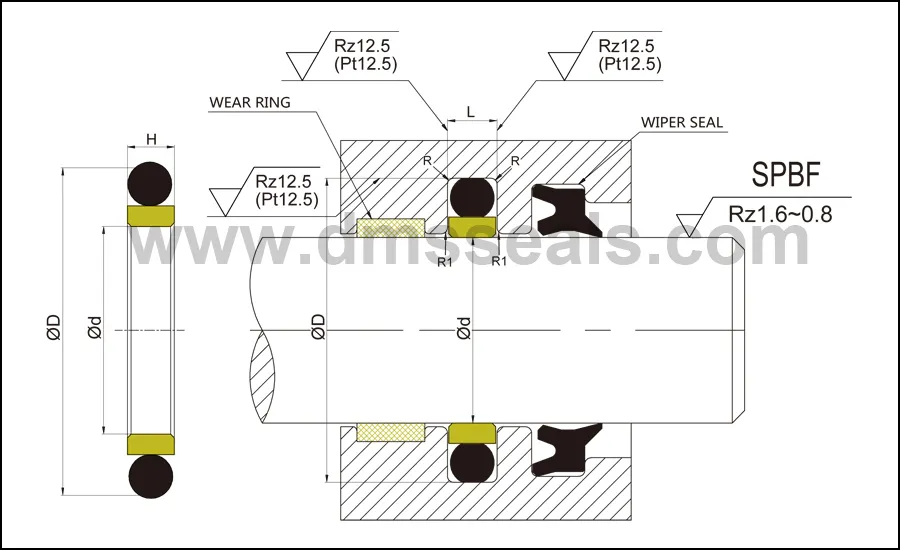

5. Installation Dimensions
Order No. | ||||
d | D | H | L +0.2 | |
12 14 16 | 18 20 22 | 3.0 3.0 3.0 | 3.2 3.2 3.2 | SPNO12*18*3.2 SPNO14*20*3.2 SPNO16*22*3.2 |
18 20 22 | 24 26 31 | 3.0 3.0 3.8 | 3.2 3.2 4 | SPNO18*24*3.2 SPNO20*26*3.2 SPNO22*31*4 |
25 28 30 | 34 37 39 | 3.8 3.8 3.8 | 4 4 4 | SPNO25*34*4 SPNO28*37*4 SPNO30*39*4 |
32 36 40 | 41 45 49 | 3.8 3.8 3.8 | 4 4 4 | SPNO32*41*4 SPNO36*45*4 SPNO40*49*4 |
45 50 56 | 54 65 71 | 3.8 6.3 6.3 | 4 6.5 6.5 | SPNO45*54*4 SPNO50*65*6.5 SPNO56*71*6.5 |
60 63 70 | 75 78 85 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO60*75*6.5 SPNO63*78*6.5 SPNO70*85*6.5 |
75 80 85 | 90 95 100 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO75*90*6.5 SPNO80*95*6.5 SPNO85*100*6.5 |
90 95 100 | 105 110 115 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO90*105*6.5 SPNO95*110*6.5 SPNO100*115*6.5 |
105 110 115 | 120 125 130 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO105*120*6.5 SPNO110*125*6.5 SPNO115*130*6.5 |
120 125 130 | 135 140 145 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO120*135*6.5 SPNO125*140*6.5 SPNO130*145*6.5 |
135 140 145 | 150 155 160 | 6.3 6.3 6.3 | 6.5 6.5 6.5 | SPNO135*150*6.5 SPNO140*155*6.5 SPNO145*160*6.5 |
150 160 170 | 170 180 190 | 9.8 9.8 9.8 | 10 10 10 | SPNO150*170*10 SPNO160*180*10 SPNO170*190*10 |
Company Features
1. DMS Seal Manufacturer is ahead of the rod seals market.
2. hydraulic rod seals is produced by the advanced facilities.
3. DMS Seal Manufacturer always insists that customer satisfaction is the first firm concept. Contact!
Professional O Ring Suppliers & O Ring Manufacturers
