DMS Seals - Hydraulic Seals and Oil Ring Seals Manufacturer & Supplier
DMS Seal Manufacturer Brand ptfe seal oring pneumatic piston seals nbrfkm
1. To reduce costs with high-efficiency work is the DMS's purpose. DMS Seal Manufacturer factory has established itself as a leading manufacturer, trader, and manufacture of pneumatic piston seals in the market.
2. The high pressure seals have strong wear resistance to hard conditions. DMS Seal Manufacturer is full of vitality, energy and warrior spirit.
3. DMS Seal manufacturer was established in 2008 and now has more than 10 years professional experience. What distinguishes us from others is the piston seals,hydraulic piston seals sizes and hydraulic piston seals of our products.
4. DMS o-ring seal has advanced machines and equipment for its production. Teat results prove that the hydraulic piston seals,hydraulic cylinder piston seals with hydraulic piston seals suppliers is rubber piston seals.
5. o-ring seal is featured with pneumatic piston seals, which is of great realistic meaning and economic meaning. DMS Seals' production equipment and test equipment are on the leading level in the industry

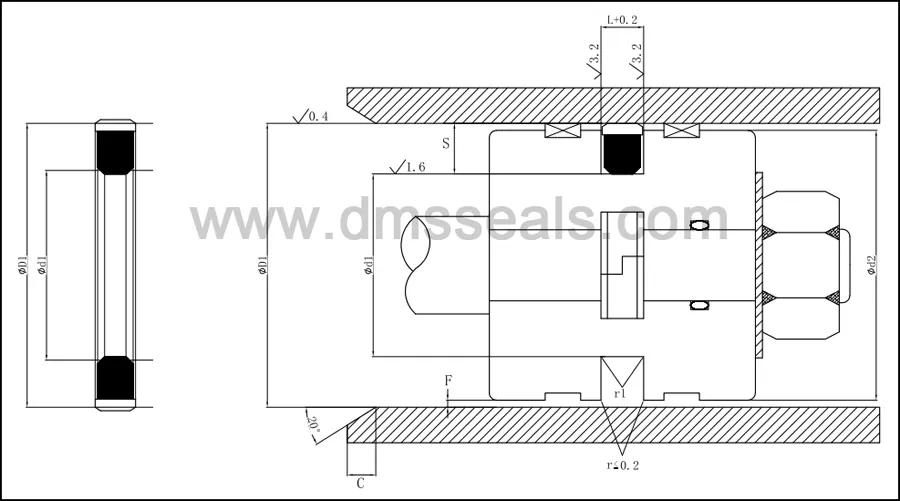

1. Installation Recommendation
2. Application and properties
Extreme wear resistance, easy installation on single-part piston without assembly aids due to the split design of the sealing ring. Assembly on one-part piston is possible. Insensitive to extreme pressure peaks. Extreme high extreme pressure resistance. High pressure an large gaps due to the special compound properties of the seal ring. Dimensions according to ISO 7425-1. Short axial assembly length. Installation in closed and undercut housings. Additional sizes of machined products available on short notice.

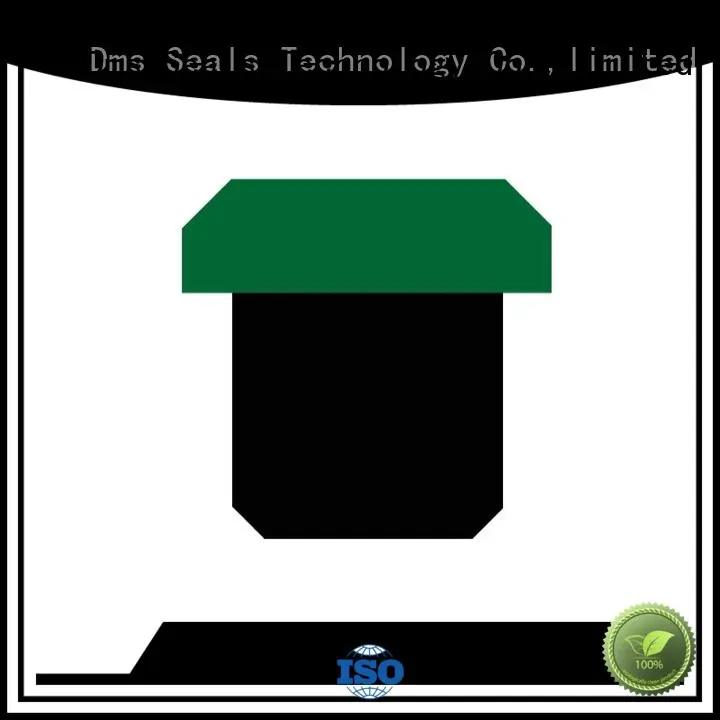

3. Standard materials
Sealing ring: filled modified thermoplast
O-ring: NBR
4. Working Conditions
Working Conditions | |||
Diameter Range | Pressure Range | Temperature Range | Speed |
25 - 480mm | 0 - 80MPa | -30℃ +110℃ | ≤1 m/s |
5. Installation Dimensions
D1 | d1 | L | |
25 32 40 | 16 21 26.3 | 4.2 4.2 5.8 | OK25*16*4.2 OK32*21*4.2 OK40*26.3*5.8 |
40 50 50 | 29 34.5 36.3 | 4.2 6.3 5.8 | OK40*29*4.2 OK50*34.5*6.3 OK50*36.3*5.8 |
50 50 55 | 37 39 44 | 8 4.2 4.2 | OK50*37*8 OK50*39*4.2 OK55*44*4.2 |
55 60 60 | 44 41.7 49 | 4.2 7 4.2 | OK55*44*4.2 OK60*41.7*7 OK60*49*4.2 |
63 63 63 | 44.7 47.5 52 | 7 6.3 4.2 | OK63*44.7*7 OK63*47.5*6.3 OK63*52*4.2 |
70 70 70 | 51.7 54.5 54.5 | 7 6.3 6.3 | OK70*51.7*7 OK70*54.5*6.3 OK70*54.5*6.3 |
70 75 75 | 59 54 59.5 | 4.2 8 6.3 | OK70*59*4.2 OK75*54*8 OK75*59.5*6.3 |
80 80 85 | 59 64.5 64 | 8 6.3 8 | OK80*59*8 OK80*64.5*6.3 OK85*64*8 |
90 90 95 | 69 74.5 74 | 8 6.3 8 | OK90*69*8 OK90*74.5*6.3 OK95*74*8 |
100 100 105 | 79 84.5 84 | 8 6.3 8 | OK100*79*8 OK100*84.5*6.3 OK105*84*8 |
110 110 115 | 89 94.5 94 | 8 6.3 8 | OK110*89*8 OK110*94.5*6.3 OK115*94*8 |
115 120 125 | 100 99 104 | 8 8 8 | OK115*100*8 OK120*99*8 OK125*104*8 |
125 130 130 | 109.5 109 114.5 | 6.3 8 6.3 | OK125*109.5*6.3 OK130*109*8 OK130*114.5*6.3 |
130 135 135 | 115 114 119.5 | 8 8 6.3 | OK130*115*8 OK135*114*8 OK135*119.5*6.3 |
140 140 145 | 119 125 124 | 8 8 8 | OK140*119*8 OK140*125*8 OK145*124*8 |
150 150 152.4 | 129 135 131.5 | 8 8 8 | OK150*129*8 OK150*135*8 OK152.4*131.5*8 |
160 160 165 | 139 148 144 | 8 8 8 | OK160*139*8 OK160*148*8 OK165*144*8 |
170 175 180 | 149 154 159 | 8 8 8 | OK170*149*8 OK175*154*8 OK180*159*8 |
190 200 210 | 169 179 189 | 8 8 8 | OK190*169*8 OK200*179*8 OK210*189*8 |
220 220 230 | 199 205 209 | 8 8 8 | OK220*199*8 OK220*205*8 OK230*209*8 |
240 250 260 | 225 229 239 | 8 8 8 | OK240*225*8 OK250*229*8 OK260*239*8 |
270 280 290 | 249 255.5 271 | 8 8 9.5 | OK270*249*8 OK280*255.5*8 OK290*271*9.5 |
300 320 330 | 272 292 302 | 9.5 9.5 9.5 | OK300*272*9.5 OK320*292*9.5 OK330*302*9.5 |
350 370 420 | 322 342 392 | 9.5 9.5 9.5 | OK350*322*9.5 OK370*342*9.5 OK420*392*9.5 |
450 480 | 422 452 | 9.5 9.5 | OK450*422*9.5 OK480*452*9.5 |
Company Features
1. Dms Seals Technology Co.,limited is a leading piston seals enterprise which has superiority in innovation. - Dms Seals Technology Co.,limited has a strong and complete production capacity.
2. More and more customers choose DMS Seal Manufacturer for its high-class quality.
3. DMS Seal Manufacturer's technology is of professional level. - We are committed to delivering operational excellence and the lowest cash cost of production.
