DMS Seal Manufacturer bronze hydraulic rod seals online mdi to high and low speed

Company Advantages
1. DMS Seal Manufacturer hydraulic rod seals online is designed and crafted by a team of experts following the international standards.
2. DMS Seal Manufacturer hydraulic rod seals online is thoughtfully designed by our experienced experts according to the strict design process.
3. Reliable raw materials: the raw materials of DMS Seal Manufacturer hydraulic rod seals online are subject to rules and regulations of the factory. They are selected from a supplier that possesses unique know-how and technology.
4. The raw materials of DMS Seal Manufacturer hydraulic rod seals online are selected by our team of professionals who have visited dozens of raw material suppliers and analyzed the data through high-intensity test experiments.
5. DMS Seal Manufacturer o-ring seal is scientifically designed based on the production standards.
6. Statistical quality control techniques are used in the production process to ensure consistent quality.
7. The product is guaranteed to be of high quality and excellent performance as all factors that affect its quality and performance in the production would be detected immediately and then corrected by our well-trained QC staff.
8. Strict quality checks are performed on different quality parameters throughout the production process to ensure that the product is completely defect free and performs well.
9. As the product has gained the trust of the clients around the world, it will be more widely used in the future.
10. We have great confidence in its wide application and market prospect.
11. The product sells well and occupied a large market share at home and abroad.

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d e8	Groove Diameter D H9	Groove Width L D10	H
20-30	d+8	7.5	7
31-35	d+8	7.5	7
36-44	d+8	8.5	8
45-55	d+10	11.0	10
56-119	d+15	13.0	12
120-319	d+20	17.0	16
320-499	d+30	21.0	20
＞499	d+40	26.5	25

3. Application and properties

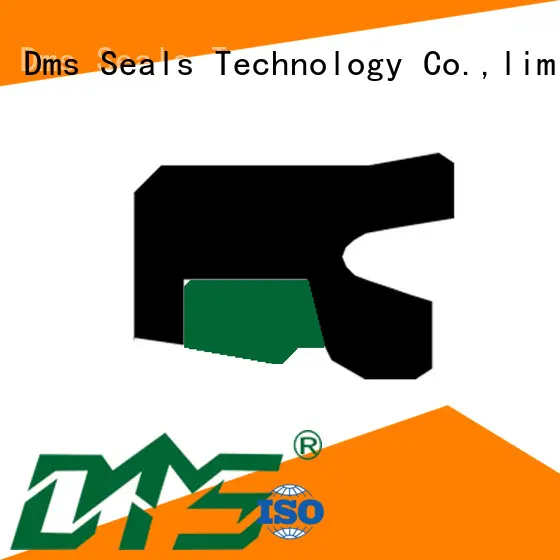

Applicable to hydraulic cylinder piston rod, generally used in conjunction with the guide sleeve. The special-shaped Y-Ring has the sealing function, provides the elasticity to the seal ring, and compensates for the abrasion. Wear-resisting, non stick slip phenomenon. It has a high stability under pressure and harsh conditions.

4. Standard materials

Sealing ring: filled PTFE

Y-Ring: NBR / PU

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-30℃ +100℃	1 m/s	Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others.

6. Installation Dimensions

Rod Dia.	Outer Dia.	Groove Width	Order No.
d e8	D H9	L D10
20 22 23	28 30 31	7.5 7.5 7.5	TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5
25 28 30	33 36 38	7.5 7.5 7.5	TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5
32 35 36	40 43 44	7.5 7.5 8.5	TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5
40 42 45	48 50 55	8.5 8.5 11	TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11
47 48 50	57 58 60	11 11 11	TDI47*57*11 TDI48*58*11 TDI50*60*11
52 55 56	62 65 71	11 11 13	TDI52*62*11 TDI55*65*11 TDI56*71*13
60 63 65	75 78 80	13 13 13	TDI60*75*13 TDI63*78*13 TDI65*80*13
68 70 72	78 85 87	13 13 13	TDI68*78*13 TDI70*85*13 TDI72*87*13
75 80 83	90 95 98	13 13 13	TDI75*90*13 TDI80*95*13 TDI83*98*13

Company Features
1. With excellent o-ring seal and considerable service, DMS Seal Manufacturer aims higher in this industry. DMS Seal Manufacturer is a specialist who mainly produces rod seals . Dms Seals Technology Co.,limited has experienced a good development with strengths of technology and capacity. Mainly producing O Ring Manufacturers is an important task for DMS Seal Manufacturer.
2. Dms Seals Technology Co.,limited continues to boost its technical and professional capacities with its hydraulic rod seals products. Thanks to the advance technology, Dms Seals Technology Co.,limited greatly increases the output of o-ring seal. Dms Seals Technology Co.,limited is outfitted with some of the most innovative manufacturing machines. DMS Seal Manufacturer uses cutting-edge technology to enhance market position.
3. DMS Seal Manufacturer will never rest on ready-made achievements but always seek better development. Call! DMS Seal Manufacturer is the life line of Dms Seals Technology Co.,limited, so we will respect every feedback from our customers. Call! With the dream of 'bringing the best o-ring seal to more people', Dms Seals Technology Co.,limited has determined to expand overseas market! Call! Providing the best professional service for customers is the eternal mission of DMS Seal Manufacturer. Call! Customization service is available for our o-ring seal. Call!

DMS Seal Manufacturer bronze hydraulic rod seals online mdi to high and low speed

o-ring seal

Type:mdi 、 Type1:gsj
