DMS Seal Manufacturer bronze hydraulic rod seals supplier for sale

Company Advantages
1. The series of hydraulic rod seals are hydraulic rod seals online , will bring the best result of pneumatic rod seals for you.
2. The design of hydraulic rod seals is completed by famous designers from international companies.
3. hydraulic rod seals made from hydraulic rod seals online materials are especially fit for the usage in pneumatic rod seals field.
4. Our professional technicians have a clear understanding of the quality standards of the industry, and they test the products under their vigilance.
5. A strict internal quality control system ensures that products meet international standards.
6. The product is tested by our QC team who regards the testing as an important factor of product performance. Thus, the conducted testing is highly in line with international testing standards.
7. It turns out to be efficient that the successful establishment of complete sales network will contribute to the development of DMS Seal Manufacturer.
8. Dms Seals Technology Co.,limited has a professional design service system.
9. hydraulic rod seals is designed using excellent quality materials.
10. For many years, Dms Seals Technology Co.,limited develops unceasingly and innovates unceasingly by the advanced production equipment, and the abundant technical strength.

1. Installation Recommendation

2. Installation Sizes

d e8	D H9	L D10	H
22-39	d+7.2	4.0	3.5
40-79	d+10.0	5.0	4.5
80-100	d+13.8	7.5	7.0
＞100-250	d+20.0	10.0	9.5
＞250-600	d+30.0	15.0	14.5
＞600	d+40.0	20.0	19.5

3. Application and properties

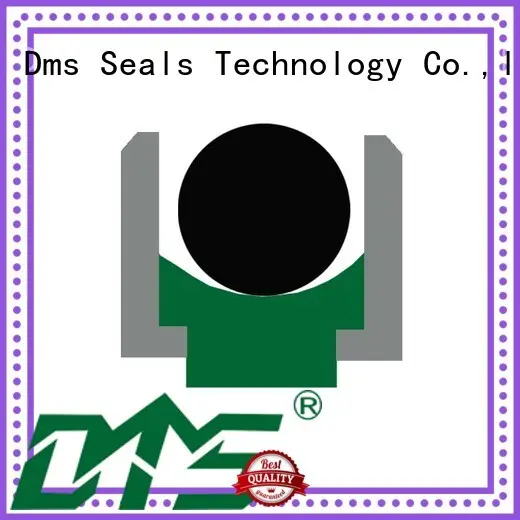

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 45MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
22 25 28	29.2 32.2 35.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI22*29.2*3.5 RDI25*32.2*3.5 RDI28*35.2*3.5
30 32 35	37.2 39.2 42.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI30*37.2*3.5 RDI32*39.2*3.5 RDI35*42.2*3.5
36 40 42	43.2 50 52	3.5 4.5 4.5	4 5 5	6 6 6	RDI36*43.2*3.5 RDI40*50*4.5 RDI42*52*4.5
45 50 55	55 60 65	4.5 4.5 4.5	5 5 5	6 6 6	RDI45*55*4.5 RDI50*60*4.5 RDI55*65*4.5
56 60 63	66 70 73	4.5 4.5 4.5	5 5 7.5	6 7 7	RDI56*66*4.5 RDI60*70*4.5 RDI63*73*4.5
65 70 72	75 80 82	4.5 4.5 4.5	7.5 7.5 7.5	7 7 7	RDI65*75*4.5 RDI70*80*4.5 RDI72*82*4.5
75 80 85	85 93.8 98.8	4.5 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI75*85*4.5 RDI80*93.8*7.0 RDI85*98.8*7.0
90 95 100	103.8 108.8 113.8	7.0 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI90*103.8*7.0 RDI95*108.8*7.0 RDI100*113.8*7.0
105 110 115	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	RDI105*125*9.5 RDI110*130*9.5 RDI115*135*9.5
120 125 130	140 145 150	9.5 9.5 9.5	10 10 10	10 10 10	RDI120*140*9.5 RDI125*145*9.5 RDI130*150*9.5

Company Features
1. As a rising star in hydraulic rod seals industry, DMS Seal Manufacturer has received more and more praises until now. The capacity for O Ring Manufacturers is big enough to supply many customers at same time. Dms Seals Technology Co.,limited has a large number of global loyal customers. Dms Seals Technology Co.,limited is currently the largest production base for o-ring seal in Asia.
2. Dms Seals Technology Co.,limited has won the big marketplace of rod seals with its strong technical base. Dms Seals Technology Co.,limited has high-quality engineers, excellent sales staff and well-trained staff. Our factory is near to the raw material source and consumer market. This reduces the transportation cost which hugely affects the cost of the production.
3. Dms Seals Technology Co.,limited aims to be a major hydraulic rod seals exporter in the home and overseas. Ask online! As a hydraulic rod seals online supplier, our goal is to bring our high quality products to the global market. Ask online! Dms Seals Technology Co.,limited aims to create a new brand for hydraulic rod seals and create a new market space. Ask online! DMS Seal Manufacturer has a great goal and is a thriving pneumatic rod seals supplier. Ask online! Dms Seals Technology Co.,limited will constantly pay attention to the commercial mode and advocate innovation spirits. Ask online!
