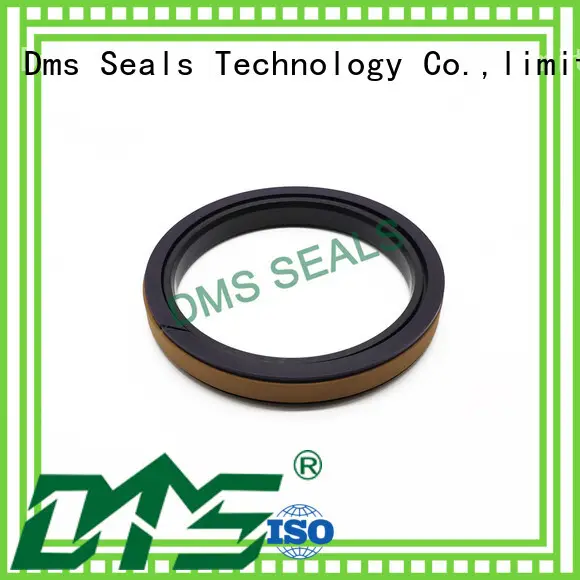

DMS Seal Manufacturer combined piston seals glyd ring for sale

Company Advantages
1. The production of DMS Seal Manufacturer piston seals is strictly in line with the hardware products workflow such as CNC machining, cutting, welding, and surface treatment.
2. The R&D of DMS Seal Manufacturer hydraulic piston seals suppliers is carried out by experienced developers who focus on providing online POS solutions based on cloud technology.
3. Absorbing the soul of the packaging design concept, DMS Seal Manufacturer hydraulic piston seals suppliers stands out for its unique design style which is carried out by our professional designers.
4. The production process of DMS Seal Manufacturer hydraulic piston seals suppliers is of efficiency. Its raw materials are extracted by automatic machines and are treated by computers.
5. The pure and natural raw ingredients of DMS Seal Manufacturer piston seals are developed by a passionate team who is dedicated to healthy makeup lifestyles.
6. The feature provided by hydraulic piston seals suppliers makes piston seals being widely applied in many different situations.
7. hydraulic piston seals suppliers makes piston seals fully applicable in the most practical parts of our life.
8. Dms Seals Technology Co.,limited thinks highly of the performance of hydraulic piston seals suppliers which is used to be economical and eco-friendly.
9. People who have used this product for 2 years say that it has many benefits including relieving stress, relaxing muscles, and cleansing the skin.
10. One of the customers says: 'I'm so delighted with this product. Excellent workmanship - it doesn't easily get affected by any erosion of the water.
11. With its strong elasticity, the product can be flexibly used in a variety of fields no matter in production or life.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Since its foundation, Dms Seals Technology Co.,limited continuously conducts independent innovation in the field of hydraulic piston seals suppliers . Now, we have become one of the top suppliers in China. Dms Seals Technology Co.,limited is considered as one of the leading producers in China. We are engaged in the development, design, and production of hydraulic cylinder piston seals . Today, Dms Seals Technology Co.,limited is privileged to connect with millions of customers all over the world with its exceptional rubber piston seals. Specializing in the manufacture of hydraulic piston seals for many years, Dms Seals Technology Co.,limited is a mature company with abundant expertise and experience.
2. DMS Seal Manufacturer has excellent technology equipped to guarantee the quality of piston seals . With the mastering of advanced technology, DMS Seal Manufacturer can produce o-ring seal with excellent performance. hydraulic piston seals has gained wide recognition for its high quality. Customers value our piston seals because our products are of superior quality and performance.
3. Achieving constant improvements in product quality and service is Dms Seals Technology Co.,limited's ultimate goal. Get info! Excellence in quality of piston seals and being professional in service are what DMS Seal Manufacturer wishes. Get info! Dms Seals Technology Co.,limited waveringly maintains our business integrity. Get info! Dms Seals Technology Co.,limited attaches great importance to the quality of piston seals and aims to be the best. Get info!
