DMS Seal Manufacturer combined piston seals with nbr or fkm o ring for sale

Company Advantages
1. DMS Seal Manufacturer pneumatic piston seals has gone through the following production process: the preparation of metal materials, cutting, welding, surface treatment, drying, and spraying.
2. DMS Seal Manufacturer piston seals has undergone a series of the assessment process in terms of its sizes (width, height, length), colors, and resistance to environmental conditions (rain, wind, snow, sand storms, etc.)
3. DMS Seal Manufacturer pneumatic piston seals is completed by considering key elements into the design, such as site appeal, location visibility, climate, culture capacity, and entertainment value.
4. DMS Seal Manufacturer piston seals is of innovative design. It is carried out by our designers who keep the trend with the newest bag market, adopt the latest popular colors and shapes.
5. The lampshade of DMS Seal Manufacturer pneumatic piston seals has undergone several fabrication processes, including CNC machining, metal forming, welding, spray painting and drying, and stamping.
6. The product features highly stable mechanical properties. It has been treated with heat or cold temperature to enhance its properties.
7. This product functions both aesthetic needs and practical functionality, integrating classic with modern culture.
8. The product features low side reactions. Some chemicals are added within it, which tend to inhibit these unwanted chemical reactions.
9. The product has a huge cooling capacity. The refrigerants used can effectively boil at a wide range of temperatures with the application or removal of pressure.
10. This energy keeping product will ease the burden on the electricity supply plants which burn either fossil fuels or nuclear fuel to generate electricity. It also helps reduce pollution caused by these fuels.
11. People do not have to worry about hygiene problems. It will not cause any disease that is caused by bacteria or fungal.
12. The product is not only decorative yet functional, adding a great appeal to any building styles. That's the reason why most architects and home designers love it.
13. The use of this product leads to lower consumption of energy, which automatically translates into significant savings on energy bills.

1. Installation Recommendation

2. Application and properties

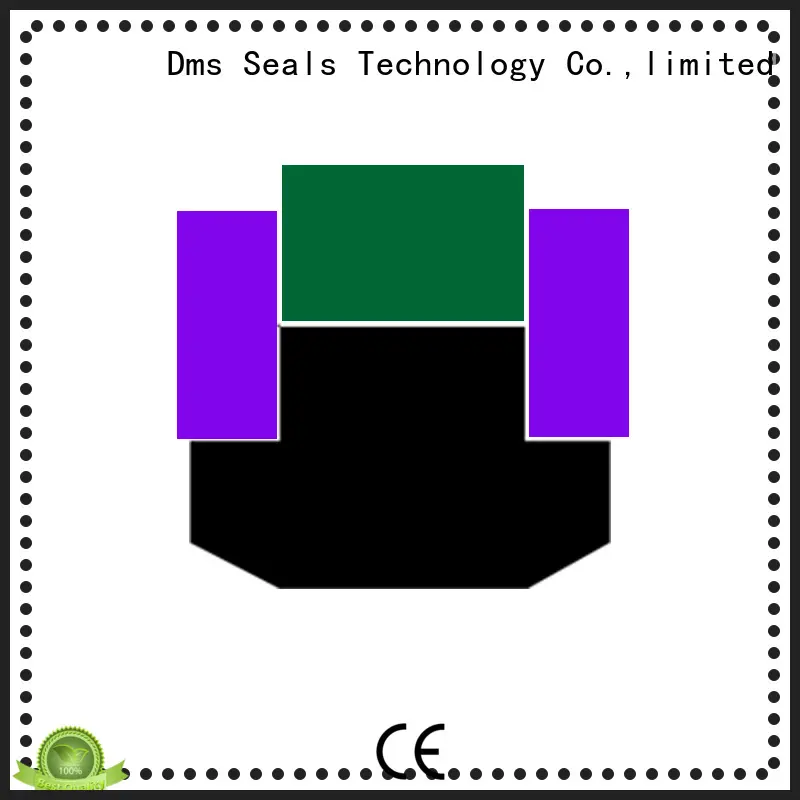

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. With years of continuous improvement, Dms Seals Technology Co.,limited is a famous supplier of pneumatic piston seals in the China market. We are now committed to going global. Dms Seals Technology Co.,limited has grown into an outstanding manufacturer after years of development, providing high quality rubber piston seals for customers overseas. Specialized in manufacturing of hydraulic piston seals , Dms Seals Technology Co.,limited is a high-tech oriented enterprise with an increasing market share both at home and abroad.
2. DMS Seal Manufacturer is outstanding for its high end piston seals . Dms Seals Technology Co.,limited's designers have a deep understanding of hydraulic piston seals industry. In order to win the leading position in the o-ring seal market, DMS Seal Manufacturer invested a lot of money to strengthen its technical strength to produce high quality products.
3. DMS Seal Manufacturer wishes to be one of the leading piston seals supplier in the industry. Inquiry! DMS Seal Manufacturer hopes to become an highly influential enterprise to produce piston seals . Inquiry! Dms Seals Technology Co.,limited is committed to providing the most advanced technology and piston seals products for modern life. Inquiry! Increasing number of customers at home and abroad have thought highly of the service of DMS Seal Manufacturer brand. Inquiry! Favored by customers is the wish for DMS Seal Manufacturer in the long run. Inquiry!
