DMS Seal Manufacturer Custom hydraulic piston seals sizes with nbr or fkm o ring for sale
1. DMS Seal Manufacturer has to go through both physical and mechanical properties tests including its stiffness, thickness, tear resistance, and inflatable performance.
2. The production of DMS Seal Manufacturer hydraulic piston seals sizes is in line with the highest standards in the international rubber and plastic industry in terms of extruding, molding, die cutting, and laser cutting.
3. The tech pack of DMS Seal Manufacturer offered by customers greatly provides a solid foundation to get production started and helps to minimize errors in the production process.
4. The production process of DMS Seal Manufacturer hydraulic piston seals sizes has been greatly improved, from the bulb fabrication, lampshade surface treatment, performance testing, and assembly.
5. DMS Seal Manufacturer is professionally designed. It is designed by our professional designers who have mastered the elements and principles of bag design and color matching knowledge.
6. It performs well in terms of hygroscopicity. During the material processing, the fabric was tested by desiccant or evaporation method, and the results showed that the moisture permeability in the fabric was good.
7. The product is available in a variety of colors, including all standards of colors for traditional bedding.
8. This product is highly durable and resistant to stains and fading. It will look new even after years of use.
9. The product has won the trust and approval of its customers and is promising in the future application.
10. We will work continuously to produce more innovative products to expand market application needs.
11. The product is deeply favored by customers throughout the world and its market share is growing.
12. The product is highly acclaimed in both national and the global market in the industry.
Groove Diameter DN H9 | Groove Diameter | Groove Width | Radius | Radial Clearance S max. | O-Ring Cross Section | X-Ring Seal Cross Section | |||
Standard Application | Light Application | d1 h9 | L1+0.2 | R1 | 10MPa | 20MPa | 30MPa | d2 | W |
15 - 39.9 | 40 - 79.9 | DN - 11.0 | 4.2 | 1.0 | 0.25 | 0.15 | 0.10 | 3.53 | 1.78 |
40 - 79.9 | 80 - 132.9 | DN - 15.5 | 6.3 | 1.3 | 0.3 | 020 | 0.15 | 5.33 | 1.78 |
80 - 132.9 | 133 - 252.9 | DN - 21.0 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
133 - 252.9 | -- | DN - 24.5 | 8.1 | 1.8 | 0.3 | 0.20 | 0.15 | 7.00 | 2.62 |
253 - 462.9 | -- | DN - 28.0 | 9.5 | 2.5 | 0.45 | 0.30 | 0.25 | 8.40 | 3.53 |
463 - 700 | -- | DN - 35.0 | 11.5 | 3.0 | 0.55 | 0.40 | 0.35 | 10.00 | 5.33 |
Application and properties
Apply to the working condition of fast speed, high pressure, and the necessary pressure keeping. Recommended for double-acting pistons as piston-type energy storage, supporting cylinder and positional cylinder. Double safety with low friction and high elasticity, good dynamic and static sealing performance, larger extrusion clearances can be allowed, at the same time with the function of holding pressure, less leakage in the hydraulic cylinder. Simple groove, small installation space, excellent sliding performance, no crawling phenomenon.

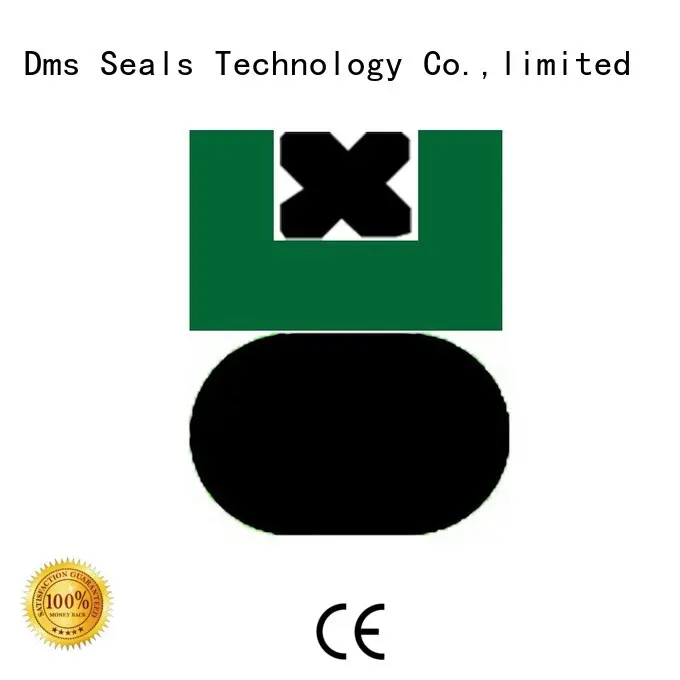

Standard materials
Sealing ring: filled PTFE
O-Ring: NBR / FKM
X-Ring: NBR / FKM
Working Conditions | ||||
Diameter Range | Pressure Range | Temperature Range | Speed | Medium |
3-1600mm | 0-40MPa | -30℃+200℃ | 2 m/s | hydraulic oil, flame retardant liquid, water and others |
Bore Dia. | Groove Dia. | Groove Width | Order No. | O-Ring Dimension |
d h9 | D1 H9 | L1+0.2 | ||
70 | 59 | 4.2 | DAQ70*59*4.2 | 56.74*3.53 |
80 | 64.5 | 6.3 | DAQ80*64.5*6.3 | 62.87*5.33 |
85 | 64 | 8.1 | DAQ85*64*8.1 | 63*7.0 |
95 | 79.5 | 6.3 | DAQ95*79.5*6.3 | 78.74*5.33 |
100 | 79 | 8.1 | DAQ100*79*8.1 | 78*7.0 |
110 | 94.5 | 6.3 | DAQ110*94.5*6.3 | 91.44*5.33 |
115 | 94 | 8.1 | DAQ115*94*8.1 | 93*7.0 |
125 | 109.5 | 6.3 | DAQ125*109.5*6.3 | 107.32*5.33 |
130 | 109 | 8.1 | DAQ130*109*8.1 | 108*7.0 |
150 | 129 | 8.1 | DAQ150*129*8.1 | 126.37*7.0 |
180 | 159 | 8.1 | DAQ180*159*8.1 | 158.12*7.0 |
210 | 189 | 8.1 | DAQ210*189*8.1 | 183.52*7.0 |
240 | 219 | 8.1 | DAQ240*219*8.1 | 215.27*7.0 |
Company Features
1. Known as a professional hydraulic piston seals sizes manufacturer, Dms Seals Technology Co.,limited has a wide market share. As a large company, Dms Seals Technology Co.,limited mainly focuses on pneumatic piston seals . Dms Seals Technology Co.,limited has a number of modern production lines to produce high quality hydraulic cylinder piston seals .
2. The factory thoroughly implements a quality management system. We carry out an inspection for all the sourced materials, do daily routine measurement records for each production step, and make sure every piece of products is finely inspected. The factory carries out strict quality and production management control systems. These systems require all of the incoming materials, parts, production techniques, and packaging ways to be tested and controlled to meet standards. We have the best team! Our design and scheduling staff are highly experienced and together with the flexibility of our manufacturing team, they enable us to deliver high-quality products to our customers on time. We have repleted with a large customer base. These customers have been maintaining stable business cooperations with us since their first order in our company. We have a team of quality control professionals. They ensure the successful execution of quality control through performing tests of raw materials, packaging materials, bulk products, and finished products.
3. DMS Seal Manufacturer will constantly creating profits for its customers. Contact us! By following the professional service process, DMS Seal Manufacturer always provide the best service for customers. Contact us! Good corporate culture is an important guarantee for the development of DMS Seal Manufacturer. Contact us! Professional service for hydraulic piston seals suppliers can be fully guaranteed. Contact us!
DMS Seal Manufacturer Custom hydraulic piston seals sizes with nbr or fkm o ring for sale
hydraulic piston seals sizes
