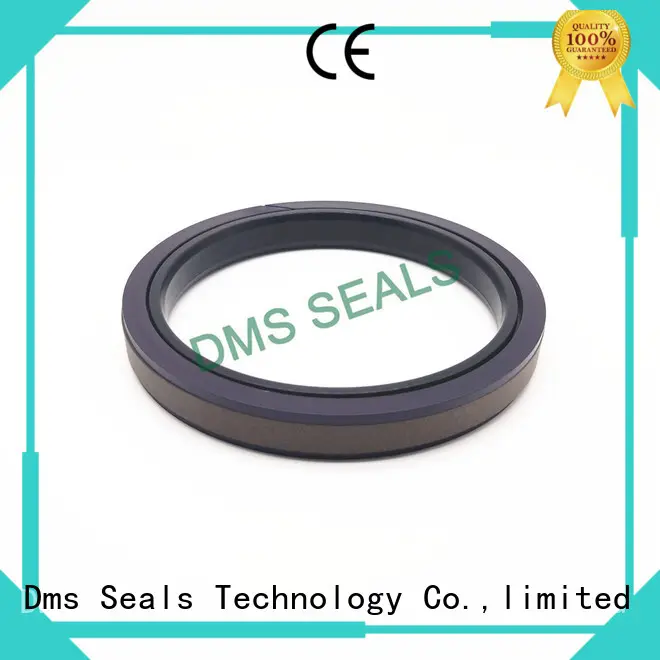

DMS Seal Manufacturer glyd ring o ring for piston and hydraulic cylinder

Company Advantages
1. In the design of DMS Seal Manufacturer piston o ring , we pay close attention to its aesthetics.
2. DMS Seal Manufacturer piston o ring is manufactured under the supervision of our highly experienced professionals in complete compliance with set industry standards using the high-grade material.
3. DMS Seal Manufacturer glyd ring has many innovative and practical designs.
4. DMS Seal Manufacturer piston o ring is manufactured in strict accordance with international standards.
5. The production process of DMS Seal Manufacturer glyd ring complies with the international standards.
6. This product is somewhat chemical resistant. It has passed the chemical resistance testing for oils, acids, bleaches, tea, coffee, and so forth.
7. This product is safe enough. In the processing, threads used to create the fabric is not treated with any chemical and contains no harmful substances.
8. The product has the desired durability. It is made of fabrics with fine yarn. The yarn is tightly bound to make the fabric stronger and more durable.
9. Being recognized by customers, this product has shown a great and sustainable competitive advantage.
10. The product has attracted a large number of customers, prove to be a hot product in the market.
11. The provided product is popular and widely used in the field.
12. This product far exceeds other products in terms of performance/price ratio.
13. The product is popular in both the domestic and international market for its broad application prospects.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17

Company Features
1. Dms Seals Technology Co.,limited is one of Chinese leading manufacturers for glyd ring. The development of DMS Seal Manufacturer benefits from the piston seals . Dms Seals Technology Co.,limited has outstanding talents and technology advantages. Dms Seals Technology Co.,limited is a company that emphasizes development and quality of hydraulic cylinder piston seals . There are many series and items available for our rod seal .
2. Located in an advantageous geographical position, with accessibility to the port, our factory ensures high quality and shorter lead times. We are proud to have an experienced workforce. From choosing precise raw materials to executing the most efficient production processes, they have an excellent track record of quality control. Our export share occupies 80% to 90%, mainly to countries like North America, Europe, and the Mid East. We have helped our customers stay in a superior position in their market. We have a sales and marketing team scaled for the global market. With their years of experience in the market and wide sales network, they manage to deliver our products to the rest of the world.
3. Dms Seals Technology Co.,limited has a simple vision of delivering exceptional value to our customers. Get an offer! Embracing the enterprise culture of people-oriented is good for the development of DMS Seal Manufacturer. Get an offer! To enhance the quality of the staff, DMS Seal Manufacturer decided to advocate its enterprise culture. Get an offer! Dms Seals Technology Co.,limited will insist on the good principle of 'creative all for you'. Get an offer!

DMS Seal Manufacturer glyd ring o ring for piston and hydraulic cylinder

glyd ring

Type:
