DMS Seal Manufacturer high quality hydraulic rod seals Supply for pressure work and sliding high speed occasions

Company Advantages
1. DMS Seal Manufacturer [ undergoes a series of the complicated production processes including washing, photoetching, stripping of photoresist and coating.
2. DMS Seal Manufacturer is manufactured by using a combination of fiber optic and CO2 laser cutting together with the extensive line of brake presses. [卖点、特色句
3. DMS Seal Manufacturer is created throughout a series of production processes which include raw material extraction, raw material process, and quality inspections.
4. The life cycle of this product has been greatly extended.
5. The product is promised with high quality and long service life.
6. The application of inspection equipment throughout all stages of the production ensures the product is 100% qualified.
7. The product is bound to have a bright application prospect in the industry.
8. The product is rather competitive in the market and can be widely applied in many fields.
9. Since its establishment, Dms Seals Technology Co.,limited has won praises from many users.

1. Installation Recommendation

2. Installation Sizes

d e8	D H9	L D10	H
22-39	d+7.2	4.0	3.5
40-79	d+10.0	5.0	4.5
80-100	d+13.8	7.5	7.0
＞100-250	d+20.0	10.0	9.5
＞250-600	d+30.0	15.0	14.5
＞600	d+40.0	20.0	19.5

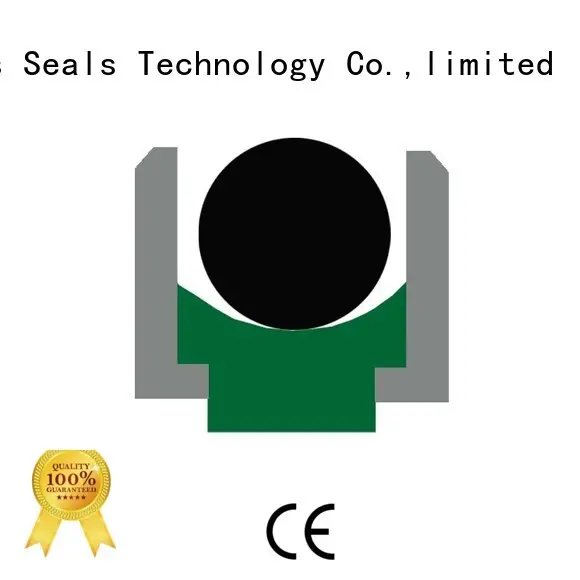

3. Application and properties

L-Ring support and guide to ensure a tight sealing environment. Easy installation, wear resistance, anti extrusion, low friction, non stick slip phenomenon.



4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

L-Ring: POM / PA

5. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 45MPa	-30℃ +100℃	1 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

d e8	D1 H9	H	L D10	e	Order No.
22 25 28	29.2 32.2 35.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI22*29.2*3.5 RDI25*32.2*3.5 RDI28*35.2*3.5
30 32 35	37.2 39.2 42.2	3.5 3.5 3.5	4 4 4	6 6 6	RDI30*37.2*3.5 RDI32*39.2*3.5 RDI35*42.2*3.5
36 40 42	43.2 50 52	3.5 4.5 4.5	4 5 5	6 6 6	RDI36*43.2*3.5 RDI40*50*4.5 RDI42*52*4.5
45 50 55	55 60 65	4.5 4.5 4.5	5 5 5	6 6 6	RDI45*55*4.5 RDI50*60*4.5 RDI55*65*4.5
56 60 63	66 70 73	4.5 4.5 4.5	5 5 7.5	6 7 7	RDI56*66*4.5 RDI60*70*4.5 RDI63*73*4.5
65 70 72	75 80 82	4.5 4.5 4.5	7.5 7.5 7.5	7 7 7	RDI65*75*4.5 RDI70*80*4.5 RDI72*82*4.5
75 80 85	85 93.8 98.8	4.5 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI75*85*4.5 RDI80*93.8*7.0 RDI85*98.8*7.0
90 95 100	103.8 108.8 113.8	7.0 7.0 7.0	7.5 7.5 7.5	7 7 7	RDI90*103.8*7.0 RDI95*108.8*7.0 RDI100*113.8*7.0
105 110 115	125 130 135	9.5 9.5 9.5	10 10 10	10 10 10	RDI105*125*9.5 RDI110*130*9.5 RDI115*135*9.5
120 125 130	140 145 150	9.5 9.5 9.5	10 10 10	10 10 10	RDI120*140*9.5 RDI125*145*9.5 RDI130*150*9.5

Company Features
1. Headquartered in China, Dms Seals Technology Co.,limited ranks highly in the business reputation. We are a renowned company specializing in the production of . As a well-known China-based company, Dms Seals Technology Co.,limited offers precise customization service of hydraulic rod seals in the domestic market. Dms Seals Technology Co.,limited gains a firm foothold in the market relying on the ability in R&D and manufacturing .
2. The hydraulic seals ppt is made by highly proficient technology. Dms Seals Technology Co.,limited has strong technical force and advanced production equipment, and a sound quality management system. Being professional in producing rod seal catalogue , DMS Seal Manufacturer owns highly developed technology.
3. We have demonstrated sound environmental practices for many years. We have been focused on carbon footprint reductions and product end-of-life recycling. Adhering to the principle of "credit, superior quality, and competitive price", we are now looking forward to deeper cooperation with overseas customers and expand more selling channels. Our philosophy is "Honor the contract and keep promises; Searching for development with high quality; Serving guests with credibility". We are eagerly looking forward to cooperating with customers.
