DMS Seal Manufacturer pneumatic piston seals glyd ring for light and medium hydraulic systems

Company Advantages
1. The quality check for DMS Seal Manufacturer is strictly carried out. It will be inspected by machines or by visual mainly in terms of board thickness, flatness, warping degree, veneer's paint film, etc.
2. DMS Seal Manufacturer pneumatic piston seals has achieved quality management system certification in accordance with both domestic and international standards in regards to porcelain manufacture.
3. DMS Seal Manufacturer pneumatic piston seals satisfies the general requirements for the safety of household and similar electrical appliances. It will be tested for safety issues including insulation, electric leakage, and short circuit.
4. The design of DMS Seal Manufacturer adopts an advanced software program. This software is able to calculate panel material quantities, manufacture measurements, and cost of the partition wall system.
5. This product is under the stringent observation of our quality controllers.
6. The product has high performance up to the industry advanced level.
7. Its quality is significantly improved under real-time monitoring of the QC team.
8. By adopting advanced technology, the quality of this product can be assured.
9. The high quality, excellent performance, and long service life make the product stand out in the market.
10. Since it is highly appealing, both aesthetically, and functionally, this product is widely preferred by homeowners, builders, and designers.
11. This product is antimicrobial and has made it possible to achieve the allergen-free sleep sanctuary of dreams without the cold hospital feel.
12. Its long life is one of the biggest selling points of this product. People does not have to replace the bulb because it does not often burn out.

1. Installation Recommendation

2. Application and properties

Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

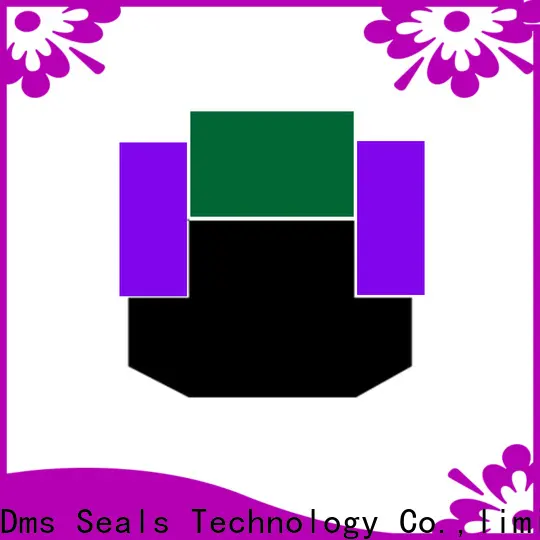

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
50 - 350mm	0 - 50MPa	-30℃ +100℃	1.5 m/s	hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions			L+0.2	Order No.
D1	dN	H
50 55 60	36 41 46	8.5 8.5 8.5	9 9 9	SPGW50*36*8.5 SPGW55*41*8.5 SPGW60*46*8.5
63 65 70	48 50 55	10.5 10.5 10.5	11 11 11	SPGW63*48*10.5 SPGW65*50*10.5 SPGW70*55*10.5
75 80 85	60 65 70	10.5 10.5 10.5	11 11 11	SPGW75*60*10.5 SPGW80*65*10.5 SPGW85*70*10.5
90 95 100	75 80 85	10.5 10.5 12	11 11 12.5	SPGW90*75*10.5 SPGW95*80*10.5 SPGW100*85*12
105 110 115	90 95 100	12 12 12	12.5 12.5 12.5	SPGW105*90*12 SPGW110*95*12 SPGW115*100*12
120 125 130	105 102 107	12 15.5 15.5	12.5 16 16	SPGW120*105*12 SPGW125*102*15.5 SPGW130*107*15.5
135 140 145	112 117 122	15.5 15.5 15.5	16 16 16	SPGW135*112*15.5 SPGW140*117*15.5 SPGW145*122*15.5
150 155 160	127 132 137	15.5 15.5 15.5	16 16 16	SPGW150*127*15.5 SPGW155*132*15.5 SPGW160*137*15.5
165 170 180	142 147 157	15.5 15.5 15.5	16 16 16	SPGW165*142*15.5 SPGW170*147*15.5 SPGW180*157*15.5
185 190 200	162 167 177	15.5 15.5 15.5	16 16 16	SPGW185*162*15.5 SPGW190*167*15.5 SPGW200*177*15.5
210 220 225	187 197 202	15.5 15.5 17	16 16 17.5	SPGW210*187*15.5 SPGW220*197*15.5 SPGW225*202*15.5
230 240 250	207 217 222	17 17 17	17.5 17.5 17.5	SPGW230*207*15.5 SPGW240*217*15.5 SPGW250*222*17
260 270 280	232 242 252	17 17 17	17.5 17.5 17.5	SPGW260*232*17 SPGW270*242*17 SPGW280*252*17
300 320 350	272 292 322	17 17 17	17.5 17.5 17.5	SPGW300*272*17 SPGW320*292*17 SPGW350*322*17
