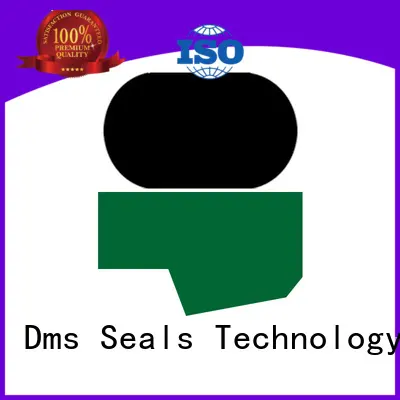

DMS Seal Manufacturer ptfe O Ring Manufacturers with nbr or fkm o ring for pressure work and sliding high speed occasions 1

DMS Seal Manufacturer ptfe O Ring Manufacturers with nbr or fkm o ring for pressure work and sliding high speed occasions 2

DMS Seal Manufacturer ptfe O Ring Manufacturers with nbr or fkm o ring for pressure work and sliding high speed occasions

Diameter Range:

3-1600mm

Pressure Range:

0-60MPa

Temperature Range:

-45℃+200℃

Speed:

15 m/s

Medium:

hydraulic oil, flame retardant liquid, water, gas

Inquiry

Company Advantages
1. DMS Seal Manufacturer O Ring Manufacturers represents the finest workmanship in the market as it is manufactured using the leading technology. As a modern sealing technology company, DMS Seal manufacturer has a wealth of experience
2. Dms Seals Technology Co.,limited keeps service as top place to satisfy our customers. To reduce costs with high-efficiency work is the DMS's purpose
3. The product has the advantage of stable mechanical properties. Having been treated under extremely cold temperatures, its mechanical components are tensile enough to withstand extreme industrial conditions. Seal we produced has applications in a wide range of fields

1. Installation Recommendation

2. Installation Sizes

Rod Diameter d_N h9			Groove Diameter	Groove Width	Radius	Radial Clearance S max.			O-Ring Cross-Section
Standard Application	Light Application	Heavy Duty Application	D₁ H9	L₁+0.2	R₁	10MPa	20MPa	40MPa	d₂
3-7.9	8-18.9	-	d_N+4.9	2.2	0.4	0.3	0.20	0.15	1.78
8-18.9	19-37.9	-	d_N+7.3	3.2	0.6	0.4	0.25	0.15	2.62
19-37.9	38-199.9	8-18.9	d_N+10.7	4.2	1.0	0.4	0.25	0.20	3.53
38-199.9	200-255.9	19-37.9	d_N+15.1	6.3	1.3	0.5	0.30	0.20	5.33
200-255.9	256-649.9	38-199.9	d_N+20.5	8.1	1.8	0.6	0.35	0.25	7.00
256-649.9	650-999.9	200-255.9	d_N+24.0	8.1	1.8	0.6	0.35	0.25	7.00
650-999.9	≥1000.0	256-649.9	d_N+27.3	9.5	2.5	0.7	0.50	0.30	8.40
≥1000.0	-	650-999.9	d_N+38.0	13.8	3.0	1.0	0.70	0.60	12.00

3. Application and properties

Applicable to high and low speed reciprocating motion and high pressure system cylinder rod sealing. Good dimensional stability, not affected by temperature, low friction, strong corrosion resistance, could work in the situation with or without lubrication, easy installation. Meet the standards of GB/T 15242.1-94 and GB/T 15242.3-94.

4. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

5. Working Conditions

Working Conditions
Diameter Range	Pressure Range	Temperature Range	Speed	Medium
3 - 1600mm	0 - 60MPa	-45℃ +200℃	15 m/s	hydraulic oil, flame retardant liquid, water, gas

6. Installation Dimensions

Rod Dia.

Groove Dia.

Groove Width

Order No.

O-Ring Dimensions

d_N h9

D₁ H9

L₁+0.2

27.3

30.7

29.3

3.2

4.2

3.2

GSJ20*27.3*3.2

GSJ20*30.7*4.2

GSJ22*29.3*3.2

21.89*2.62

23.39*3.53

23.47*2.62

32.7

32.3

35.7

4.2

3.2

4.2

GSJ22*32.7*4.2

GSJ25*32.3*3.2

GSJ25*35.7*4.2

26.57*3.53

26.64*2.62

29.74*3.53

38.7

40.7

42.7

4.2

GSJ28*38.7*4.2

GSJ30*40.7*4.2

GSJ32*42.7*4.2

31.34*3.53

34.52*3.53

36.09*3.53

45.7

46.7

53.1

4.2

6.3

GSJ35*45.7*4.2

GSJ36*46.7*4.2

GSJ38*53.1*6.3

37.69*3.53

40.87*3.53

43.82*5.33

50.7

55.1

57.1

4.2

6.3

GSJ40*50.7*4.2

GSJ40*55.1*6.3

GSJ42*57.1*6.3

44.04*3.53

43.82*5.33

46.99*5.33

55.7

60.1

60.7

4.2

6.3

4.2

GSJ45*55.7*4.2

GSJ45*60.1*6.3

GSJ50*60.7*4.2

47.22*3.53

50.17*5.33

53.57*3.53

65.1

70.1

66.7

6.3

4.2

GSJ50*65.1*6.3

GSJ55*70.1*6.3

GSJ56*66.7*4.2

56.52*5.33

59.69*5.33

59.92*3.53

71.1

76.5

75.1

6.3

8.1

6.3

GSJ56*71.1*6.3

GSJ56*76.5*8.1

GSJ60*75.1*6.3

59.69*5.33

62.87*6.99

66.04*5.33
